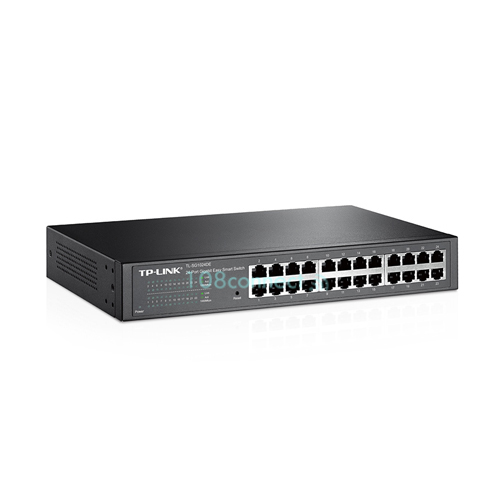

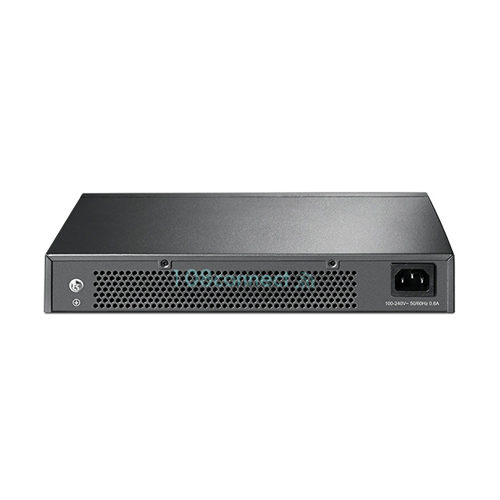

TP-LINK TL-SG1024DE 24-Port Smart Gigabit Switch

 เพิ่มเมื่อ: 09/03/2017
 แก้ไขล่าสุด: 06/05/2019
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
๋JetStream 24-Port Smart Gigabit Switch(สินค้ารับประกัน ตลอดอายุการใช้งาน)
4,190.00 บาท

TP-LINK TL-SG1024DE

TL-SG1024DE JetStream 24-Port Smart Gigabit Switch

 - 24 10/100/1000Mbps ports provide instant large file transfers.

- Innovative energy-efficient technology reduces power consumption by up to 40%.

- IEEE 802.3x flow control provides reliable data transfers.

- 10K Jumbo frame improves performance of large data transfers.

- Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics.

- Port and tag-based QoS enable smooth latency-sensitive traffic.

- Abundant VLAN features improve network security via traffic segmentation.

- IGMP Snooping optimizes multicast applications.



Standards and Protocols

- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p



Interface

- 24 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX



Network Media

- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

- EIA/TIA-568 100Ù STP (maximum 100m)

- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

- EIA/TIA-568 100Ù STP (maximum 100m)

- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

- EIA/TIA-568 100Ù STP (maximum 100m)



Dimensions (W X D X H)

- 11.6*7.1*1.7 in. (294*180*44 mm)



Fan Quantity

- Fanless



Power Supply

- 100-240VAC, 50/60Hz


Performance

- Switching Capacity 48Gbps

- MAC Address Table 8K

- Packet Buffer Memory 512KB

- Packet Forwarding Rate 35.7Mpps

- Jumbo Frame 10240Bytes


Quality of Service

- Support Port Based/802.1p Based priority

- Support 4 priority queues

- Rate Limit

- Storm Control


L2 Features

- IGMP Snooping

- Link Aggregation

- Port Mirroring

- Cable Diagnostics

- Loop Prevention



VLAN

- Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

- MTU/Port/Tag VLAN


Transmission Method

- Store-And-Forward


Certification

- FCC, CE


Package Contents

- TP-LINK TL-SG1024DE Jetstream Switch, Power Cord, Installation Guide, Resource CD,

  Rackmount Kit, Rubber Feet


System Requirements

- Microsoft Windows 98SE, NT, 2000, XP, Vista Windows 7 or Windows 8, MAC

- S, NetWare, UNIX or Linux.


Environment

- Operating Temperature: 0C~40C (32F~104F)

- Storage Temperature: -40C~70C (-40F~158F)

- Operating Humidity: 10%~90% non-condensing

- Storage Humidity: 5%~90% non-condensing
