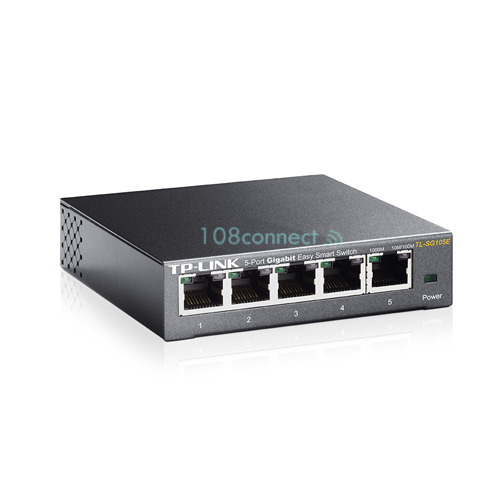

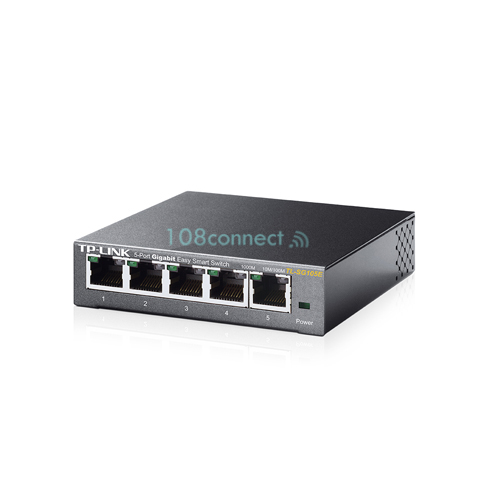

TP-LINK TL-SG105E 5-Port Desktop Gigabit Smart Switch

 เพิ่มเมื่อ: 09/03/2017
 แก้ไขล่าสุด: 06/05/2019
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
5-Port Gigabit Desktop Easy Smart Switch, 5 10/100/1000Mbps RJ45 ports, MTU/Port/Tag-based VLAN, QoS, IGMP Snooping(สินค้ารับประกัน ตลอดอายุการใช้งาน)
1,050.00 บาท

TP-LINK TL-SG105E

TL-SG105E 5-Port Desktop Gigabit Smart Switch

- 5x 10/100/1000 Gigabit Ports provide instant large file transfers.

- lnnovative energy-efficient technology reduces power consumption by up to 75%.

- IEEE 802.3x flow control provides reliable data transfers.

- 16K Jumbo frame improves performance of large data transfers.

- Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics.

- Port and tag-based QoS enable smooth latency-sensitive traffic.

- Abundant VLAN features improve network security via traffic segmentation.

- IGMP Snooping optimises multicast applications.

- Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility.



Standards and Protocols

- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p



Interface

- 5 10/100/1000Mbps RJ45 Ports

- AUTO Negotiation/AUTO MDI/MDIX



Network Media

- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

- EIA/TIA-568 100O STP (maximum 100m)

- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

- EIA/TIA-568 100O STP (maximum 100m)

- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

- EIA/TIA-568 100O STP (maximum 100m)


Fan Quantity

- Fanless



Dimensions (W X D X H)

- 3.9 * 3.9 *1.0 in. (100 * 98 *25 mm)



Power Supply

- 100-240VAC, 50/60Hz



MAC Address Table

- 8K


Packet Buffer Memory

- 2Mb


Packet Forwarding Rate

- 7.4Mpps



Jumbo Frame

- 16KB


Quality of Service

- Support Port Based/802.1p Based priority

- Support 4 priority queues

- Rate Limit

- Storm Control



L2 Features

- IGMP Snooping

- Link Aggregation

- Port Mirroring

- Cable Diagnostics

- Loop Prevention


VLAN

- Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

- MTU/Port/Tag VLAN



Transmission Method

- Store-And-Forward


Certification

- FCC, CE, RoHS



Package Contents

- TP-LINK TL-SG105E switch

- Power Cord

- Installation Guide

- Resource CD

- Rubber Feet


System Requirements

- Microsoft Windows XP, Vista Windows 7 or Windows 8, MAC OS, NetWare, UNIX or Linux.



Environment

- Operating Temperature: 0C~40C (32F~104F)

- Storage Temperature: -40C~70C (-40F~158F)

- Operating Humidity: 10%~90% non-condensing

- Storage Humidity: 5%~90% non-condensing


Weight

- 0.375kg
