PLANET POE152S Power over Ethernet Gigabit Ethernet (5V&12V)

 เพิ่มเมื่อ: 20/06/2013
 แก้ไขล่าสุด: 14/05/2019
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949

POE152S IEEE 802.3af Power over Ethernet Splitter-End-Span for Gigabit Ethernet (5V&12V) (สินค้ารับประกัน 3 ปี)
1,190.00 บาท

Planet POE152S

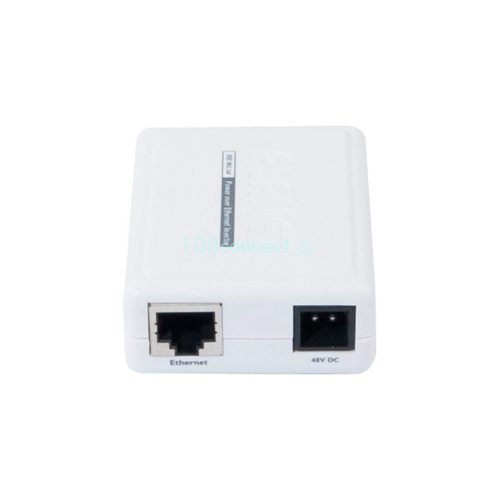

POE152S IEEE 802.3af Power over Ethernet Splitter-End-Span for Gigabit Ethernet (5V&12V)

Complies with IEEE 802.3af Power over Ethernet, IEEE 802.3 / 802.3u / 802.3ab 10/100/1000Base-T Ethernet standard

Splits the 48V DC power over RJ-45 Ethernet cable into different DC output

LED indicators for power input status

Deployment distance up to 100 meters

Two adjustable output voltage options (5V/2A, 12V/1A) to fit various devices

Auto-detect of IEEE 802.3af PoE equipments to protect devices from being damaged by incorrect installation

Works with EIA568, category 5/5e/6, 2/4-pair cables for 10Base-T or 100Base-TX and 1000Base-T





Hardware Specification
Hardware version version 2
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3ab 10/100/1000Base-T
IEEE 802.3af Power over Ethernet
Ethernet Connector 2 x RJ-45 (1 for Data + DC input, 1 for Data output)
Data Rate 10/100/1000Mbps (vary on Ethernet device attached)
DIP Switch 5VDC / 12VDC output voltage
Number of Device can be powered 1
Ethernet Cable TIA / EIA-568, Category 5/5e/6 cable
LED Indicator 1 x PoE ready / in-use
Operating Environment 0~50 Degree C, 5~90%RH
Storage Environment -10~70 Degree C, 5~90%RH
Dimension (W x D x H) 73 x 55 x 24 mm
Weight 50g
Emission FCC Class A, CE mark
Standard Compliance

IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3af Power over Ethernet
