TP-LINK TL-WA801N 300Mbps Wireless-N Access Point with Passive PoE, Antenna 2*5dBi

 เพิ่มเมื่อ: 03/03/2013
 แก้ไขล่าสุด: 05/01/2021
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
TL-WA801N 2.4GHz 300Mbps Wireless-N Access Point with Passive PoE, Antenna 2*5dBi(สินค้ารับประกัน ตลอดอายุการใช้งาน)
890.00 บาท

 TP-LINK  TL-WA801N

TL-WA801N 2.4GHz 300Mbps Wireless-N Access Point with PoE

Wireless N speed up to 300Mbps makes it ideal for bandwidth consuming or interruption sensitive applications like video streaming, online gaming and voice over Internet

MIMO™ technology provides robust high-bandwidth wireless Tx/Rx capability at further range

CCA™ improves wireless performance while automatically avoiding channel conflict

Supports multiple operation modes (Access Point, Multi-SSID, Client, Universal/WDS Repeater, Bridge with AP)

Easily setup a WPA encrypted secure connection at a push of the WPS button

Supports Wi-Fi Multimedia (WMM) assures the quality of VoIP and multimedia streaming

Up to 30 meters (100 feet) of flexible deployment with included Passive Power over Ethernet Injector

Up to 4 SSIDs and VLAN support, it allows networks administrator to segregate different services or applications to different designated users

WPA/WPA2 encryptions provide your network with active defense against security threats

Backward compatible with 802.11b/g products

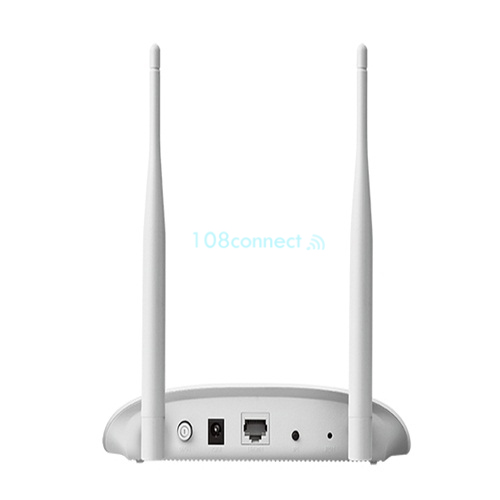

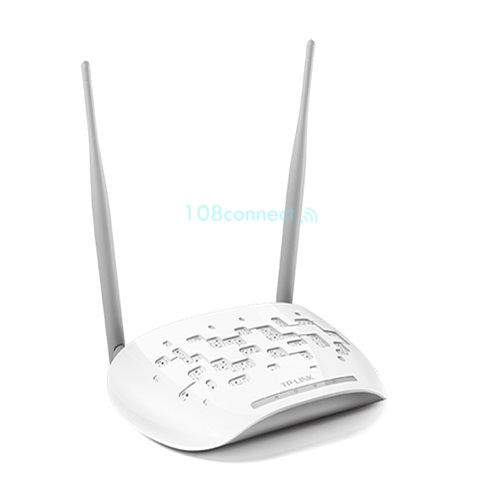

External detachable antennas allow for better alignment and stronger antenna upgrades

Wall mounted available, also can be placed horizontally on a table or desk



Specifications



HARDWARE FEATURES
Interface One 10/100M Ethernet Port(RJ45)
Support Passive PoE
Button Power On/Off Button
WPS Button
Reset Button
External Power Supply 9VDC / 0.85A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 7.1 ×4.9× 1.4 in. (181 ×125 ×36mm)
Antenna Type 2*5dBi Detachable Omni Directional (RP-SMA)
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
EIRP <20dBm(EIRP)
Reception Sensitivity 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Modes AP Mode
Multi-SSID Mode
Client Mode
Repeater Mode (WDS/Universal)
Bridge with AP Mode
Wireless Functions Enable/Disable Wireless Radio
WDS Bridge
MAC Address Filter
Wireless Security 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Quality of Service WMM
Management SNMP
Advanced Functions Up to 30 meters Passive PoE is supported



OTHERS
Certification CE, FCC, RoHS
Package Contents Wireless Access Point TL-WA801ND
2 Detachable Omni directional antennas
Power supply unit
Passive PoE Power Injector
Resource CD
Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7,
MAC OS, NetWare, UNIX or Linux.
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
