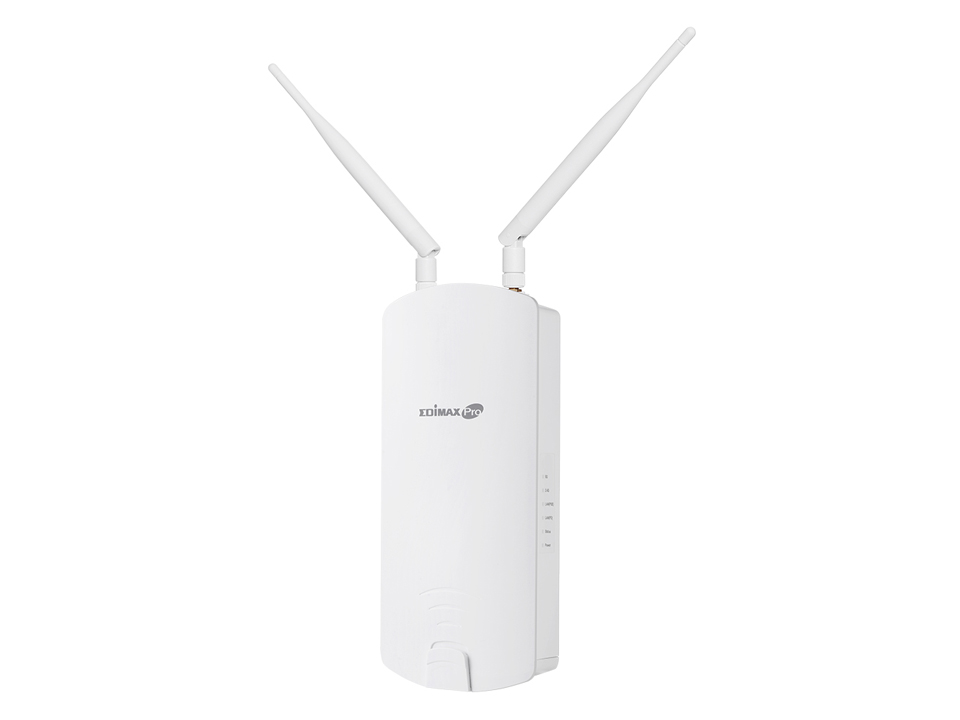

EDIMAX OAP1300 2 x 2 AC Dual-Band Outdoor PoE Access Point

 เพิ่มเมื่อ: 16/02/2020
 แก้ไขล่าสุด: 09/06/2020
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949

OAP1300 2 x 2 AC Dual-Band Outdoor PoE Access Point Powerful Outdoor Solution with High Speed AC1300 for Modern Business(สินค้ารับประกัน 1 ปี)
7,500.00 บาท


OAP1300 2 x 2 AC Dual-Band Outdoor PoE Access Point Powerful Outdoor Solution with High Speed AC1300 for Modern Business

- รองรับความเร็วสูงสุดในย่านความถี่ 2.4 GHz 400Mbps และ ย่านความถี่ 5GHz 867Mbps (กำลังส่งไกล)

- กำลังส่งสูงสุดถึง 26 dBm

- สามารถติดตั้งภายนอกอาคาร

- มาพร้อม 2 Port LAN 10/100/1000bps

- รองรับการจ่ายไฟผ่านสายแลน(POE)


- 802.11ac Wave 2 AC1300 High Speed Dual-Band

- Multi-Device (MU-MIMO)

- Easy Installation

- IP56-rated, Rugged Construction

- Designed for High Density Usage

- Multiple SSIDs for Security Management

- Fast Roaming

- Wide Coverage & High Sensitivity

- Seamless Mobility

- Power over Ethernet In/Out

- Built-in Lighting Arrester

- Built-In RADIUS Server

- Central Management

- Upgradeable firmware to OAP1300 Office +1 to works with Office 1-2-3 Wi-Fi System Master AP


802.11ac Wave 2 High Speed Dual-Band

IEEE 802.11ac concurrent dual-band with 1300Mbps wireless speed.

Multi-Device (MU-MIMO)

Efficient MU-MIMO (Multiple User - Multiple Input Multiple Output) technology serves multiple devices simultaneously.

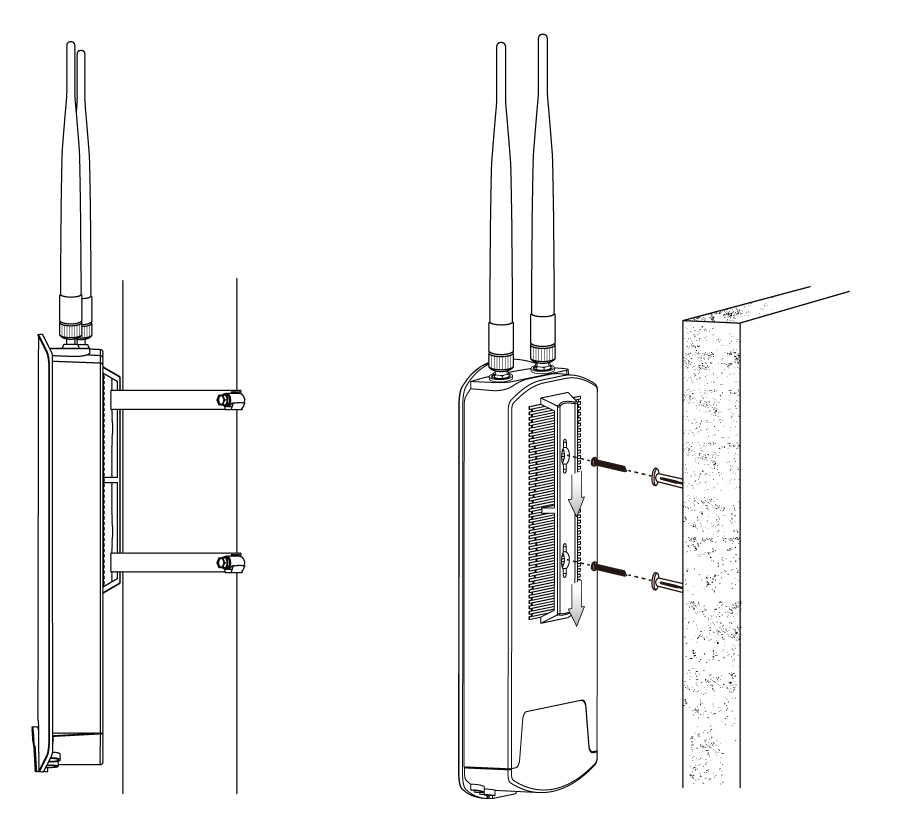

Easy Installation

Wall-mount or pole-mounted design with easy installation kit.

Rugged Construction

- IP56 weatherproof housing can perform normally under rigorous weather.

Designed for High Density Usage

- Supports up to two hundred users simultaneously (one hundred users per band), ideal for crowded environments and BYOE

  (Bring Your Own Everything) workplace Wi-Fi connection.

Multiple SSIDs for Security Management

- Supports up to 32 SSIDs (16 x 2.4GHz & 16 x 5GHz) ideal for multiple departments, user groups, customers or guests.

Fast Roaming

- Roams smoothly between APs without lag or interruption, ensuring top performance for video and voice streaming applications.

Wide Coverage & High Sensitivity

- Adjustable RF output power and high receiver sensitivity for wide coverage across large spaces.

Seamless Mobility

- 1.5x greater coverage than typical APs for blanket coverage to ensure seamless connectivity for Wi-Fi devices across enterprise environments.

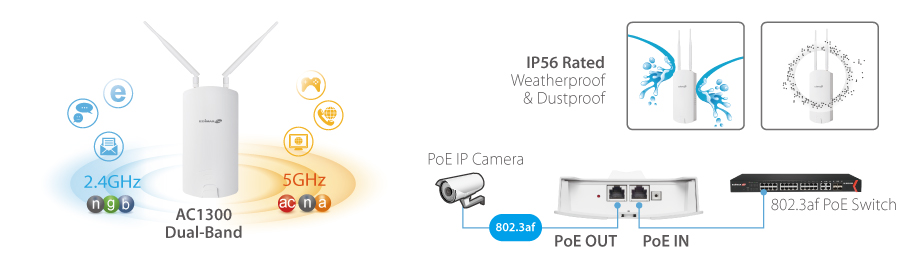

Power over Ethernet In/Out

- Supports IEEE 802.3at PoE and IEEE 802.3af PSE, PoE out (802.3af) to power another PoE device such as IP camera or outdoor AP.

Built-in Lighting Arrester

- Built-in withstands up to 10 kA current provides lightning protection for your wireless equipment.

Built-In RADIUS Server

- With management for up to 256 user accounts.

Central Management

- Edimax Pro Network Management Suite (NMS) and SKYMANAGE PC for easy and intuitive web-based central management.

  AP built-in with NMS that supports AP array architecture.

Works with Office 1-2-3 Wi-Fi System/Master AP

- The Office 1-2-3 system is a simple, secure, complete and expandable office  Wi-Fi solution. OAP1300 with upgradeable firmware (OAP1300 Office +1) for full Office 1-2-3 system compatibility, the integration supports guest, employee and device networks to offer a perfect solution for office with outdoor area or warehouse.

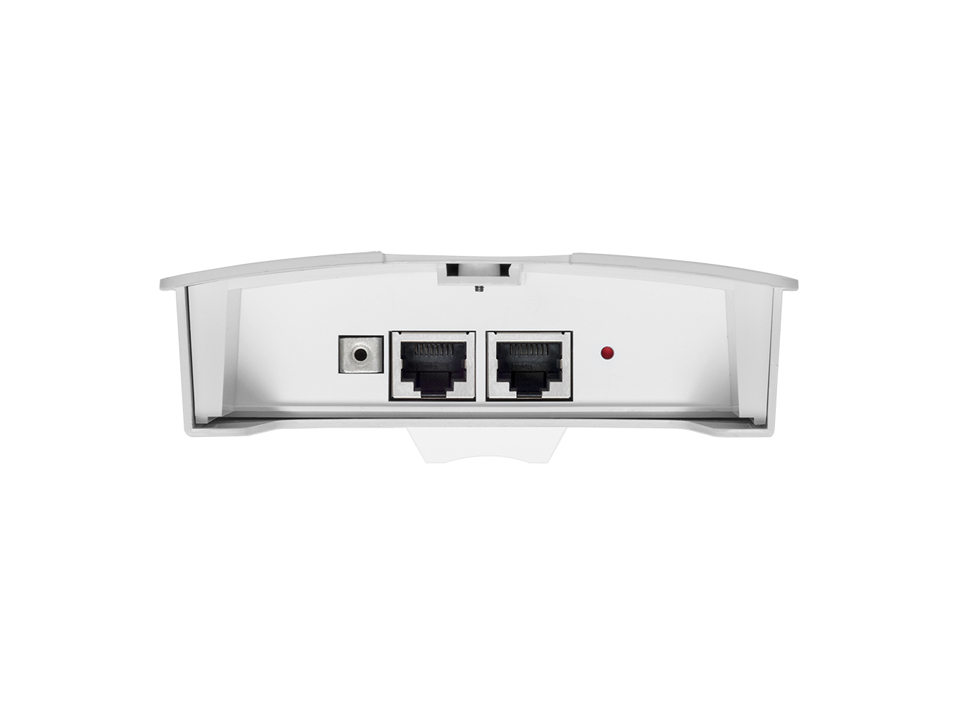

LAN Interface

- Giga x 2


- LAN1: PoE IN (802.3af/at)3

- LAN2: PoE OUT (802.3af)

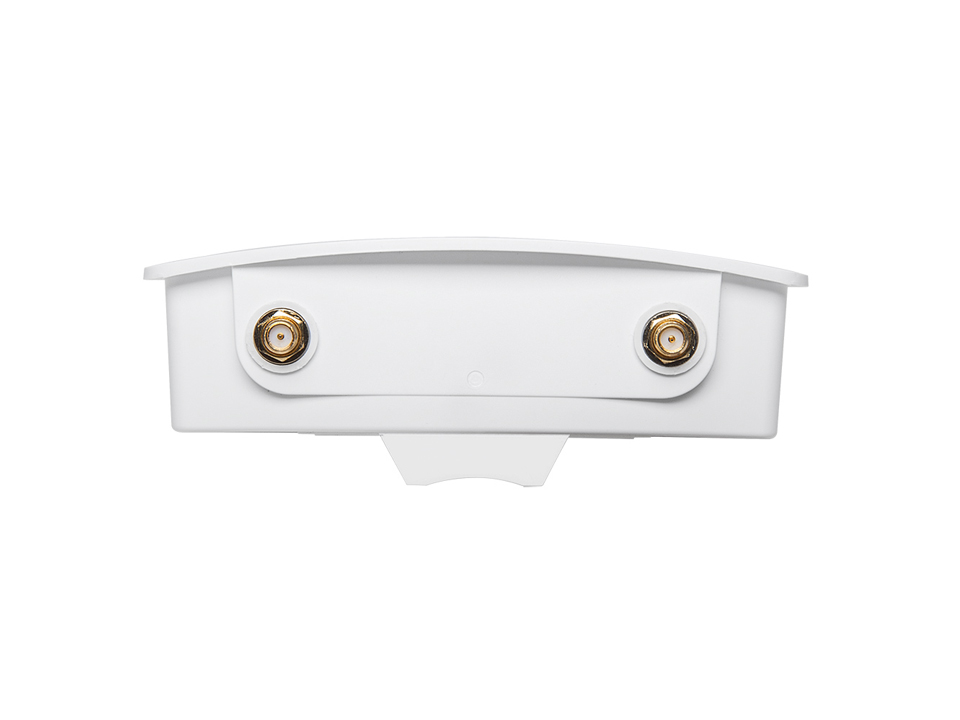

- Type: 2 x External

- Gain: 3.9dBi (2.4GHz), 4.4dBi (5GHz)


- 802.3at (PoE Injector Optional)

Dimensions(L x W x H)

- 27.18 x 12.09 x 3.5 cm


- 592g

Power Consumption (Full Loading)

- 15W


- Pole / Wall


- Reset

LED Indicator

- Power, Status, LAN(PD), LAN(PSE) 2.4G, 5G

Environmental Conditions

- Operating Temperature: -40°C (-40°F) to 60°C (140°F)

- Operating Humidity: 90% or Less

Power Saving

- 802.3az

Internal Buzzer

- Y


- Outdoor IP56 Weatherproof Rated


- 802.11 a/b/g/n/ac Concurrent Dual-Band

No. of Radios

- 2

Receiver Sensitivity

- ≤ -93Dbm


- CE / FCC

Fast Roaming

- Y

Number of SSIDs

- 16 (2.4GHz) + 16 (5GHz)

Maximum Data Speed

- 400 + 866Mbps

Concurrent Clients

- Up to 100 Per Radio
