TP-LINK Archer TX3000E AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter
เพิ่มเมื่อ: 2020-02-20 16:52:48.0
แก้ไขล่าสุด: 2023-06-20 17:23:14.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comArcher TX3000E AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)(สินค้ารับประกันตลอดอายุการใช้งาน)
TP-LINK Archer TX3000E
Archer TX3000E AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

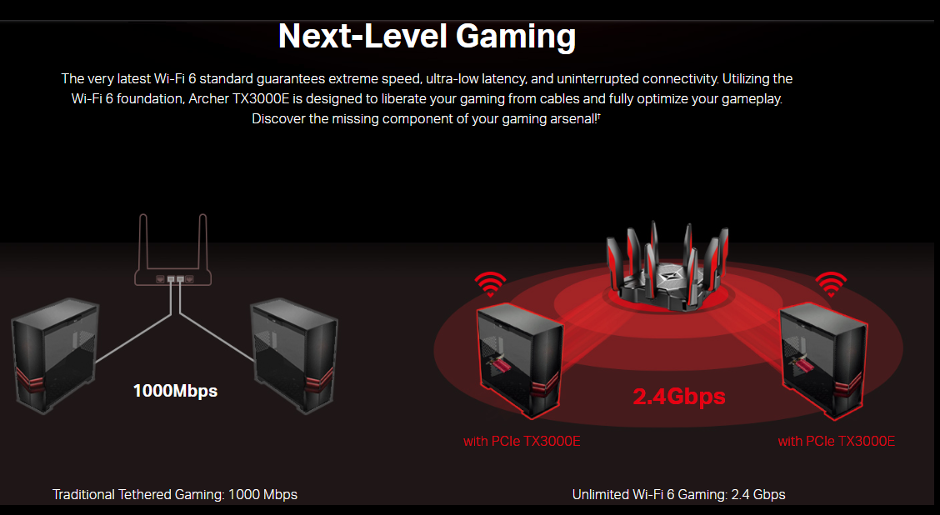

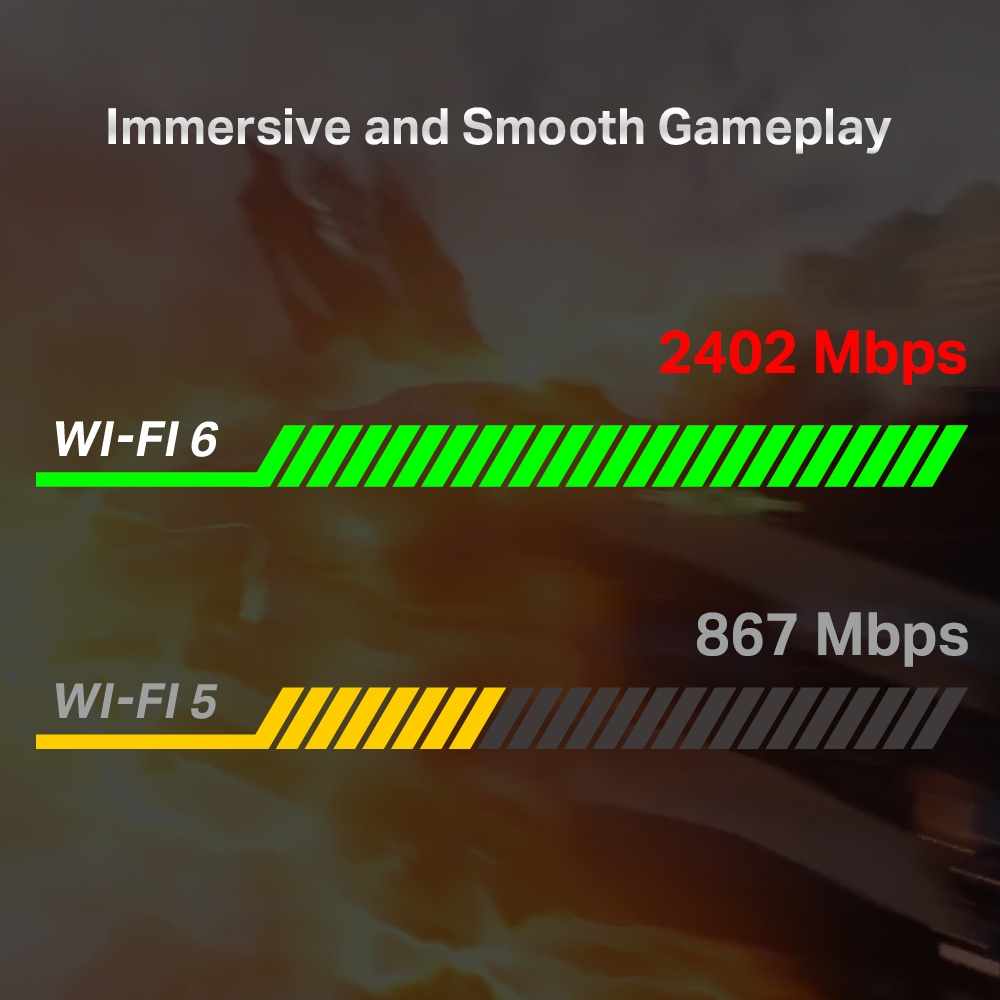

- Unrivaled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 2402 Mbps
(5 GHz) + 574 Mbps (2.4 GHz)
- Smoother Experience—75% lower latency ensures ultra-responsive real-time gaming
- Reliable Connections—Intel® Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock
the potential of your Wi-Fi 6 router
- Wider Signal Coverage—Two multi-directional antennas with magnetized base are designed
for optimum signal reception
- Bluetooth 5.0—The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader
Coverage than BT 4.2
- Improved Security—The latest security enhancements WPA3 provides enhanced protection
in personal password safety

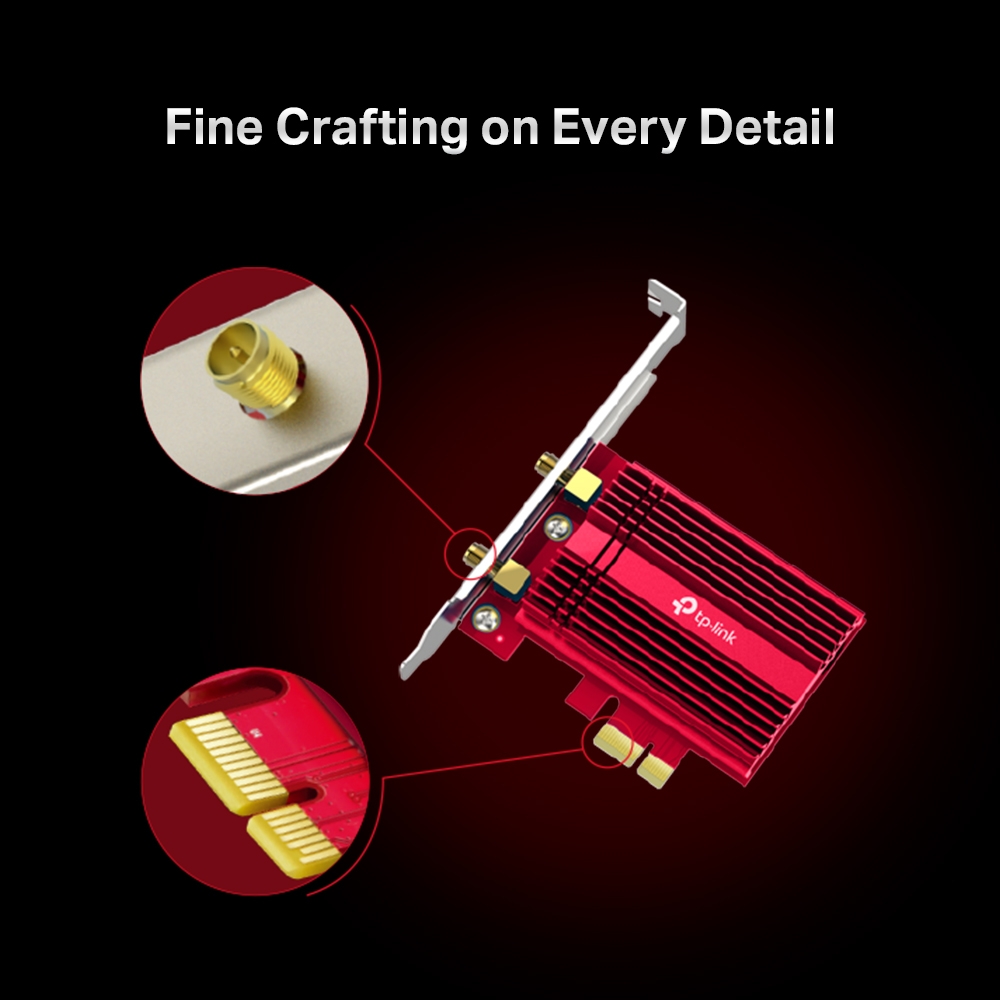

- Fine Crafting—Specialized heatsink and gold plating is crafted to improve stability and reliability
even in hot environments
- Backward Compatibility – Full support for 802.11ac/a/b/g/n standards
HARDWARE FEATURES
Dimensions
- 3.7 x 4.8 x 0.8 in
- (95.2 x 120.8 x 21.5 mm)
Antenna Type
- Two High-Gain Dual Band Antennas
- Magnetized Antenna Base
Chipset
- Intel Wi-Fi 6 Chipset
- WIRELESS FEATURES
- Wireless Standards
- IEEE 802.11ax/ac/n/a 5 GHz
- IEEE 802.11ax/n/g/b 2.4 GHz
- Bluetooth 5.0/4.2/4.0
WLAN Signal Rate
5 GHz
- 11ax: Up to 2402 Mbps(dynamic)
- 11ac: Up to 1733 Mbps(dynamic)
- 11n: Up to 300 Mbps(dynamic)
- 11a: Up to 54 Mbps(dynamic)
2.4 GHz
- 11ax: Up to 574 Mbps(dynamic)
- 11n: Up to 300 Mbps(dynamic)
- 11g: Up to 54 Mbps(dynamic)
- 11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity
5 GHz :
- 11ax HT160：-56.25dBm
- 11ax HT80: -59dBm
- 11ax HT40: -62.25dBm
- 11ax HT20: -65dBm
- 11ac HT160：-62dBm11ac HT80: -65.5dBm
- 11ac HT40: -69.75dBm
- 11ac HT20: -73.75dBm
- 11n HT40: -74.5dBm
- 11n HT20: -77.5dBm
- 11a 54Mbps: -77.75dBm
- 11a 6Mbps: -94.5dBm
2.4GHz :
- 11ax HT40: -60.75dBm
- 11ax HT20: -63.75dBm
- 11n HT40: -73dBm
- 11n HT20: -76.25dBm
- 11g 54Mbps: -76.5dBm
- 11b 11Mbps: -89dBm
WLAN Transmit Power
- 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
- 2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP)
WLAN Modes
- Infrastructure mode
- Wireless Security
- Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology
- DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
Bluetooth Profiles
- Archer TX3000E support the native BT profiles implemented in Windows 10.
For the latest information on Windows 10 BT profiles please refer to https://support.microsoft.com/en-us/help/10568
windows-10-supported-bluetooth-profiles
OTHERS
Certification
- CE, FCC, RoHS

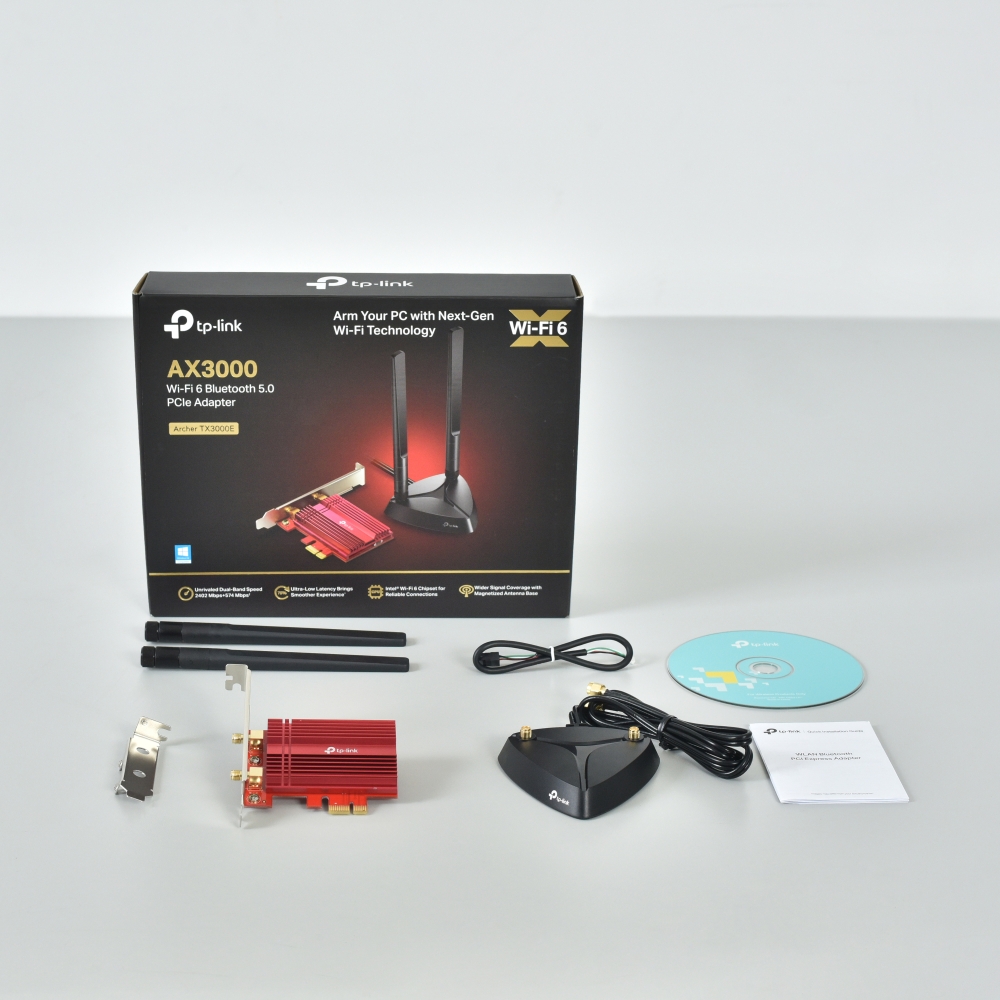

Package Contents
- Archer TX3000E
- Magnetized Antenna Base with 1m RF Cable
- Two 5 dBi High Gain Antennas

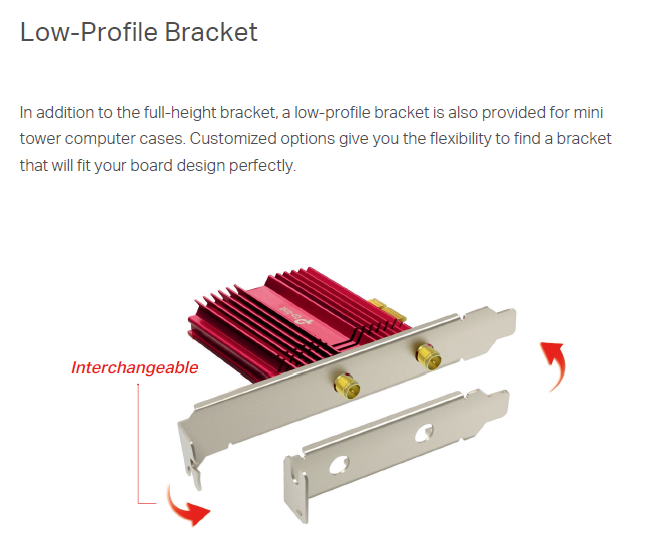

- Low-Profile Bracket
- Bluetooth Header Cable
- Quick Installation Guide
- Resource CD
System Requirements
- Windows 10(64-bit) only
Environment
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
