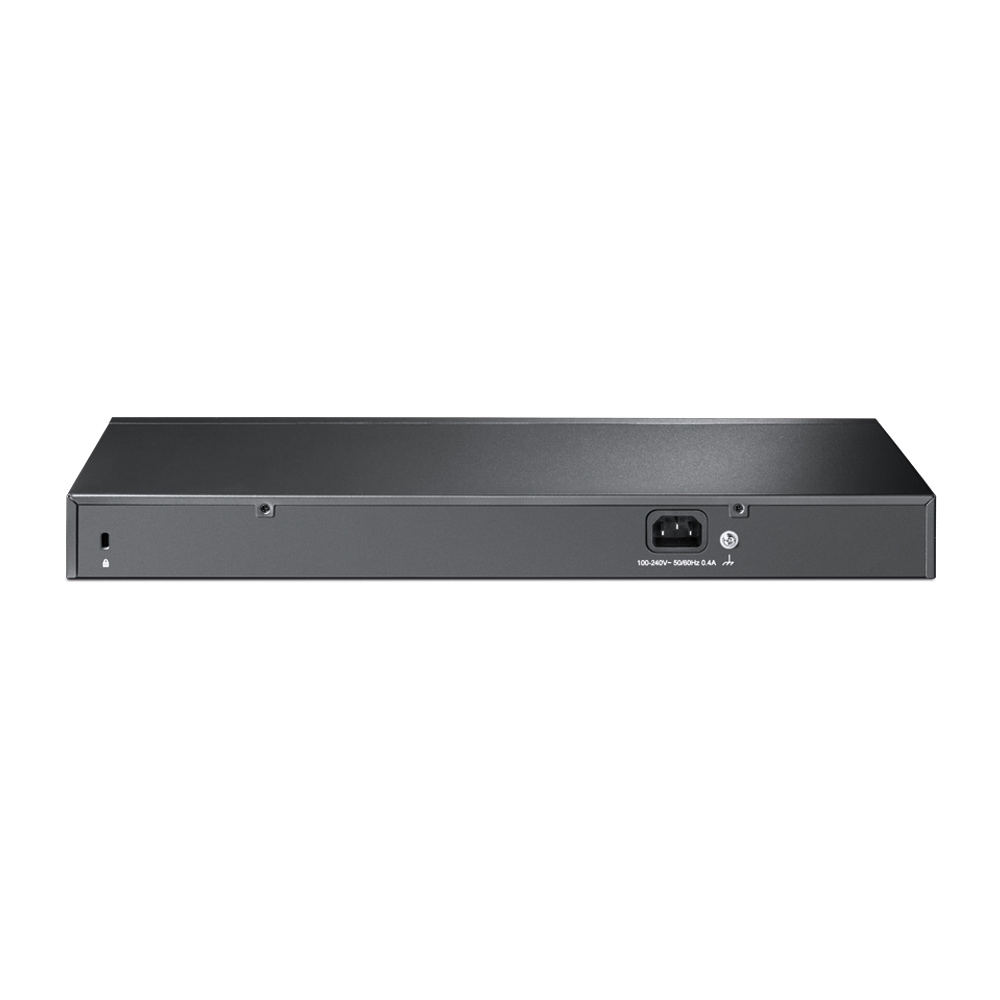

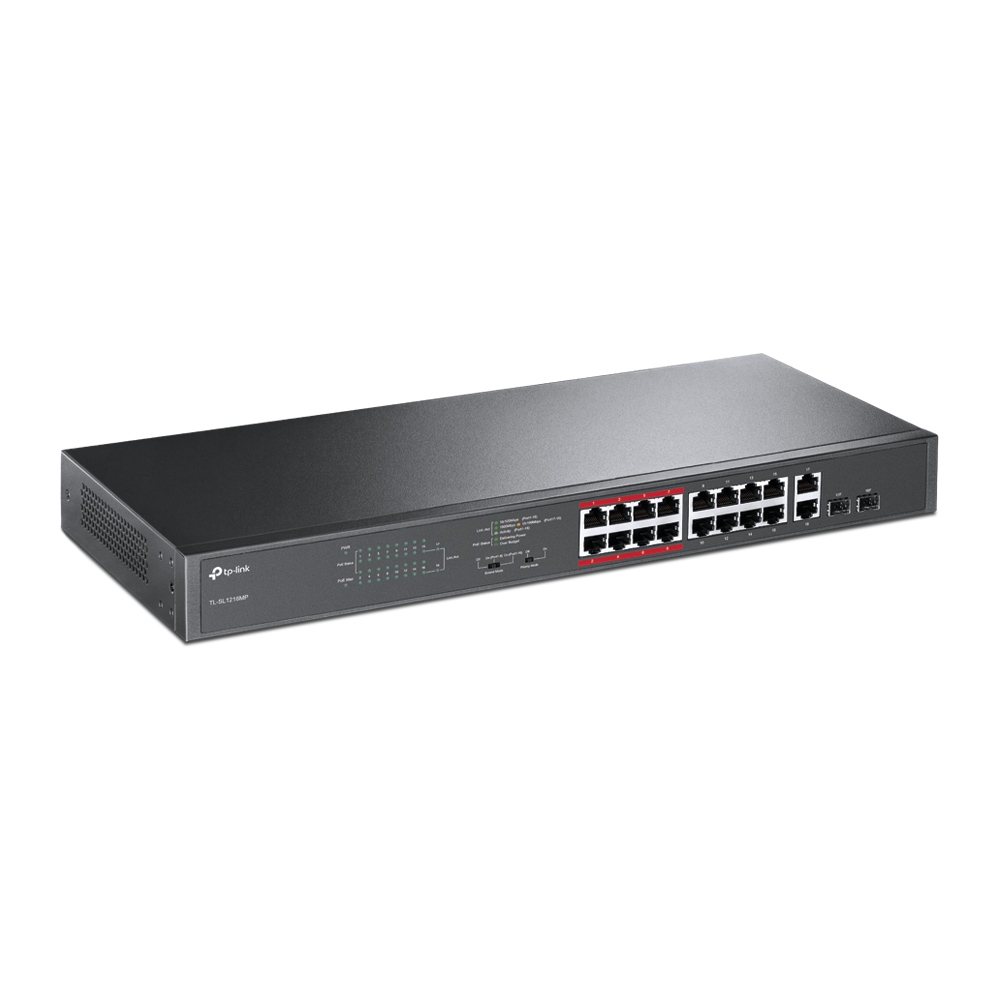

TP-LINK TL-SL1218MP 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
เพิ่มเมื่อ: 2023-01-05 13:17:36.0
แก้ไขล่าสุด: 2023-01-05 13:18:02.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comTL-SL1218MP 16-Port 10/100Mbps PoE Switch, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots (สินค้ารับประกัน ตลอดอายุการใช้งาน)
TP-LINK TL-SL1218MP
TL-SL1218MP 16-Port 10/100Mbps PoE Switch, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots
- 16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots
- Up to 250m data and power transmission under extend mode specially designed for surveillance system
- Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor
- High PoE power budget with up to 30W for each PoE port and 192W for all PoE ports
- Easy to use, with no configuration and installation needed
Interface :
- 16 PoE+ 10/100Mbps RJ45 Ports
- 2 10/100/1000Mbps RJ45 Ports
- 2 Combo Gigabit SFP Slots
Network Media :
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-X MMF, SMF
Fan Quantity : 2 Fans
Physical Security Lock : Yes
Power Supply : 100-240V AC, 50/60 Hz
Backup Bandwidth : 7.2 Gbps
PoE+ Ports(RJ45) :
- Standard: 802.3at/802.3af compliant
- PoE Ports: Port1- Port16
- PoE Power Budget: 192W
Mac Address Table : 8K
Dimensions ( W x D x H ) : 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
Max Power Consumption :
- 18.73 W (220/50Hz. no PD connected)
- 217.22 W (220/50Hz. with 192W PD connected)
Max Heat Dissipation :
- 63.89 BTU/h (no PD connected)
- 741.15 BTU/h (with 192W PD connected)
Package Contents : TL-SL1218MP, Power Cable, Installation Guide, Two mounting brackets and the fittings
