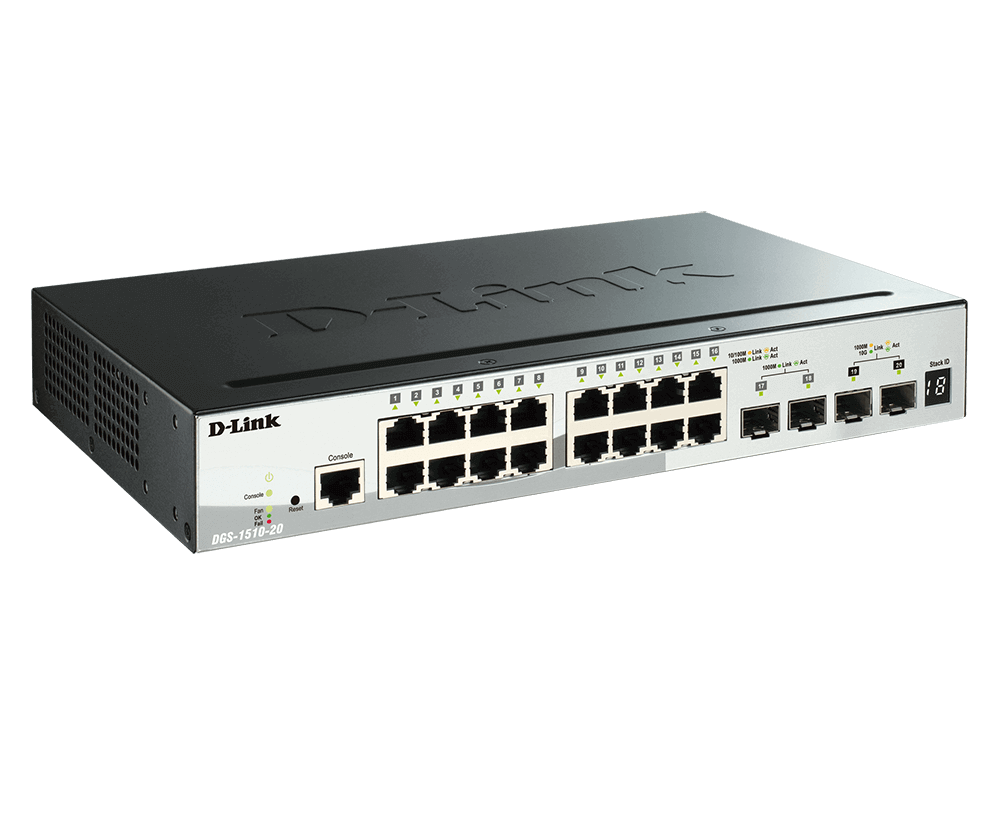

D-LINK DGS-1510-20
DGS-1510-20 20-port Gigabit Layer 3 Lite Stackable Smart Managed Switch with 2-port Gigabit & 2-port 10G Uplinks
- 16 x 10/100/1000BASE-T ports
- 2 x Gigabit SFP ports
- 2 x 10G SFP+ ports
- Layer 2 management and security with Layer 3 capabilities
- Static Routing and MSTP
Specifications
- Port based 802.1X Authentication Yes
- 802.1X Yes
- Identity Driven 802.1X Policy Assignment Yes
- Host based 802.1X Authentication Yes
- Web-based Access Control (WAC) Yes
- Host based WAC Authentication Yes
- Port based WAC Authentication Yes
- Japanese Web-based Access Control (JWAC) Yes
- Identity Driven WAC Policy Assignment Yes
- Host based JWAC Authentication Yes
- Port based JWAC Authentication Yes
- Identity Driven JWAC Policy Assignment Yes
- MAC-based Access Control (MAC) Yes
- Port based MAC Authentication Yes
- Identity Driven MAC Policy Assignment Yes
- Host based MAC Authentication Yes
- Guest VLAN Yes
- Compound Authentication Yes
- Privilege Level for Management Access 5
- Authentication for Management Access Yes
- RADIUS Yes
- RADIUS Accounting Yes
- TACACS+ Yes
- TACACS+ Accounting Yes
- Max Access Control List (ACL) Entries Yes
- MAC Access List Yes
- IP Access List Yes
- IPv6 Access List Yes
- Time based ACL Yes
- Port-based Bandwidth Control Yes
- Class of Service (CoS) Yes
- SSL Yes
- SSH Yes
- G.8032 ERPS Yes
- 802.3x Flow Control Yes
- Head-of-line (HOL) Blocking Prevention Yes
- Store-and-Forwarding Yes
- Comply with RoHS 6 Yes
- Energy Efficiency Ethernet (EEE) Yes
- Power Saving By Link Status Yes
- Power Saving By LED Shut-Off Yes
- Power Saving By Port Shut-Off Yes
- Power Saving By System Hibernation Yes
- 1000Base-T Interface 16
- 1000M SFP Interface 2
- 10G SFP+ Interface 2
- Auto MDI/MDIX Yes
- Console Port Yes
- 10/100/1000BASE-T ports 16
- SFP ports 2
- 10G SFP+ ports 2
- CPU Speed 400MHz
- DRAM Size 256MB
- Flash Memory Size 32MB
- Packet Buffer Size 1.5MB
- FAN 1 DC Fan
- Jumbo Frame 9216
- Loopback Detection (LBD) Yes
- MAC Address Table Size 16384
- Black Hole MAC Address Yes
- Max IGMP Snooping Groups 512
- IGMP Snooping Yes
- IGMP Snooping Fast Leave Yes
- IGMP Proxy Reporting Yes
- MLD Snooping Yes
- MLD Snooping Groups Yes
- MLD Snooping Fast Leave Yes
- MLD Proxy Reporting Yes
- IP Interface Yes
- Max Number of IP Interface 16
- ARP Yes
- ARP Entries 512
- Gratuitous ARP Yes
- ND Entries Yes
- UDP Helper Yes
- Default Route Yes
- Static Route Yes
- 802.1AX Link Aggregation Yes
- 802.3ad Link Aggregation Yes
- Link Aggregation Group Per Device 32
- Max Port Per Link Aggregation Group 8
- Web-based GUI Yes
- Command Line Interface (CLI) Yes
- Telnet Server Yes
- Telnet Client Yes
- SNMP Yes
- SNMP Trap Yes
- TFTP Client Yes
- ZModem Yes
- System Log Yes
- LLDP Yes
- RMONv1 Yes
- LLDP-MED Yes
- DHCP/BootP Client Yes
- D-Link Discover Protocol (DDP) Yes (v0.25)
- DHCP Auto-configuration Yes
- DHCP relay Yes
- Multiple Images Yes
- Flash file system Yes
- Multiple Configurations Yes
- Editable System Prompt Yes
- Editable Login Banner Yes
- DNS Client Yes
- Debug Command Yes
- Password Encryption Yes
- Ping Yes
- Traceroute Yes
- sFlow Yes
- D-Link Network Assistant Yes
- Smart Wizard Yes
- Port Mirroring Yes
- Flow-based (ACL) mirroring Yes
- Cable Diagnostics Yes
- Optical Transceiver Digital Diagnostic Monitoring (DDM) Yes
- Switch Capacity 76 Gbps
- Max. Packet Forwarding Rate 56.54 Mpps
- Remark 802.1p priority Yes
- Remark ToS/DSCP Yes
- Rate Limiting Yes
- Power Input 100 - 240 VAC
- Number of Queue 8
- Queue Handling Yes
- Strict Priority Queue (SPQ) Yes
- Weighted Round Robin (WRR) Yes
- Deficit Round Robin (DRR) Yes
- SPQ + WRR Yes
- SSH Yes
- SSL Yes
- Port Security Yes
- Broadcast/Multicast/Unicast Storm Control Yes
- Traffic Segmentation Yes
- IP Source Guard Yes
- DHCP Snooping Yes
- IPv6 Snooping Yes
- Dynamic ARP Inspection (DAI) Yes
- DHCPv6 Guard Yes
- IPv6 Route Advertisement (RA) Guard Yes
- IPv6 ND Inspection Yes
- Duplicate Address Detection (DAD) Yes
- D-Link Safeguard Engine Yes
- DHCP Server Screening Yes
- ARP Spoofing Prevention Yes
- BPDU Attack Protection Yes
- DoS Attack Prevention Yes
- 802.1D Spanning Tree (STP) Yes
- 802.1w Rapid Spanning Tree (RSTP) Yes
- 802.1s Multiple Spanning Tree (MSTP) Yes
- Root Restriction Yes
- Physical Stacking Yes
- Physical Stacking Bandwidth 40 G
- Units Per Physical Stack 6
- Maximum Heat Dissipation 41.60 BTU/hr
- Acoustic 43.8 dB(A)
- Dimension 280mm x 180mm x 44mm
- Maximum Power Consumption 20.3 W
- MTBF 882,152 hours
- Operation Humidity 0% ~ 95% RH
- Operation Temperature -5 -50°C
- Standby Power Consumption 11.4 W/100V, 12.2 W/240V
- Storage Humidity 0% ~ 95% RH
- Storage Temperature -20-70°C
- Weight 1.24 kg
- Network Time Protocol (NTP) Yes
- Simple Network Time Protocol (SNTP) Yes
- D-Link Single IP Management (SIM) Yes
- Units Per SIM Stack 32
- 802.1Q VLAN Yes
- VLAN Groups 4094
- Port-based VLAN Yes
- 802.1v Protocol-based VLAN Yes
- MAC-based VLAN Yes
- Voice VLAN Yes
- Auto Surveillance VLAN Yes, 2.1
- GVRP Yes
- Asymmetric VLAN Yes
