TP-LINK TL-SG2008 8-Port Smart Desktop Gigabit Switch
เพิ่มเมื่อ: 2017-03-09 18:01:54.0
แก้ไขล่าสุด: 2019-05-06 16:47:55.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comTL-SG2008 8-port Pure-Gigabit Desktop Smart Switch, 8 10/100/1000Mbps RJ45 ports(สินค้ารับประกัน ตลอดอายุการใช้งาน)

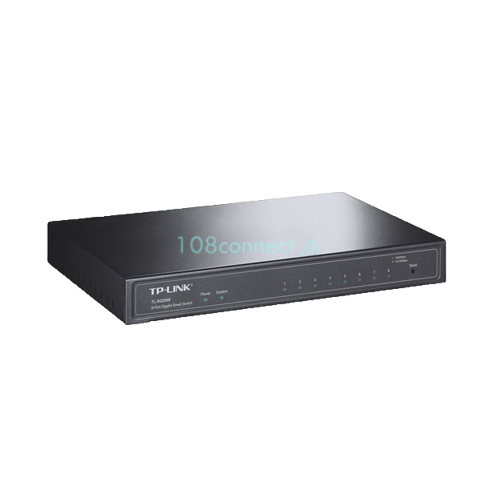

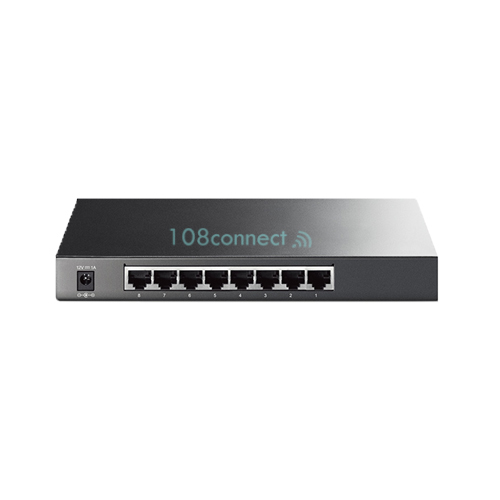

TP-LINK TL-SG2008
TL-SG2008 8-port Pure-Gigabit Desktop Smart Switch, 8 10/100/1000Mbps RJ45 ports
- Eight (8) 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX).
- Gigabit Ethernet connections on all ports provide full speed of data transferring.
- 802.1Q VLAN, ACL, Port Security and Storm control help protect LAN area investment.
- L2/L3/L4 QoS and IGMP snooping optimise voice and video applications.
- WEB/CLI managed modes, SNMP, RMON bring abundant management features.
- Innovative energy-efficient technology saves up to 65% of power consumption.
Technical Specification
- Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab,
- IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
- IEEE 802.1w, IEEE 802.1q, IEEE 802.1p
- Interface
- 8 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
- Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
- (maximum 100m)
- Dimensions (W X D X H) 8.2* 4.9* 1.0 in. (209* 126* 26mm)
- Fan Quantity Fanless
- Power Supply 100~240VAC, 50/60Hz
Performance
- Bandwidth/Backplane 16Gbps
- MAC Address Table 8k
- Packet Forwarding Rate 11.9Mpps
- Jumbo Frame 9216 Bytes
Quality of Service
- Support 802.1p CoS/DSCP priority
- Support 4 priority queues
- Queue scheduling: SP, WRR, SP+WRR
- Port/Flow- based Rate Limiting
- Voice VLAN
L2 Features
- IGMP Snooping V1/V2/V3
- 802.3ad LACP (Up to 6 aggregation groups,
- containing 4 ports per group)
- Spanning Tree STP/RSTP/MSTP
- BPDU Filtering/Guard
- TC/Root Protect
- Loop back detection
- 802.3x Flow Control
VLAN
- Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Access Control List
- L2~L4 package filtering based on source and destination
- MAC address, IP address, TCP/UDP ports, 802.1p,
- DSCP, protocol and VLAN ID
- Time Range Based
Security
- SSH v1/v2
- SSL v2/v3/TLSv1
- Port Security
- Broadcast/Multicast/Unknown unicast Storm Control
Management
- Web-based GUI and CLI management
- SNMP v1/v2c/v3, compatible with public MIBs and
- TP-LINK private MIBs
- RMON (1, 2, 3, 9 groups)
- CPU Monitoring
- Port Mirroring
- Time Setting: SNTP
- Firmware Upgrade: TFTP & Web
- System Diagnose: VCT
- SYSLOG & Public MIBS
Certification
- CE, FCC, RoHS
Package Contents
- TP-LINKTL-SG2008 Switch
- Power Adapter
- Quick Installation Guide
- Resource CD
- Rubber Feet
System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.
Environment Operating
- Temperature: 0C~40C (32F~104F);
- Storage Temperature: -40C~70C (-40F~158F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
