TP-LINK TL-SL2428P 24-Port 10/100Mbps + 4-Port Gigabit Smart
เพิ่มเมื่อ: 2023-02-16 19:17:50.0
แก้ไขล่าสุด: 2023-06-20 15:34:31.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comTL-SL2428P 24-Port 10/100Mbps + 4-Port Gigabit Smart Switch with 24-Port PoE+ (รับประกัน limited lifetime)

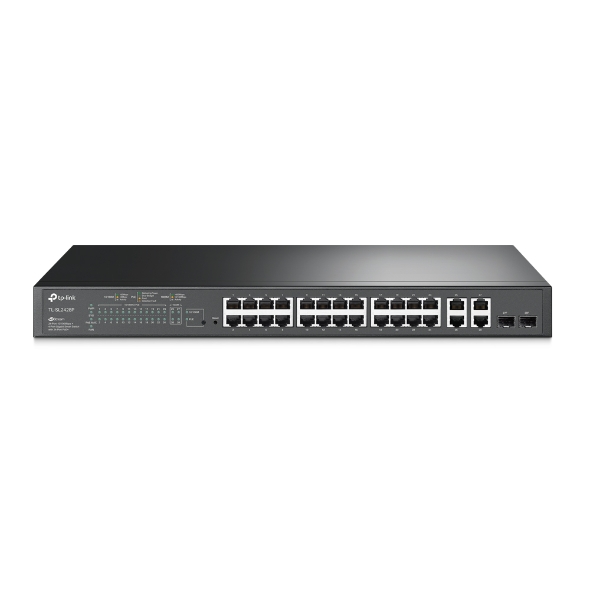

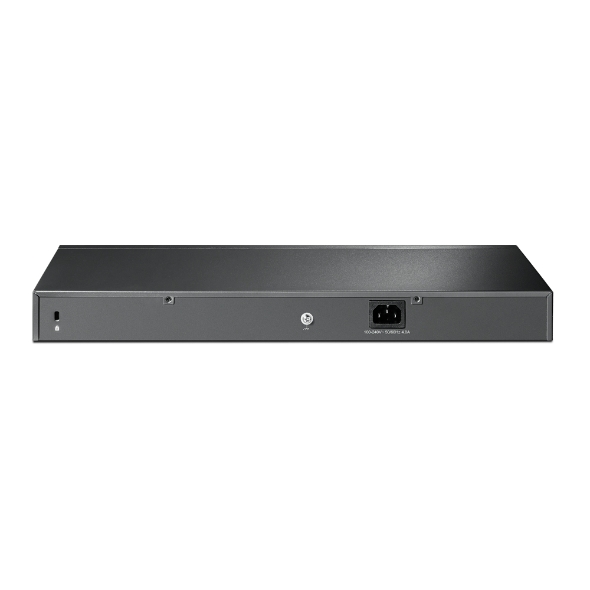

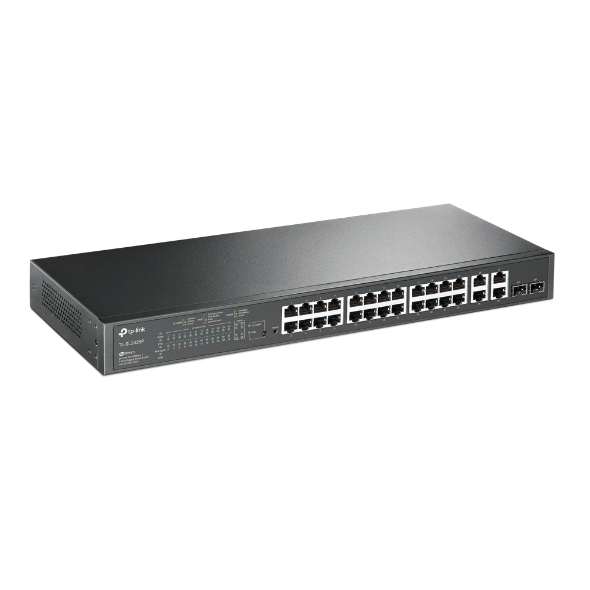

TP-LINK TL-SL2428P
TL-SL2428P 24-Port 10/100Mbps + 4-Port Gigabit Smart Switch with 24-Port PoE+
- Features 24 PoE ports, with total PoE power budget of 250 W* and useful PoE power management features
- Integrated security strategy including 802.1Q VLAN, Port Security, and Storm control help protect LAN area investment
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- WEB/CLI managed modes, SNMP, RMON bring abundant management features
- Dual Firmware Image improves the reliability and uptime of your network
Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad,
- IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w,
- IEEE 802.1q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface
- 24× 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- 2× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- 2× Combo Gigabit Uplink RJ45/SFP Ports
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable(maximum 100m)
- 1000BASE-X: MMF, SMF
Fan Quantity
- 2
Physical Security Lock
- Yes
PoE Budget
- 250 W
Dimensions ( W x D x H )
- 17.3×7.1×1.7 in.(440×180×44 mm)
Mounting
- Rack Mountable
Max Power Consumption
- V4.2: 286.7 W (220 V / 50 Hz with 250 W PD connected); 18.8 W (220 V / 50 Hz with no PD connected)
- V5: 293.6 W (110 V / 60 Hz) (with 250 W PD connected)
- V6: 291.6 W (110 V / 60 Hz) (with 250 W PD connected)
Max Heat Dissipation
- V4.2: 977.6 BTU/h (220 V / 50 Hz with 250 W PD connected); 64.1 BTU/h (with no PD connected)
- V5: 1001.2 BTU/hr (110 V/60 Hz) (with 250 W PD connected)
- V6: 995.09 BTU/hr (110V/60Hz) (with 250 W PD connected)
PERFORMANCE
Switching Capacity
- 12.8 Gbps
Packet Forwarding Rate
- 9.5 Mpps
MAC Address Table
- 8K
Jumbo Frame
- 9216 Bytes
