TENDA TEG5328P-24-410W L3 Managed PoE Switch
เพิ่มเมื่อ: 2022-12-25 16:05:55.0
แก้ไขล่าสุด: 2023-11-15 14:59:32.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comฮับสวิตซ์แบบจัดการและจ่ายไฟ TEG5328P-24-410W L3 Managed PoE Switch(รับประกัน 5 ปี)
TENDA TEG5328P-24-410W

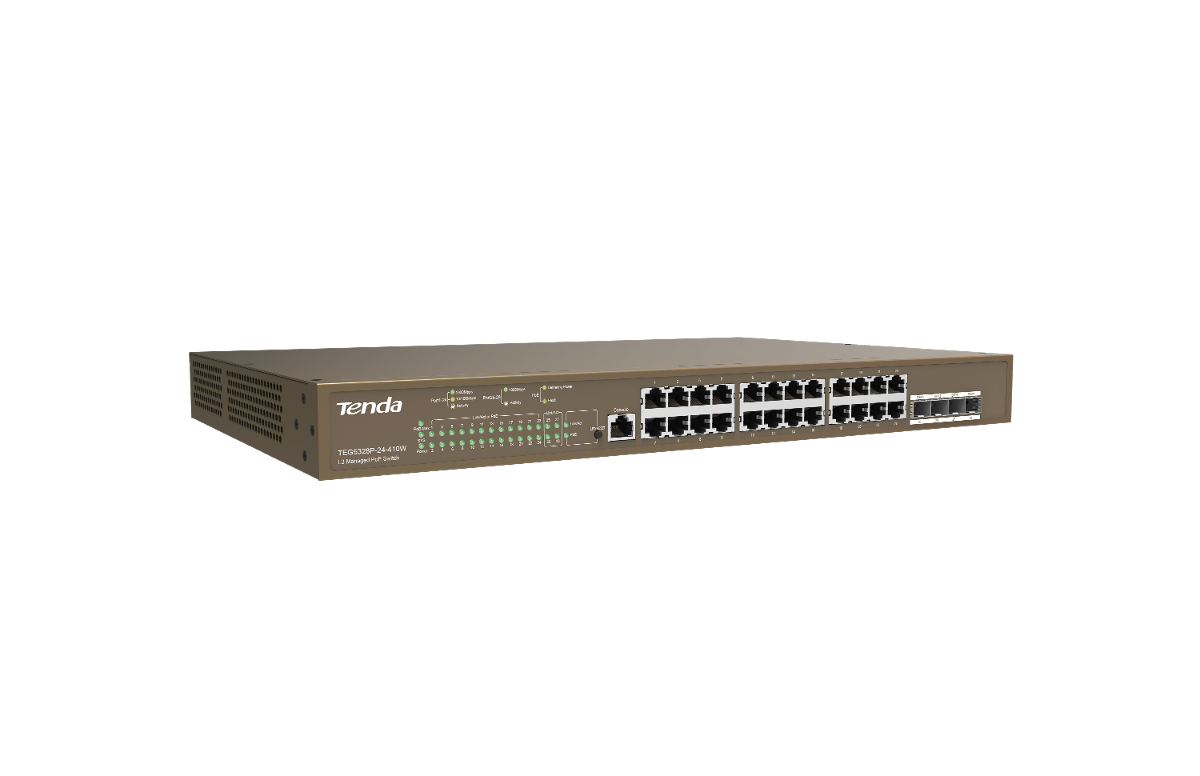

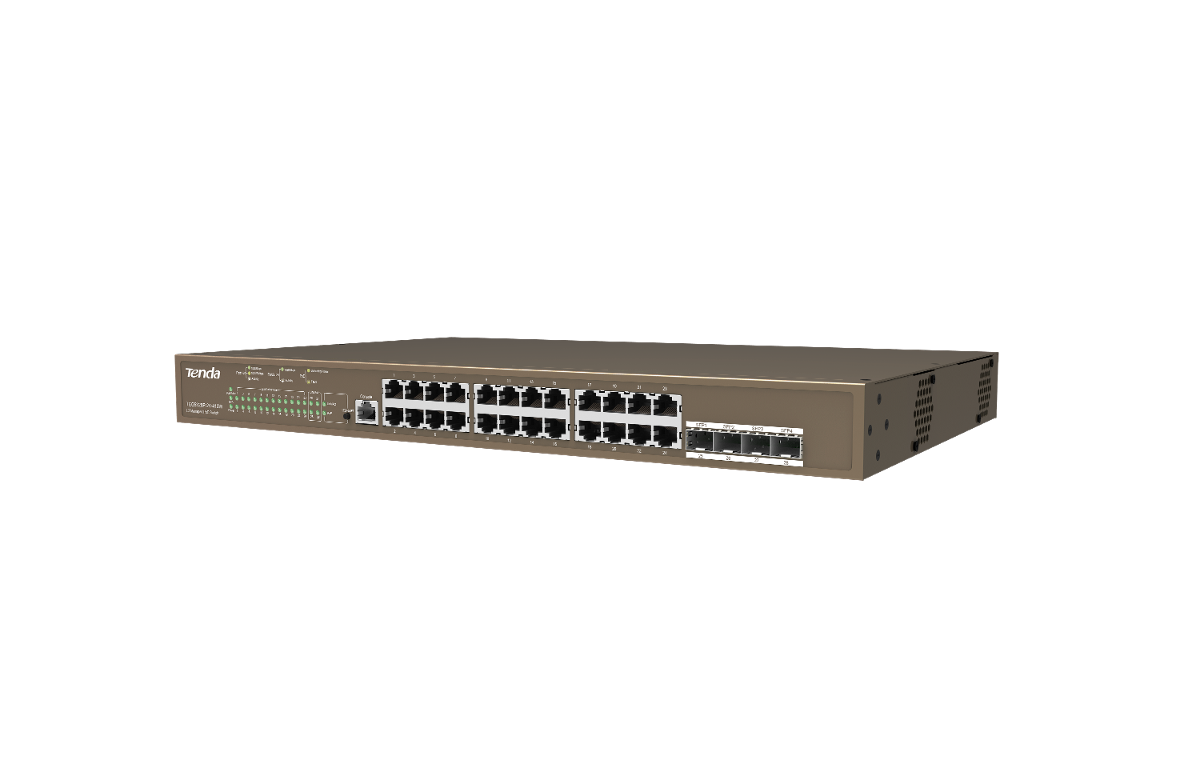

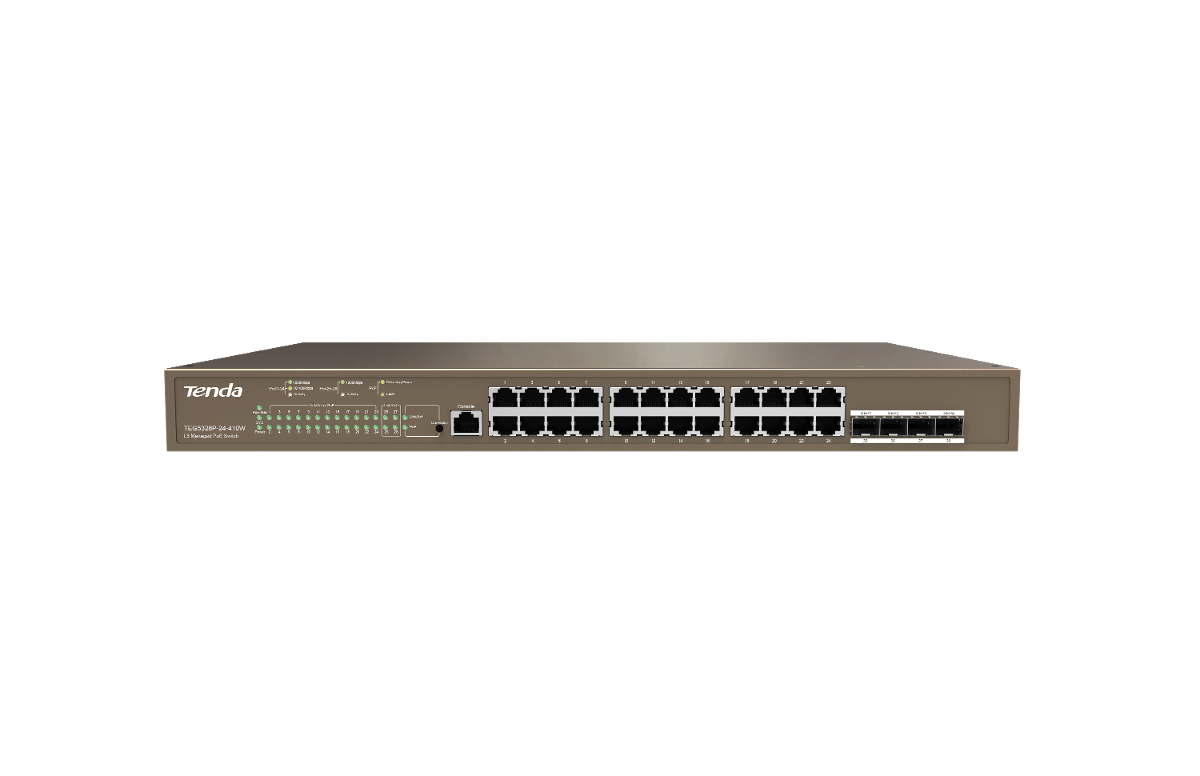

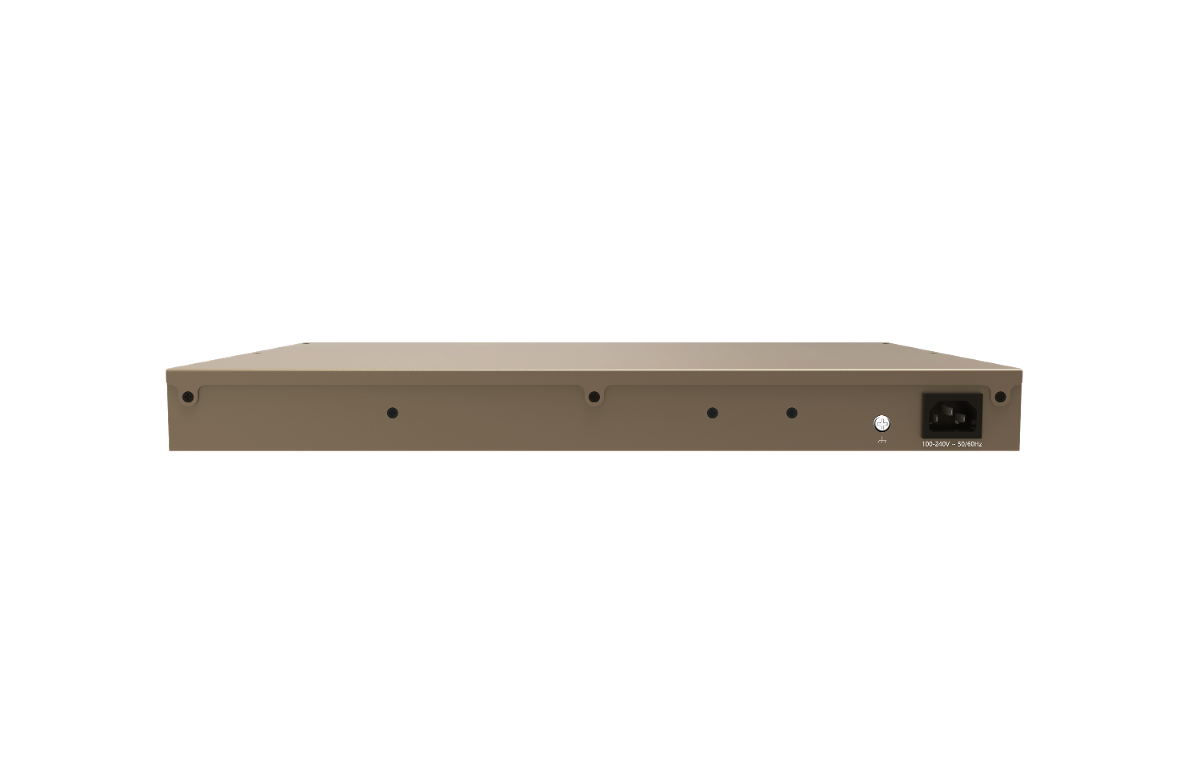

TEG5328P-24-410W Layer-3 24 port 10/100/1000 Managed PoE switch
TEG5328P-24-410W is a Tenda Layer-3 managed PoE switch. To meet the demand of high-performance access, the switch provides 24 10/100/1000 Mbps Base-T Ethernet ports and 4 separate 1000 Mbps Base-X SFP ports, and a PoE power of up to 370 W.With an innovative hardware structure and software platform, it features a powerful processing capacity and complete security protection mechanism, making management and maintenance easy and simple, fully meeting the demands of high-density user access and high-performance aggregation, ideal for the aggregation layer or access layer of such medium to large networks as enterprises and campuses.
Hardware
- Network standards :
IEEE802.3、
IEEE802.3u、
IEEE802.3ab、
IEEE802.3z、
IEEE802.3x、
IEEE802.3af/at、
IEEE802.1p、
IEEE802.1q、
IEEE802.1w、
IEEE802.1d、
IEEE802.1s
- LED Indicator :
1*Link/Act or PoE LED indicator
1*Link/1*Link/Act mode converting LED indicator
1*PoE mode converting LED indicator
1*PoE Max LED indicator
1*Power LED indicator
1*SYS LED indicator
- Interfaces :
24*10/100/1000 Base-T Ethernet ports
4*1000 Base-X SFP ports
1*Console port
- Transmission media :
Recommended: CAT5/5e UTP or better
- Fan quantity : 2
- Level of protection :
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
- Forwarding mode :
Store-and-forward
- Switch capacity :
56Gbps
- Packet forwarding rate :
41.70Mpps
- Buffer :
12Mb
- MAC address table :
16K
- Jombo frame :
10K
- PoE power supply management :
Support
- PoE budget :
Single port: AF: 15.4W, AT: 30W
Whole device: 370W
- Input voltage :
100-240V AC 50/60Hz
- Power consumption
Full load: ＜432W
Empty load: ＜23W
- Dimension :
440.0mmx284.0mmx44.0mm
- Mounting :
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
- Energy Efficient :
Support
- Environment :
Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
- Certification :
FCC、CE、RoHS
