PLANET VC-203PR PoE over Coaxial Extender – Receiver
เพิ่มเมื่อ: 2017-06-19 14:00:44.0
แก้ไขล่าสุด: 2019-05-13 13:15:37.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comVC-203PR PoE over Coaxial Extender – Receiver (สินค้ารับประกัน 3 ปี)
PLANET VC-203PR
VC-203PR PoE over Coaxial Extender – Receiver
PLANET VC-203Px PoE over Coaxial Extender series is designed to extend IP Ethernet transmission and inject power over an existing coaxial cable for distance up to 1000m (3280ft) to PoE IP camera, PoE wireless AP and any 802.3af/at complied powered device (PD).
The VC-203Px consists of a Transmitter and Receiver set which can work in pair without any power adapter anywhere on your network infrastructure. The solution contains two brand-new products:
- VC-203PT: 1-Port 10/100TX PoE PD + 1-Port BNC PoE over Coaxial PSE Extender – Transmitter
- VC-203PR: 1-Port 10/100TX PoE PSE + 1-Port BNC PoE over Coaxial PD Extender – Receiver
|
Models
|
VC-203PT
|
VC-203PR
|
|
|
Power over Coax. Extender
|
Transmitter
|
Receiver
|
|
|
Power Input
(Optional) |
PoE
|
RJ-45: 802.3af/at PoE In
UTP cable, up to 100m |
BNC: PoE over Coaxial In
Coaxial cable, up to 1km |
|
DC
|
DC Jack: 52~56V DC In
|
DC Jack: 52~56V DC In
|
|
|
Power Output
|
PoE
|
BNC: Power over Coaxial Out
Coaxial cable, up to 1km |
RJ-45: 802.3af/at PoE out
UTP cable, up to 100m |
|
DC
|
--
|
2-pin Terminal Block :
Selectable 12V/24V DC |
|

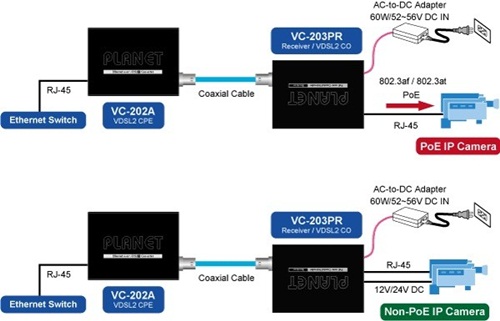

It is a perfect solution for sending IP Video links and power to remote PoE IP camera installation that is beyond the 100 meters distance limit of Ethernet.
Features

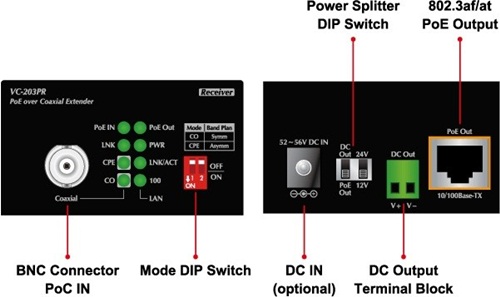

Physical Port
• 1 x 10/100Base-TX RJ-45 copper interface (802.3at/af PoE Out)
• 1 x BNC connector (Power and data receiver)
• 1 x 2 Pin Terminal Block for 12/24V DC output
Power over Ethernet
• Supports Power over Ethernet PD, PoE Injector and PoE Splitter
• Eliminates power cabling with PoE over Coaxial
• Ethernet over coaxial up to 1km with 5C2V/RG6 75Ωcable
• Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet on RJ-45 port
• Supports PoE Power up to 30.8 watts (Vary on Power Source and Coaxial Distance)
• Auto detects remote powered device (PD)
• Supports adjustable two different output voltage options (12V / 24V) to fit various non-PoE devices
Layer 2 Features
• Supports auto-negotiation and 10/100Mbps half / full duplex
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
VDSL2 Features
• One box design, Master / Slave selectable via DIP Switch
• Defines Asymmetric (Band Plan 998) and Symmetric band plans for the transmission of Upstream and Downstream signals
Industrial Case / Installation
• Supports extensive LED indicators for network diagnostics
• IP30 metal case protection
• Compact size, DIN rail and wall mount design
• Power Input: External DC or PoC (Power over Coaxial) power input
• Supports EFT 2000V DC protection for power line
• Supports ESD 2000V DC Ethernet protection
• -40 to 75 degrees C operating temperature
