TOTOLINK S808

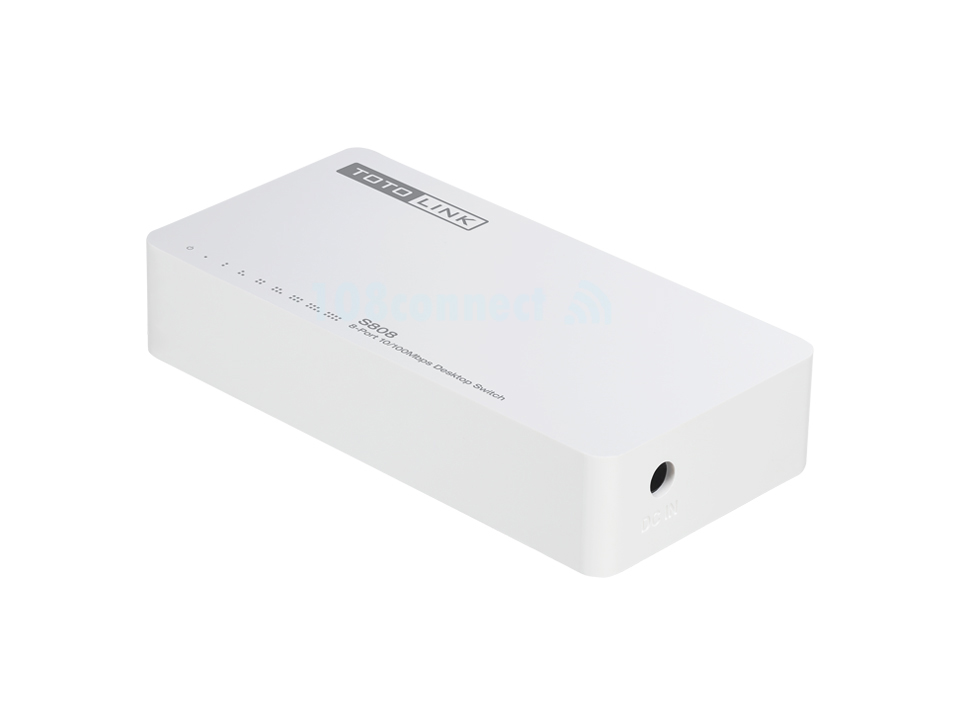

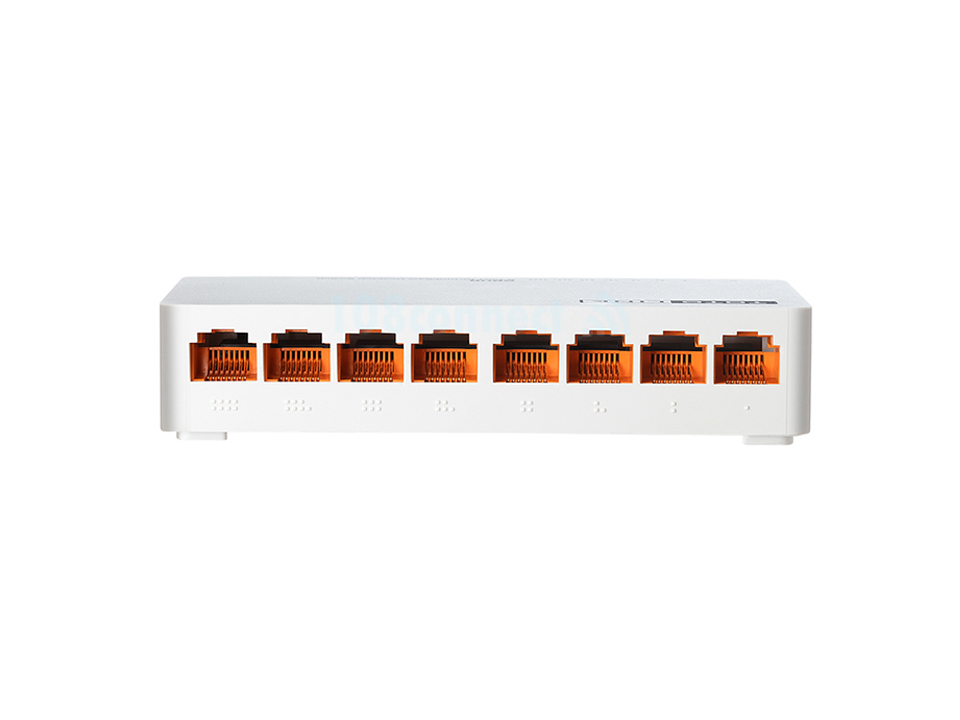

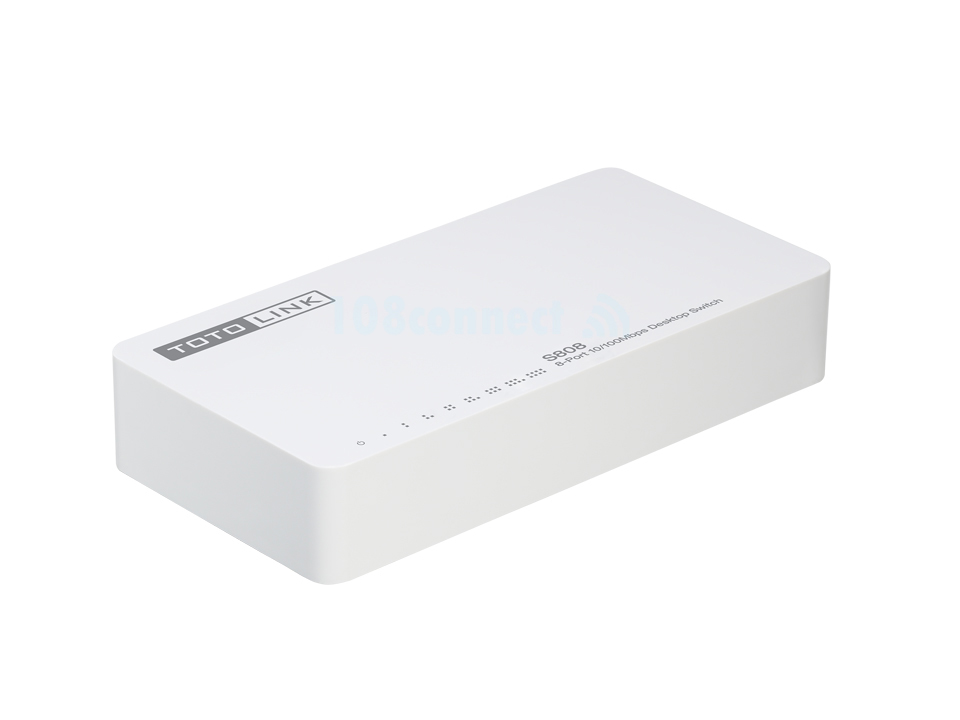

S808 8 Port 10/100Mbps auto-negotiated RJ45 ports Desktop Switch
- 8 Port 10/100Mbps auto-negotiated RJ45 ports.
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
- Mini plastic design supports desktop placement or wall mount.
- 1K entry MAC address table and automatic address learning.
- Auto-MDI/MDIX eliminates the need for crossover cables.
- Store- and-Forward switching scheme.
- Performs non-blocking full wired speed.
Brand
- TOTOLINK
Model
- S808
Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x,
Interface
- 8*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
Power Supply
- 5V DC/0.6A
LED
- 1* Power, 8*LANs
MAC Address Learning
- Auto-learning, auto-aging
MAC Address Table
- 1K
Network Media
- - 10BASE-T: UTP Cat 3 or above cable
- - 100BASE-TX: UTP Cat 5, 5e or above cable
Backup Bandwidth
- 1.6Gbps
Transmission Method
- Store-and-forward
Package Contents
- 1 *S808 Desktop Switch
- - 1 *Power Adapter
- - 1 *Quick Installation Guide
Environment
- Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Dimensions(L x W x H)
- 4.9 x 2.4 x 1.1in. (125 x 62 x 27mm)
