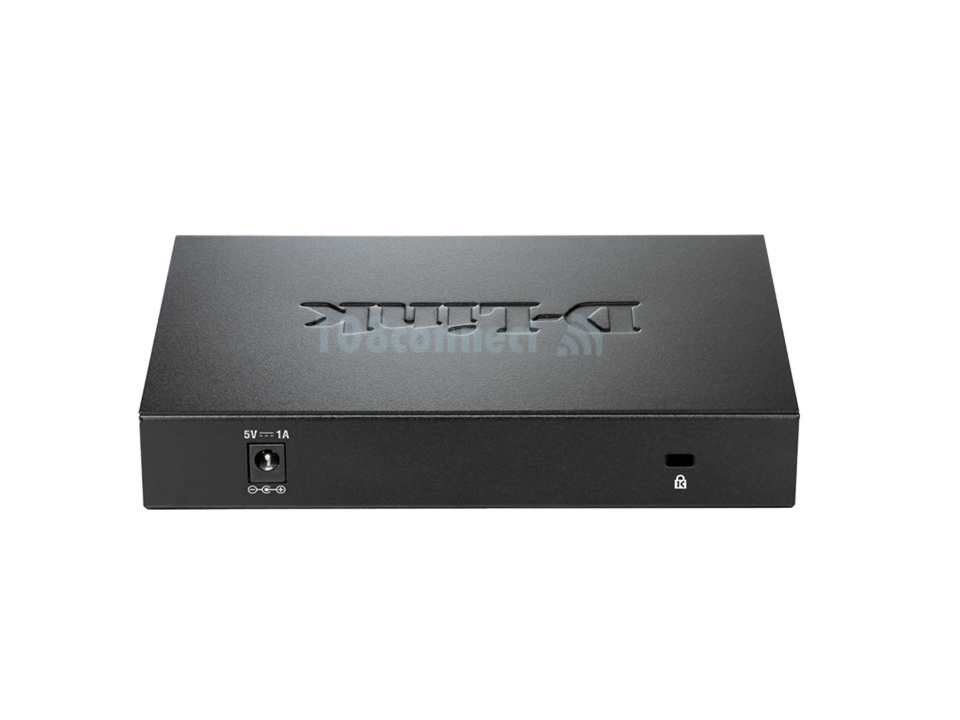

D-LINK DGS-108

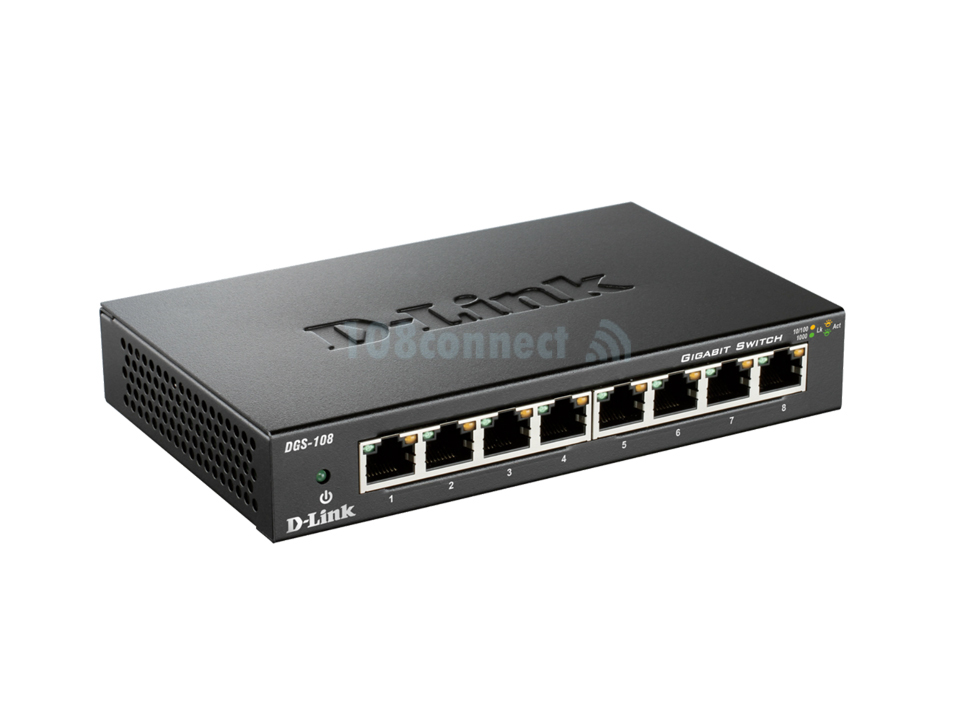

DGS-108 8-Port Gigabit Unmanaged Desktop Switch
- Built-in D-Link Green Technology
- Inexpensive Gigabit solution for Home/SOHO
- Eight 10/100/1000 Mbps Gigabit ports
- 16 Gbps switching fabric
- Auto MDI/MDIX crossover for all ports
- Secure store-and-forward switching scheme
- Full/half-duplex for Ethernet/Fast Ethernet speeds
- IEEE 802.3x Flow Control
- Supports 9,000 Byte Jumbo Frames
- Supports IEEE 802.1p QoS (4 Queues, Strict Mode)
- Supports Cable Diagnostics Function
- RoHS compliant
- Plug-and-play installation
Standards
- IEEE 802.3 10BASE-T Ethernet (twistedpair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
- ANSI/IEEE 802.3 NWay auto-negotiation
- IEEE 802.3x Flow Control
- IEEE 802.1p QoS
- IEEE 802.3az Energy-Efficient Ethernet (EEE)
Protocol
- CSMA/CD
Data Transfer Rates
Ethernet:
- 10 Mbps (half duplex)
- 20 Mbps (full duplex)
Fast Ethernet:
- 100 Mbps (half duplex)
- 200 Mbps (full duplex)
Gigabit Ethernet:
- 2000 Mbps (full duplex)
Topology
- Star
Network Cables
10BASE-T:
- UTP CAT 3, 4, 5/5e (100 m max.)
- EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX, 1000BASE-T:
- UTP CAT 5/5e (100 m max.)
- EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange
- Auto MDI/MDIX adjustment for all ports
LED Indicators
- Per port: Link/Activity/Speed
- Per device: Power
Transmission Method
- Store-and-forward
MAC Address Table
- 8K
MAC Address Learning
- Automatic update
Packet Filtering/Forwarding Rates
- Ethernet: 14,880 pps per port
- Fast Ethernet: 148,800 pps per port
- Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer
- 128 KB per device
DC Input
- External 5 V/1 A Level “V” Power Adapter
Power Consumption
Power On (Standby):
- DC input: 0.55 watts
- AC input: 1.0 watts
Maximum:
- DC input: 2.8 watts
- AC input: 4.5 watts
Heat Dissipation
Power On (Standby)
- AC input: 3.41 BTU/h
Maximum
- DC input: 9.548 BTU/h
MTBF
- 2,053,751 hours
Operating Temperature
- 0 to 50 ˚C (32 to 130 ˚F)
Storage Temperature
- -10 to 70 ˚C (14 to 158 ˚F)
Operating Humidity
- 10% to 90% RH non-condensing
Storage Humidity
- 5% to 90% RH non-condensing
Device Dimensions (W x D x H)
- 162 x 102 x 28 mm (6.3 x 4 x 1.1 inches)
