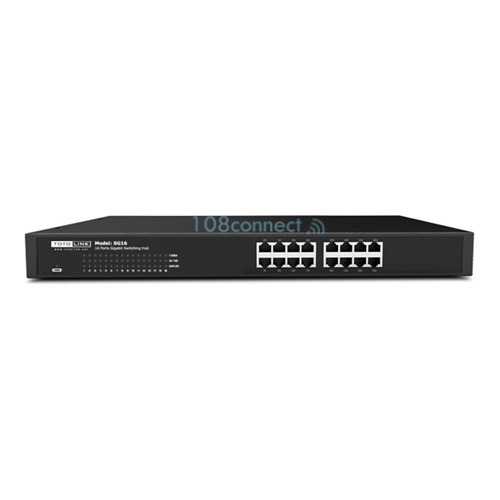

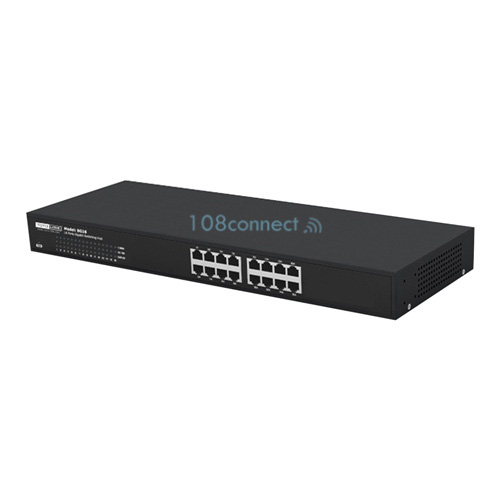

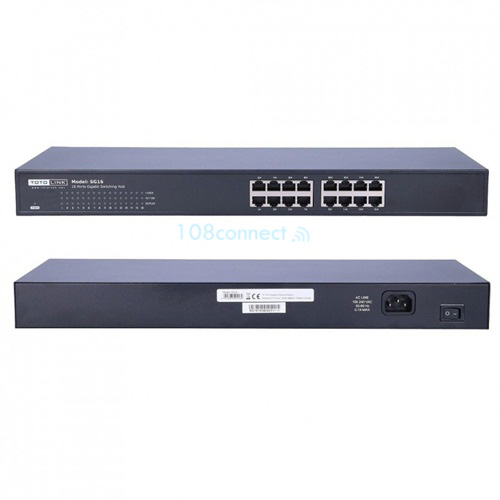

TOTOLINK SG16
SG16 16-port unmanagement Gigabit Switch, 16* 10/100/1000M RJ45 ports, metal Case rack-mounted(19inch)
- Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x standards.
- 16 10/100/1000Mbps auto-negotiation ports.
- Supports flow control for each port.
- Supports store and forward switching scheme capability.
- Supports auto MDI/MDIX for each port.
Standards :
- IEEE 802.3,
- IEEE 802.3u,
- IEEE 802.3ab,
- IEEE 802.3x
Interface :
- 16*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
Power Supply :
- AC 100V~240V, 50/60Hz
LED Indicators :
- 1*Power, Link/Act (1~16)
Dimensions(L x W x H) :
- 440mm x 160mm x 44.6mm
MAC Address Learning :
- Auto-learning, auto update
MAC Address Table :
- 8K
Backup Bandwidth :
- 32Gbps
Network Media :
- 10BASE-T: UTP Cat 3, 4, 5 cable (100m, max)
- EIA/TIA-568 100Ω STP (100m max.)
- 100BASE-TX: UTP Cat 5, 5e cable (100m max.)
- EIA/TIA-568 100Ω STP (100m max.)
- 1000BASE-TX: UTP Cat 5, 5e cable (100m max.)
Frame Filtering :
- 10Mbps: 14,880pps
- 100Mbps: 148,800pps
- 1000Mbps: 1,488,000pps
Transfer Method :
- Store-and-Forward
Package Contents :
- SG16 Gigabit Switch
- Quick Installation Guide
- Power Cord
- Brackets
- Rubber Feet
- Screws
Environment :
- Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
