| TP-LINK SG2005P-PD Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
TP-LINK SG2005P-PD Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
เพิ่มเมื่อ: 2024-01-04 13:09:02.0
แก้ไขล่าสุด: 2024-01-04 13:09:45.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comSG2005P-PD Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out (สินค้ารับประกัน 3ปี)
TP-LINK SG2005P-PD
SG2005P-PD Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
- Up to 200 m PoE Distance: Standard PoE Passthrough to doubles PoE source-to-device transmission distance from 100 m (328 ft) to 200 m (656 ft) without losing gigabit speeds, perfect for long-range surveillance cameras and access points.*

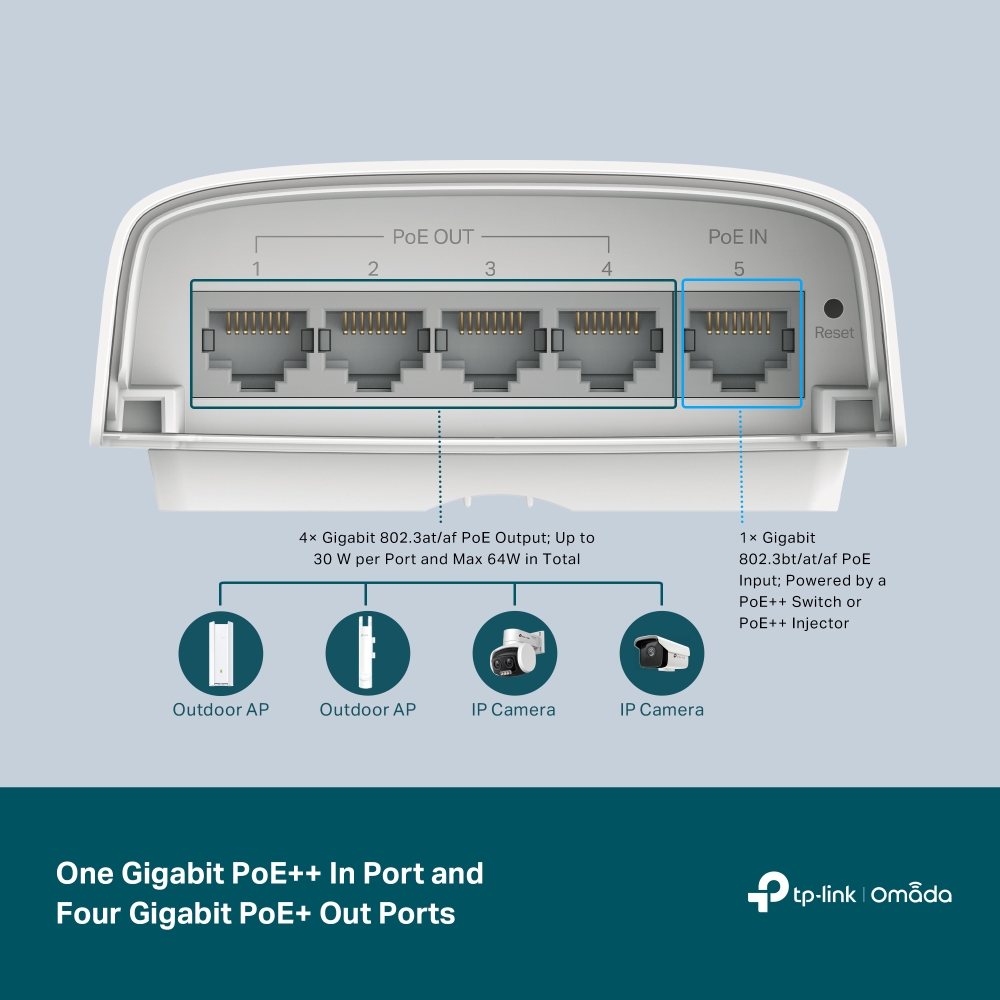

- 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.**
- Outdoor Weatherproof: IP55 waterproof, dustproof, and UV-resistant enclosure. Operation temperatures of -40 to 60 °C and 4KV lightning protection further ensure stable operation against harsh outdoor conditions.

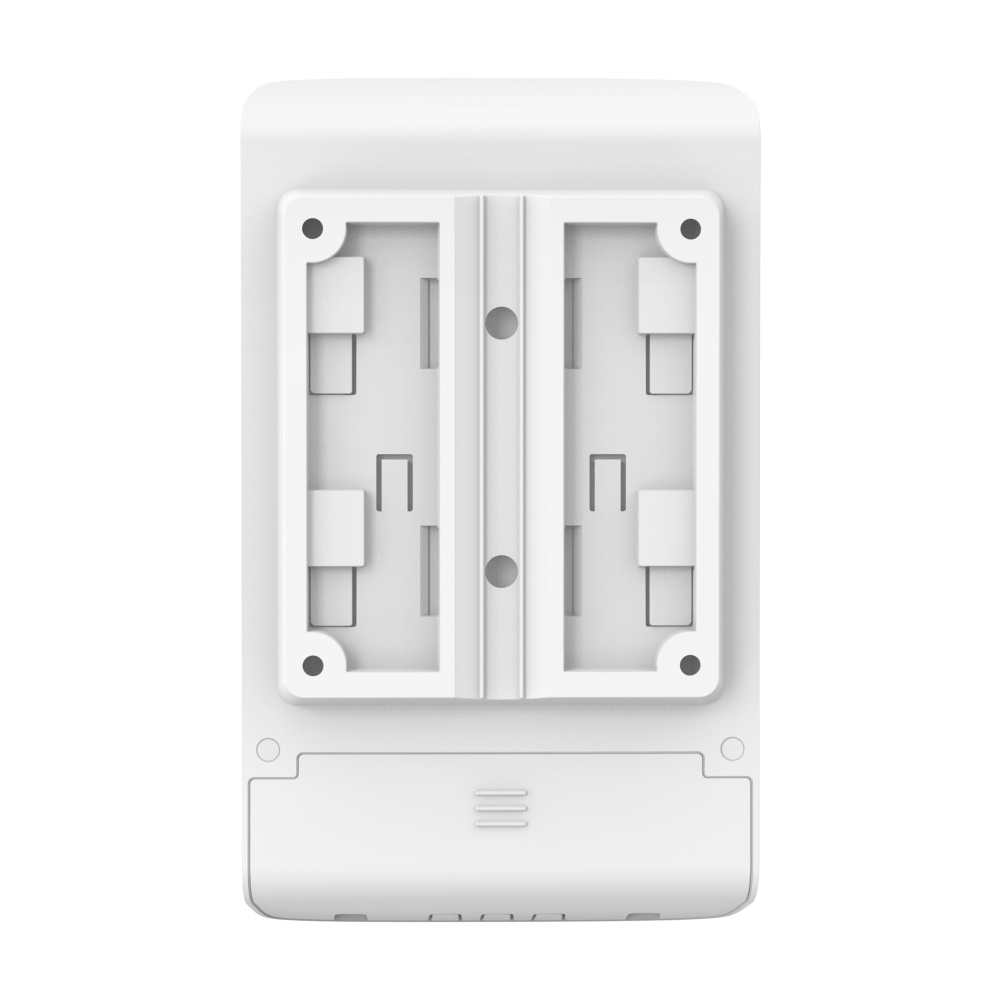

- Easy Installation: Easy to mount to a wall or pole with the provided mounting kits to flexibly fit your needs.
- Centralized Cloud Management: Integrates into Omada SDN for cloud access, remote management, and multi-site management.
- Value-Added Features Foster Touchpoint Experiences: Static Routing, Access Control List (ACL), QoS, and VLAN.
Standards and Protocols :
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface :
• 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt)
• 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at PoE)
Network Media :
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity :
Fanless
Power Supply :
Obtain Power from 802.3af/at/bt PoE Source
PoE Ports (RJ45) :
• PoE In Port: Port 5, Compliance with 802.3af/at/bt
• PoE Out Ports: Ports 1-4, compliance with 802.3af/at PoE
• PoE Power Budget:
-64 W when powered by 802.3bt Type 4 (90 W)
-44 W when powered by 802.3bt Type 3 (60 W)
-19 W when powered by 802.3at
-6 W when powered by 802.3af
Dimensions ( W x D x H ) :
3.9 × 1.5 × 6.7 in (100 × 38.5 × 170 mm)
Max Power Consumption :
71.5 W (when powered by 802.3bt Type 4 (90 W))
Max Heat Dissipation :
243.99 BTU/hr (when powered by 802.3bt Type 4 (90 W))
Switching Capacity :
10 Gbps
Packet Forwarding Rate :
7.44 Mpps
MAC Address Table :
8k
Packet Buffer Memory :
4.1 Mbit
Jumbo Frame :
9 KB
Package Contents :
• SG2005P-PD
• Mounting Kits
• Installation Guide
System Requirements :
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment :
• Operating Temperature: -40 to 60 °C (-40 to 140 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
