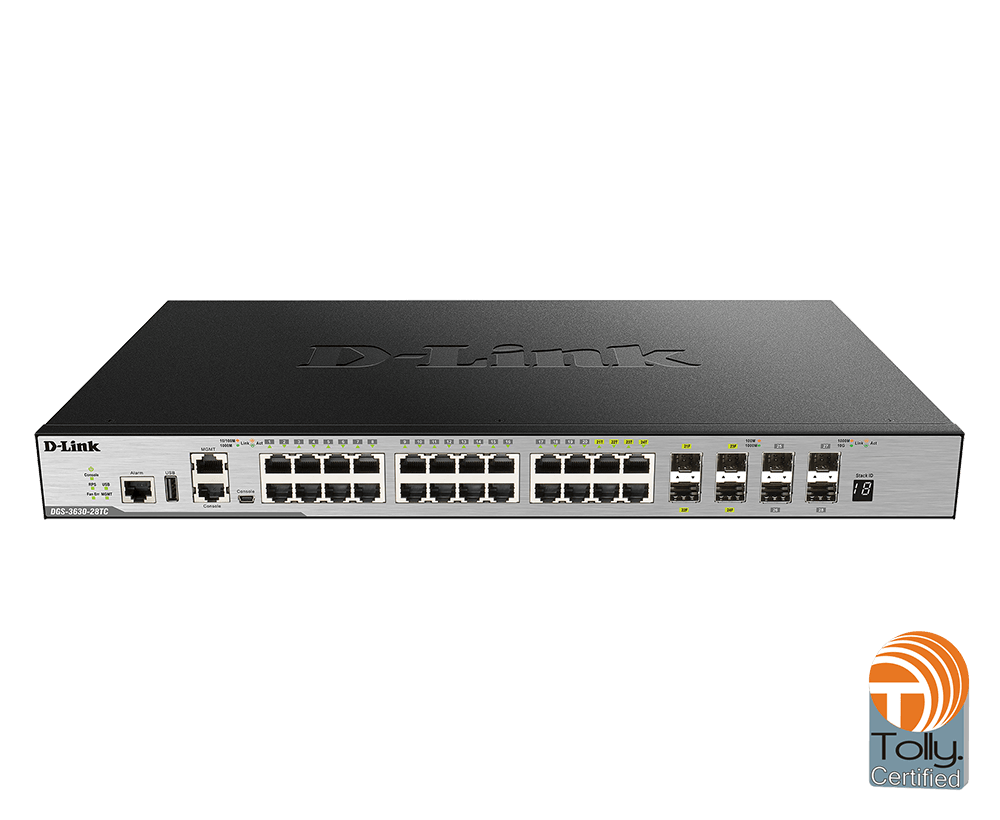

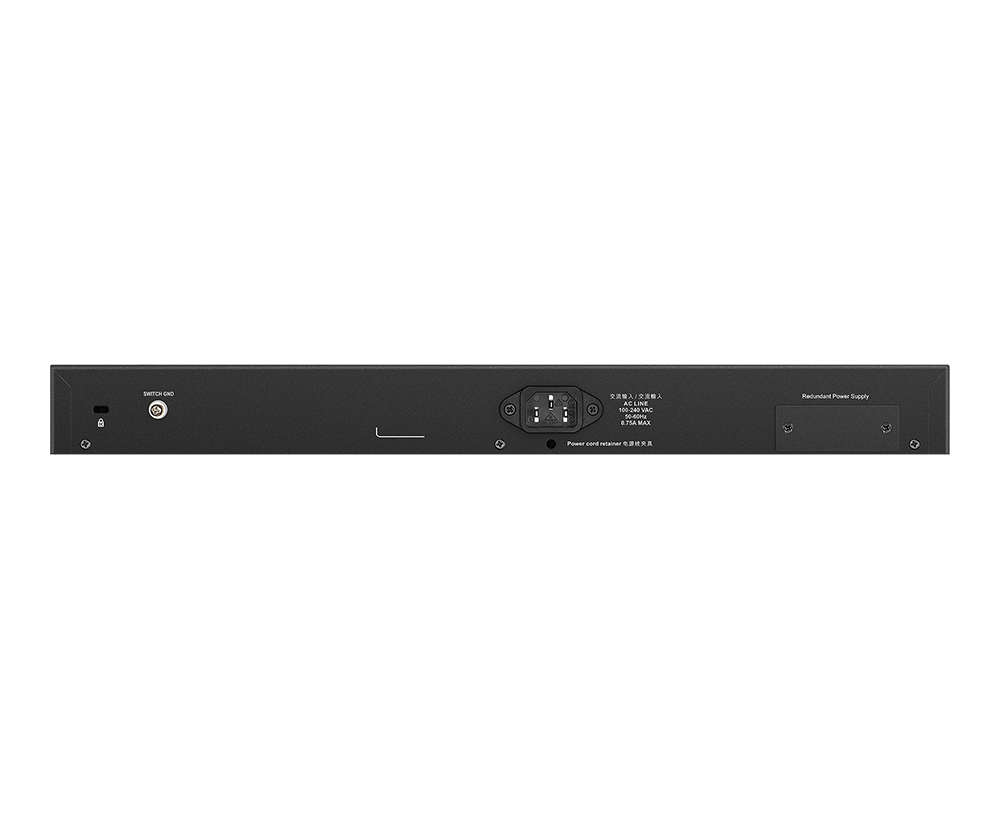

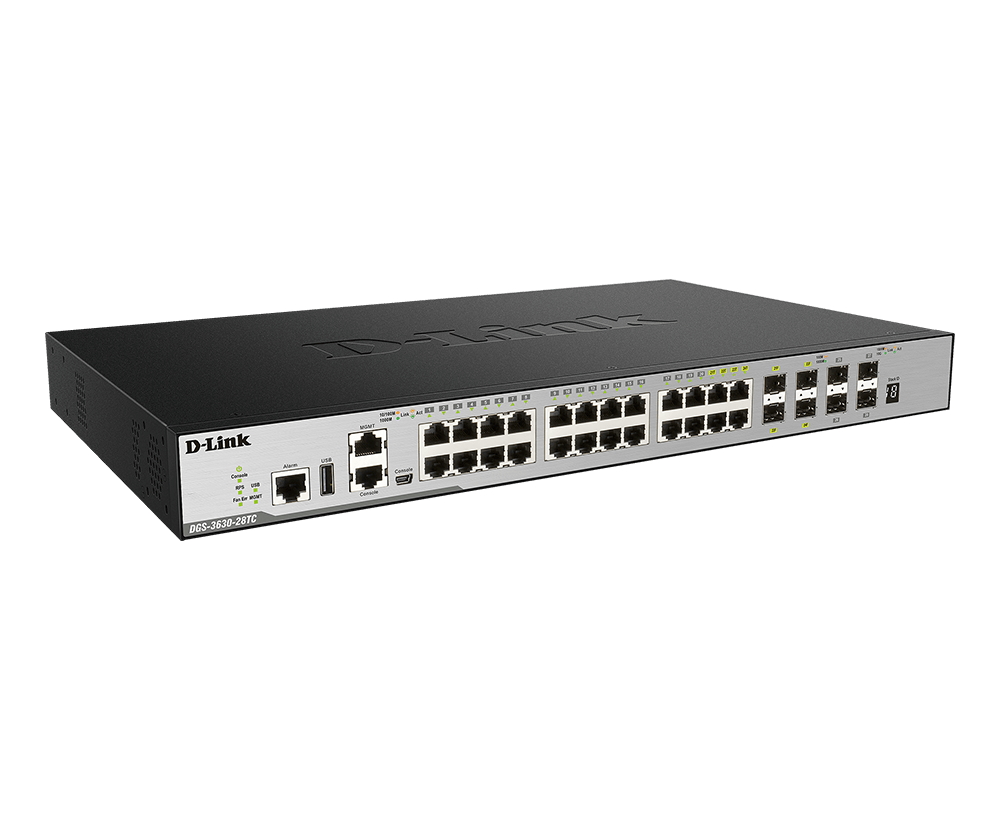

DGS-3630-28TC 28-Port Layer 3 Stackable Managed Gigabit Switch

High performance, flexibility, fault tolerance, and advanced software features for SMBs, SMEs, large enterprises, and ISPs.

- 20 x 10/100/1000BASE-T ports
- 4 x Combo 10/100/1000BASE-T/SFP ports
- 4 x 10G SFP+ ports
- 6 kV surge protection on all RJ-45 access ports
- Switch Resource Management (SRM) for flexible management of system resources
- Redundant Power Supply (RPS) support
- MPLS L2VPM/L3 VPN support
- Full L3 routing protocol support including OSPF, BGP, and ISIS for IPv4/IPv6
- SDN-enabled switch, compatible with Openflow 1.3

Specifications

- 10/100/1000BASE-T ports    20
- Combo 10/100/1000BASE-T/SFP ports    4
- 10G SFP+ ports    4
- RJ-45 and Mini-USB port    1
- RJ-45 Management Port    1
- RJ-45 Alarm port    1
- USB 2.0 port    1
- Switch Capacity    128 Gbps
- Max. Packet Forwarding Rate    95.24 Mpps
- Store & Forwarding Forwading    Yes
- Dimension    441mm x 259.8mm x 44mm
- Weight    3.74kg
- Operation Temperature    -5-50°C
- Storage Temperature    -40-70°C
- Operation Humidity    10%-95% RH
- Storage Humidity    5% ~ 95% RH
- Operating Altitude    Up to 2000 M
- Maximum Power Consumption    42.4 W
- Standby Power Consumption    28.1 Watt
- Maximum Heat Dissipation    144.58 BTU/h
- MTBF    300,190.46 hours
- Power Input    AC Input: 100 – 240 VAC, 50-60 Hz
- Redundant Power Supply    Yes
- CPU Speed    1GHz
- DRAM Size    1GB (Byte)–DDR3
- Flash Memory Size    1GB (Byte)
- Packet Buffer Size    4MB
- FAN    Yes
- Comply with RoHS 6    Yes
- Power Saving By Link Status    Yes
- Power Saving By Cable Length    Yes
- Power Saving By LED Shut-Off    Yes
- Power Saving By Port Shut-Off    Yes
- Power Saving By System Hibernation    Yes
- Energy Efficiency Ethernet (EEE)    Yes
- Physical Stacking    Yes
- Physical Stacking Bandwidth    80 G (support stacking trunk)
- Units Per Physical Stack    9
- Units Per SIM Stack    32
- D-Link Single IP Management (SIM)    Yes
- MAC Address Table Size    up to 68K (SRM's LAN mode)
-   Black Hole MAC Address    Yes
- 802.3x Flow Control    Yes
- Head-of-line (HOL) Blocking Prevention    Yes
- BPDU Filtering    Yes
- Root Guard    Yes
- Loop Guard    Yes
- 802.1D Spanning Tree (STP)    Yes
- 802.1w Rapid Spanning Tree (RSTP)    Yes
- 802.1s Multiple Spanning Tree (MSTP)    Yes
- Multiple ERPS Ring    Yes
- G.8032 ERPS    Yes (Support ERPSv2)
- Link Aggregation Group Per Device    32
- Max Port Per Link Aggregation Group    8
- 802.1AX Link Aggregation    Yes
- 802.3ad Link Aggregation    Yes
- Port Mirroring    Yes
- VLAN Mirroring    Yes
- RSPAN    Yes
- Flow-based (ACL) mirroring    Yes
- Jumbo Frame    12K Bytes
- L2 Protocol Tunneling    Yes
- Flex Link    Yes
- iSCSI Awareness    Yes
- Loopback Detection (LBD)    Yes
- IGMP Snooping    Yes
- Max IGMP Snooping Groups    up to 8K (refer to SRM)
- IGMP Snooping Fast Leave    Yes
- IGMP Proxy Reporting    Yes
- IGMP Authentication    Yes
- IGMP Accounting    Yes
- MLD Snooping    Yes
- MLD Snooping Groups    up to 4K (refer to SRM)
- MLD Snooping Fast Leave    Yes
- MLD Proxy Reporting    Yes
- PIM Snooping    Yes
- VLAN Groups    4,096
- Port-based VLAN    Yes
- MAC-based VLAN    Yes
- Subnet-based VLAN    Yes
- Voice VLAN    Yes
- Auto Surveillance VLAN    Yes (v1.4)
- GVRP    Yes
- Selective Q in Q    Yes
- VLAN Translation    Yes
- Asymmetric VLAN    Yes
- Private VLAN    Yes
- Super VLAN    Yes
- VLAN trunking    Yes
- 802.1Q VLAN    Yes
- 802.1v Protocol-based VLAN    Yes
- Double VLAN (Q in Q)    Yes
- ISM VLAN (Multicast VLAN)    Yes
- IP Interface    Yes
- Max Number of IP Interface    Yes
- Loopback Interface    Yes
- Null Interface    Yes
- ARP    Yes
- ARP Entries    up to 32K (SRM's IP mode)
- Gratuitous ARP    Yes
- ND Entries    up to 16K (SRM's IP mode)
- UDP Helper    Yes
- IPv6 Tunneling    Yes
- IPv6 Neighbor Discovery (ND)    Yes
- VRRP    Yes
- Routing Table Entry    16K (16,384)
- L3 Forwarding Table Entry    up to 32K (SRM' IP mode)
- Default Route    Yes
- Static Route    Yes
- Null Route    Yes
- Route Preference Setting    Yes
- Route Redistribution    Yes
- Equal-Cost Multi-Path Route (ECMP)    Yes
- Weighted-Cost Multi-Path Route (WCMP)    Yes
- Policy-based Route (PBR)    Yes
- Graceful Restart (GR) Helper    Yes
- Bidirectional Forwarding Detection (BFD)    Yes
- RIPv1    Yes
- RIPv2    Yes
- RIPng    Yes
- OSPFv2    Yes
- OSPFv3    Yes
- BGP4    Yes
- Announce on loopback interface    Yes
- L3 IP Multicast Entry    up to 8K (refer to SRM)
- IGMPv1    Yes
- IGMPv2    Yes
- IGMPv3    Yes
- IGMP Proxy    Yes
- Limited IP Multicast (IGMP Filtering)    Yes
- MLDv1    Yes
- MLDv2    Yes
- MLD Proxy    Yes
- Limited IP Multicast (MLD Filtering)    Yes
- DVMRPv3    Yes
- PIM-DM    Yes
- PIM-DM v6    Yes
- PIM-SM    Yes
- PIM-SM v6    Yes
- PIM-SSM    Yes
- PIM Sparse-Dense Mode (PIM-SDM)    Yes
- Multicast Source Discovery Protocol (MSDP)    Yes
- VRF-Lite    Yes
- Number of Queue    8
- Class of Service (CoS)    Yes
- Two Rate Three Color Marker (trTCM)    Yes
- Single Rate Three Color Marker (srTCM)    Yes
- Rate Limiting    Yes
- Time based QoS    Yes (based on ACL)
- Remark 802.1p priority    Yes
- Remark ToS/DSCP    Yes (Support remark IP precedence/DSCP)
- Queue Handling    Yes
- Strict Priority Queue (SPQ)    Yes
- Weighted Round Robin (WRR)    Yes
- Weighted Deficit Round Robin (WDRR)    Yes
- SPQ + WRR    Yes
- Weighted Random Early Detection (WRED)    Yes
- 802.1Qbb Priority-based Flow Control (PFC)    Yes (only for 10G port)
- Port-based Bandwidth Control    Yes
- Flow-based bandwidth Control    Yes
- Queue-based Bandwidth Control    Yes
- MAC Access List    Yes
- IP Access List    Yes
- IPv6 Access List    Yes
- Time based ACL    Yes
- CPU Interface Filtering    Yes
- Max Access Control List (ACL) Entries    3072
- SSH    Yes
- SSL    Yes
- Port Security    Yes
- Traffic Segmentation    Yes
- IP Source Guard    Yes
- DHCP Snooping    Yes
- IPv6 Snooping    Yes
- DHCPv6 Guard    Yes
- IPv6 ND Inspection    Yes
- D-Link Safeguard Engine    Yes
- L3 Control Packet Filtering    Yes
- DHCP Server Screening    Yes
- DHCP Client Filtering    Yes
- ARP Spoofing Prevention    Yes
- BPDU Attack Protection    Yes
- DoS Attack Prevention    Yes
- Broadcast/Multicast/Unicast Storm Control    Yes
- IP-MAC-Port Binding (IMPB)    Yes
- Dynamic ARP Inspection (DAI)    Yes
- IPv6 Route Advertisement (RA) Guard    Yes
- Duplicate Address Detection (DAD)    Yes
- NetBIOS/NetBEUI filtering    Yes
- Port based WAC Authentication    Yes
- Host based WAC Authentication    Yes
- Identity Driven WAC Policy Assignment    Yes
- Port based MAC Authentication    Yes
- Host based MAC Authentication    Yes
- Identity Driven MAC Policy Assignment    Yes
- Compound Authentication    Yes
- Guest VLAN    Yes
- Authentication for Management Access    Yes
- Privilege Level for Management Access    Yes
- RADIUS    Yes
- RADIUS Accounting    Yes
- Authentication Database Failover    Yes
- Trusted Host    Yes (via ACL)
- 802.1X    Yes
- Port based 802.1X Authentication    Yes
- Host based 802.1X Authentication    Yes
- Identity Driven 802.1X Policy Assignment    Yes
- Web-based Access Control (WAC)    Yes
- MAC-based Access Control (MAC)    Yes
- Microsoft® NAP Support    Yes
- TACACS+    Yes
- TACACS+ Accounting    Yes
- Cable Diagnostics    Yes
- Dying Gasp    Yes
- 802.3ah Ethernet Link OAM    Yes
- D-link Unidirectional Link Detection (DULD)    Yes
- 802.1ag Connectivity Fault Management (CFM)    Yes
- Y.1731 OAM    Yes
- Optical Transceiver Digital Diagnostic Monitoring (DDM)    Yes
- Network Time Protocol (NTP)    Yes
- Precision Time Protocol (PTP)    Yes
- Web-based GUI    Yes
- Telnet Server    Yes
- Telnet Client    Yes
- SNMP    Yes
- SNMP Trap    Yes
- TFTP Client    Yes
- FTP Client    Yes
- ZModem    Yes
- System Log    Yes (RFC3164 only)
- Command Logging    Yes
- SMTP    Yes
- RMONv1    Yes
- RMONv2    Yes
- LLDP    Yes
- LLDP-MED    Yes
- DHCP Auto-configuration    Yes
- DHCP Auto-image    Yes
- DHCP relay    Yes
- DHCP Server    Yes
- Flash file system    Yes
- Multiple Images    Yes
- Multiple Configurations    Yes
- Editable Login Banner    Yes
- Editable System Prompt    Yes
- DNS Relay    Yes
- DNS Client    Yes
- Debug Command    Yes
- Password Recovery    Yes
- Password Encryption    Yes
- MTU Setting    Yes
- Ping    Yes
- Traceroute    Yes
- sFlow    Yes
- D-Link Network Assistant    Yes
- Command Line Interface (CLI)    Yes (Industrial-Like)
- Secured FTP (SFTP) Client    Yes
- Secured FTP (SFTP) Server    Yes
- Remote Copy Protocol (RCP)    Yes
- D-Link Discover Protocol (DDP)    Yes (v0.26)
- DHCP/BootP Client    Yes
- Microsoft® Network Load Balancing (NLB)    Yes
- Switch Resource Management (SRM)    Yes
- IPv6 Ready Logo    Yes
- Surge/Lightning Protection (All Ethernet Ports)    6kV
