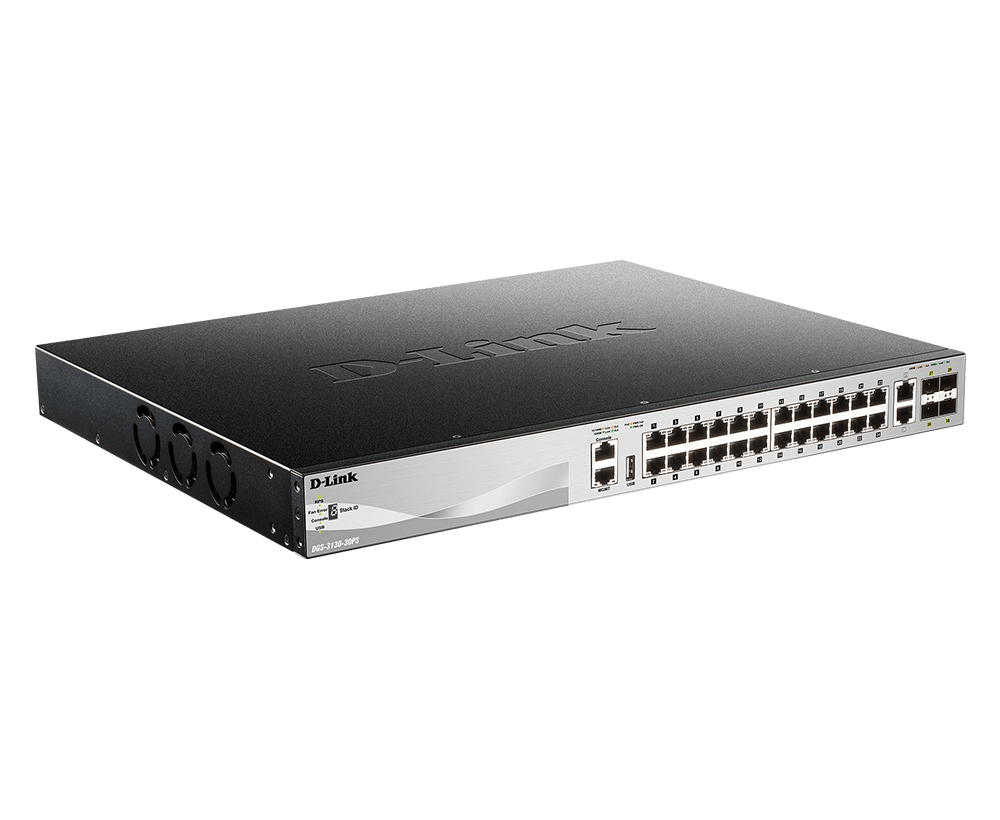

DGS-3130-30PS 30-Port Lite Layer 3 Stackable Managed PoE Switch

Lite Layer 3 stackable managed switch for a secure enterprise or metro Ethernet access network.

- 24 x 10/100/1000BASE-T PoE ports
- 2 x 10GBASE-T and 4 x 10G SFP+ ports provide all the uplink capacity your network needs
- Premium L2 and L3 features effortlessly improve network efficiency and reduce unnecessary data transfer
- High redundancy features to provide professional-grade reliability and a longer product life:
— Dual power inputs
— Ethernet Ring Protection Switching with <50ms recovery time
— 6 kV surge protection protects the device and those connected from unexpected surges
— 802.1d/w/s Spanning Tree Protocol avoids potentially network crippling loops
- RIP/RIPng and OSFPv2/v3 dynamically maps out your network, aiding data to get to its destination via the fastest route possible
- A formidable PoE budget of 370 W allows powering of numerous external devices (further expandable to 740 W)
- Expand capacity in a flash with physical stacking up to 9 units
- 80 Gbps per device physical stacking bandwidth
- The Smart Fan self-adjusts accordingly to maintain optimal operating temperatures

Specifications

- 802.1X    Yes
- Port based 802.1X Authentication    Yes
- Identity Driven 802.1X Policy Assignment    Yes
- Host based 802.1X Authentication    Yes
- Port based WAC Authentication    Yes
- Web-based Access Control (WAC)    Yes
- MAC-based Access Control (MAC)    Yes
- Identity Driven WAC Policy Assignment    Yes
- Host based WAC Authentication    Yes
- Host based MAC Authentication    Yes
- Port based MAC Authentication    Yes
- Guest VLAN    Yes
- Identity Driven MAC Policy Assignment    Yes
- Compound Authentication    Yes
- Authentication for Management Access    Yes
- Microsoft® NAP Support    Yes
- RADIUS Accounting    Yes
- RADIUS    Yes
- Privilege Level for Management Access    Yes
- TACACS+    Yes
- Authentication Database Failover    Yes
- Trusted Host    Yes
- Max Access Control List (ACL) Entries    Yes
- MAC Access List    Yes
- IP Access List    Yes
- IPv6 Access List    Yes
- Time based ACL    Yes
- CPU Interface Filtering    Yes
- Port-based Bandwidth Control    Yes
- Flow-based bandwidth Control    Yes
- Queue-based Bandwidth Control    Yes
- Class of Service (CoS)    Yes
- Two Rate Three Color Marker (trTCM)    Yes
- Single Rate Three Color Marker (srTCM)    Yes
- Weighted Random Early Detection (WRED)    Yes
- Simple Random Early Detection (SRED)    Yes
- G.8032 ERPS    Yes
- Multiple ERPS Ring    Yes
- 802.3x Flow Control    Yes
- Head-of-line (HOL) Blocking Prevention    Yes
- Store & Forwarding Forwading    Yes
- Control Module Redundancy    Yes
- Comply with RoHS 6    Yes
- Energy Efficiency Ethernet (EEE)    Yes
- Power Saving By Link Status    Yes
- Power Saving By Cable Length    Yes
- Power Saving By LED Shut-Off    Yes
- Power Saving By Port Shut-Off    Yes
- Power Saving By Port Standby    Yes
- Power Saving By System Hibernation    Yes
- Time-based PoE    Yes
- 10/100/1000BASE-T PoE ports    24
- 10GBASE-T ports    2
- 10G SFP+ ports    4
- RJ-45 Console port    1
- RJ-45 Management Port    1
- 1000Base-T Interface    0
- 1000Base-T PoE Interface    24
- 1000M SFP Interface    0
- 100M SFP Interface    0
- 10G SFP+ Interface    4
- 10GBase-T Interface    2
- Console Port    1
- USB 2.0 port    1
- USB Port    1
- CPU Speed    1.25GHz
- DRAM Size    1GB DDR4
- Flash Memory Size    256MB NAND
- Packet Buffer Size    2MB
- FAN    Yes
- Jumbo Frame    9,216 (9K) Bytes
- Loopback Detection (LBD)    Yes
- L2 Protocol Tunneling    Yes
- MAC Address Table Size    16,384 (16K)
- Black Hole MAC Address    Yes
- IGMP Snooping    Yes
- Max IGMP Snooping Groups    1,024
- IGMP Snooping Fast Leave    Yes
- IGMP Proxy Reporting    Yes
- IGMP Authentication    Yes
- MLD Snooping    Yes
- MLD Snooping Groups    1,024
- MLD Snooping Fast Leave    Yes
- MLD Proxy Reporting    Yes
- IP Interface    Yes
- Max Number of IP Interface    16
- Loopback Interface    Yes
- ARP    Yes
- ARP Entries    2,048
- Gratuitous ARP    Yes
- ARP Proxy    Yes
- IPv6 Neighbor Discovery (ND)    Yes
- ND Entries    1,024
- UDP Helper    Yes
- Routing Table Entry    1,024
- L3 Forwarding Table Entry    4,096
- Equal-Cost Multi-Path Route (ECMP)    Yes
- Weighted-Cost Multi-Path Route (WCMP)    Yes
- Default Route    Yes
- Static Route    Yes
- Policy-based Route (PBR)    Yes
- Null Route    Yes
- Route Preference Setting    Yes
- Route Redistribution    Yes
- 802.1AX Link Aggregation    Yes
- 802.3ad Link Aggregation    Yes
- Link Aggregation Group Per Device    32
- Max Port Per Link Aggregation Group    8
- Web-based GUI    Yes
- Command Line Interface (CLI)    Yes
- Telnet Server    Yes
- Telnet Client    Yes
- SNMP    Yes
- SNMP Trap    Yes
- TFTP Client    Yes
- Secured FTP (SFTP) Server    Yes
- ZModem    Yes
- System Log    Yes
- Command Logging    Yes
- SMTP    Yes
- RMONv1    Yes
- RMONv2    Yes
- LLDP    Yes
- LLDP-MED    Yes
- D-Link Discover Protocol (DDP)    Yes
- DHCP/BootP Client    Yes
- DHCP Auto-configuration    Yes
- DHCP relay    Yes
- DHCP Server    Yes
- DHCPv6 Prefix Delegation (PD)    Yes
- PPPoE Circuit-ID Tag Insertion    Yes
- Flash file system    Yes
- Dual Images    Yes
- Multiple Images    Yes
- Dual Configurations    Yes
- Multiple Configurations    Yes
- Editable Login Banner    Yes
- Editable System Prompt    Yes
- DNS Client    Yes
- Debug Command    Yes
- Password Recovery    Yes
- Password Encryption    Yes
- MTU Setting    Yes
- Ping    Yes
- Traceroute    Yes
- Microsoft® Network Load Balancing (NLB)    Yes
- sFlow    Yes
- Port Mirroring    Yes
- Flow-based (ACL) mirroring    Yes
- RSPAN    Yes
- Cable Diagnostics    Yes
- 802.3ah Ethernet Link OAM    Yes
- D-link Unidirectional Link Detection (DULD)    Yes
- Dying Gasp    Yes
- 802.1ag Connectivity Fault Management (CFM)    Yes
- Y.1731 OAM    Yes
- Optical Transceiver Digital Diagnostic Monitoring (DDM)    Yes
- Switch Capacity    168 Gbps
- Max. Packet Forwarding Rate    125 Mpps
- Maximum PoE Budget    370.00W (740.00W when DPS-700 is connected)
- PoE Budget    370 W<br> 740 W (with DPS-700 RPS)
- Remark 802.1p priority    Yes
- Remark ToS/DSCP    Yes
- Rate Limiting    Yes
- Time based QoS    Yes
- Power Input    AC：100 ~ 240 V
- Redundant Power Supply    DPS-700
- Number of Queue    8
- Queue Handling    Yes
- Weighted Round Robin (WRR)    Yes
- Strict Priority Queue (SPQ)    Yes
- Weighted Deficit Round Robin (WDRR)    Yes
- SPQ + WRR    Yes
- RIPv1    Yes
- RIPv2    Yes
- RIPng    Yes
- SSH    Yes
- SSL    Yes
- Broadcast/Multicast/Unicast Storm Control    Yes
- Port Security    Yes
- IP-MAC-Port Binding (IMPB)    Yes
- IP Source Guard    Yes
- Traffic Segmentation    Yes
- Dynamic ARP Inspection (DAI)    Yes
- IPv6 Snooping    Yes
- DHCP Snooping    Yes
- IPv6 Route Advertisement (RA) Guard    Yes
- DHCPv6 Guard    Yes
- D-Link Safeguard Engine    Yes
- L3 Control Packet Filtering    Yes
- IPv6 ND Inspection    Yes
- DHCP Server Screening    Yes
- NetBIOS/NetBEUI filtering    Yes
- DHCP Client Filtering    Yes
- ARP Spoofing Prevention    Yes
- BPDU Attack Protection    Yes
- DoS Attack Prevention    Yes
- 802.1D Spanning Tree (STP)    Yes
- 802.1w Rapid Spanning Tree (RSTP)    Yes
- 802.1s Multiple Spanning Tree (MSTP)    Yes
- BPDU Filtering    Yes
- Root Restriction    Yes
- BPDU Restriction    Yes
- Physical Stacking    Yes
- Physical Stacking Bandwidth    80G, with stacking port trunking
- Units Per Physical Stack    9
- Maximum Heat Dissipation    1609.41 BTU/h (with 370 W PoE load) <br>3043.97 BTU/h (with 740 W PoE load)
- Dimension    440(W) x 44(H) x 350(D) mm
- Maximum Power Consumption    471.67 W (with 370 W PoE load) <br>892.1 W (with 740 W PoE load)
- MTBF    409,054 hours
- Operating Altitude    2000m
- Operation Humidity    10% ~ 90% RH
- Operation Temperature    0 ~ 50 °C
- Standby Power Consumption    52.44W
- Storage Humidity    5% ~ 90% RH
- Storage Temperature    - 40 ~ 70 °C
- Weight    4.66Kg
- Network Time Protocol (NTP)    Yes
- Simple Network Time Protocol (SNTP)    Yes
- D-Link Single IP Management (SIM)    Yes
- Units Per SIM Stack    32
- 802.1Q VLAN    Yes
- VLAN Groups    4094
- Port-based VLAN    Yes
- 802.1v Protocol-based VLAN    Yes
- MAC-based VLAN    Yes
- Voice VLAN    Yes
- Auto Surveillance VLAN    Yes
- GVRP    Yes
