EnGenius ECW336 Cloud Managed Wi-Fi 6E 4×4 Indoor Access Point
เพิ่มเมื่อ: 2023-06-29 16:13:27.0
แก้ไขล่าสุด: 2023-06-29 18:25:41.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comECW336 Cloud Managed Wi-Fi 6E 4×4 Indoor Access Point

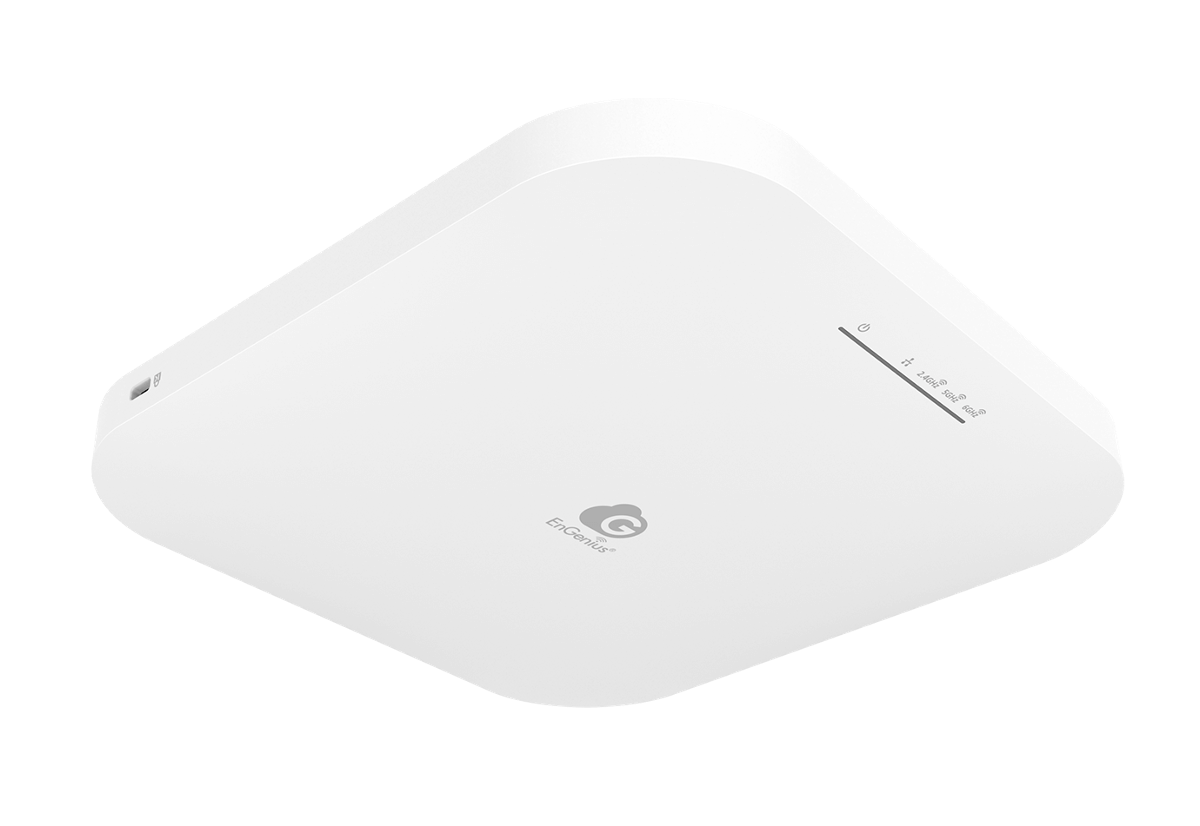

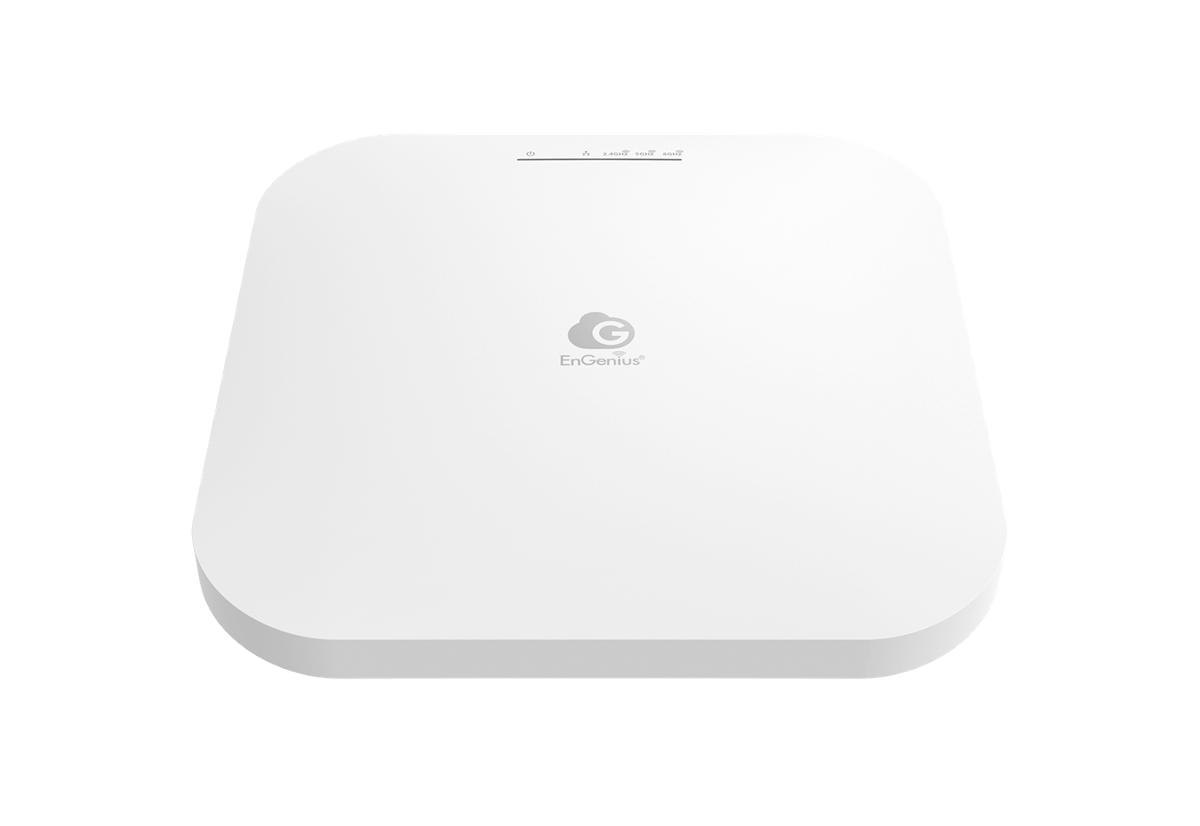

EnGenius ECW336 Cloud Managed Wi-Fi 6E 4×4 Indoor Access Point
ECW336 Cloud Managed Wi-Fi 6E 4×4 Indoor Access Point
Product Highlight
EnGenius Cloud Managed Wi-Fi 6 4x4x4 Access Point ECW336 supports tri-concurrent 802.11ax Wi-Fi 6 architecture, delivering supercharged speeds up to 4,800 Mbps on 6 GHz, 2,400 Mbps (5 GHz), and up to 1,200 Mbps (2.4 GHz). With WPA3 & WPA2-AES authentication support, remote monitoring & troubleshooting, and Mesh Wireless Support for optimized signal quality, it's easy to set up and manage an unlimited number of APs with the EnGenius Cloud App.
- Tri- concurrent 802.11ax Wi-Fi 6 architecture & backward-compatible.
- Supercharged speeds up to 4,800 Mbps on 6 GHz, 2,400 Mbps (5 GHz) & up to1,200 Mbps (2.4 GHz).
- 5 GbE realizes greater throughput and supports 802.3at & 48V PoE input for flexible installation over 100 meters (328 feet).
- WPA3 & WPA2-AES authentication support.
- Cloud Managed with AP & Mesh mode.
- Quick-scan device register & configuration and remote monitoring & troubleshooting.
- Cloud manage an unlimited number of APs from anywhere with the EnGenius Cloud App.
- Mesh Wireless Support simplifies setup, optimizes signals & self-heals
Technical Specifications
Standards
- IEEE 802.11ax on 2.4 GHz
- IEEE 802.11ax on 5 GHz
- IEEE 802.11ax on 6 GHz
- Backward compatible with 802.11a/b/g/n/ac
Antenna
- 4 x 2.4 GHz: 5 dBi(Integrated Omni-Directional)
- 4 x 5 GHz: 6 dBi(Integrated Omni-Directional)
- 4 x 6 GHz: 5 dBi(Integrated Omni-Directional)

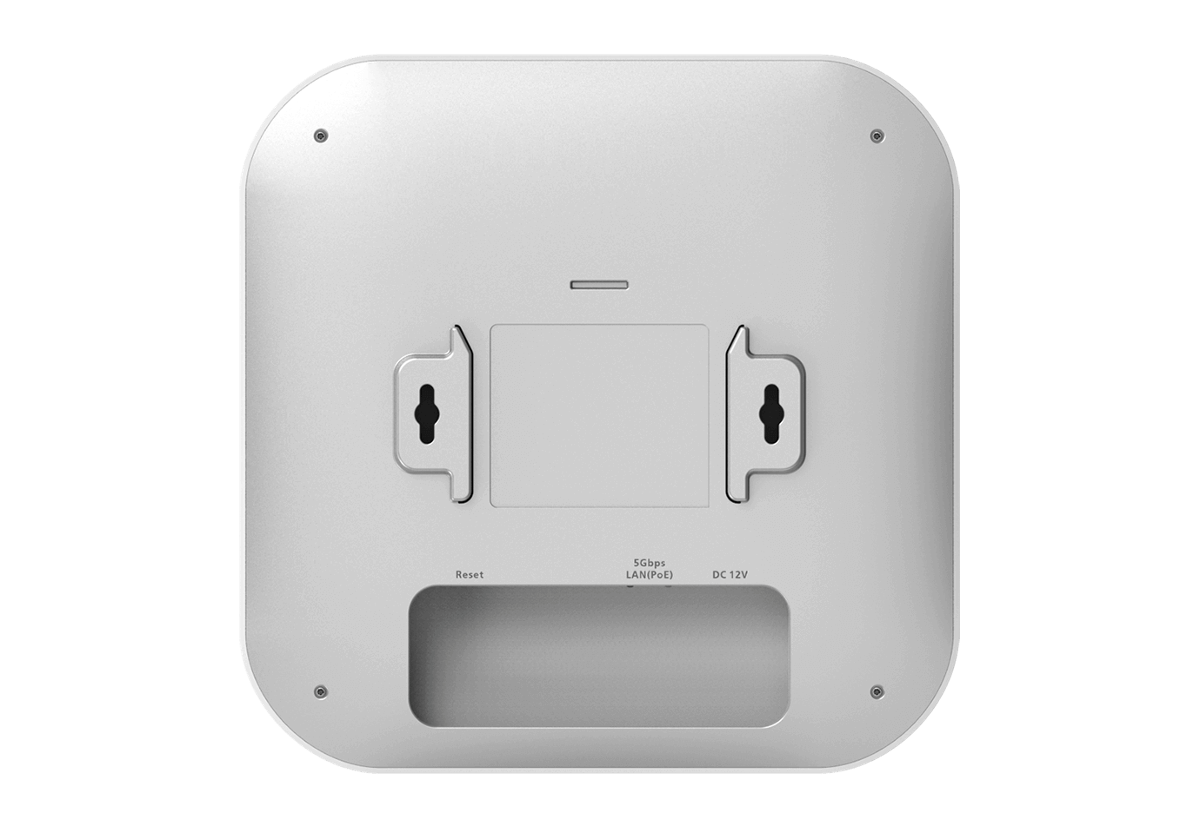

Physical Interface
- 1 x 10/100/1000/2500/5000 Ethernet Port (PoE+)
- 1 x DC Jack
- 1 x Reset Button
LED Indicators
- 1 x Power
- 1 x LAN
- 1 x 2.4 GHz
- 1 x 5 GHz
- 1 x 6 GHz
Power Source
- Power-over-Ethernet: 802.3at Input
- IEEE 802.11e Compliant Source
- 12VDC /2A Power Adapter
Maximum Power Consumption
- 22.5W
Wireless & Radio Specifications
Operating Frequency
Tri-Radio Concurrent 2.4 GHz & 5 GHz & 6GHz
Operation Modes
AP, AP Mesh, Mesh
Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz,5725 MHz ~ 5850 MHz
6 GHz: 5925MHz ~ 6425MHz, 6525MHz ~ 6875MHz
Transmit Power
Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz
Up to 23 dBm on 6 GHz
(Maximum power is limited by regulatory domain)
Tx Beamforming (TxBF)
Radio Chains/Spatial Stream
4 × 4:4
SU-MIMO
Four (4) spatial stream Single User (SU) MIMO for up to 1148 Mbps wireless data rate with HE40 bandwidth to a 4×4 wireless client device under the 2.4GHz radio. Four (4) spatial stream Single User (SU) MIMO for up to 2400 Mbps wireless data rate with HE80 to a 4×4 wireless device under the 5GHz radio. Four (4) spatial stream Single User (SU) MIMO for up to 4800 Mbps wireless data rate with HE160 to a 4×4 wireless device under the 6GHz radio.
MU-MIMO
Four (4) spatial streams Multiple (MU)-MIMO up to 4800 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 6GHz simultaneously. Four (4) spatial streams Multiple (MU)-MIMO up to 2,400 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously. Four (4) spatial streams Multiple (MU)-MIMO up to 1,148 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.
Supported Data Rates (Mbps):
802.11ax:
2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2,400 (MCS0 to MSC11, NSS = 1 to 4)
6 GHZ: 18 to 4,800 (MCS0 to MSC13, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 (MCS0 to MCS31)
802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)
Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)
Channelization
802.11ax supports high efficiency throughput (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256- QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
Max Concurrent User
512 Per radio
Management Features
Multiple BSSID
8 SSIDs on both 2.4GHz, 5GHz & 6GHz bands
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Complaint With IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Fast Roaming
802.11r/k
Wireless Security
WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Environmental & Physical
Temperature Range
Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
Dimensions & Weight
ECW336 Device
Weight: 630 g
Width: 205 mm
Length: 205 mm
Height: 33.2 mm
Package Contents
1 – ECW336 Cloud Managed Indoor Access Point
1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 – Ceiling and Wall Mount Screw Kit
1 – Quick Installation Guide
Compliance Regulatory
FCC
CE
IC
