ROBUSTEL R3000 Lite Industrial Dual SIM
เพิ่มเมื่อ: 2023-02-08 18:04:32.0
แก้ไขล่าสุด: 2023-02-08 18:09:26.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.com
รายละเอียด:
R3000 Lite Industrial Dual SIM Cellular VPN Router.รับประกัน 3ปี
R3000 Lite Industrial Dual SIM Cellular VPN Router.รับประกัน 3ปี
10900.00 บาท

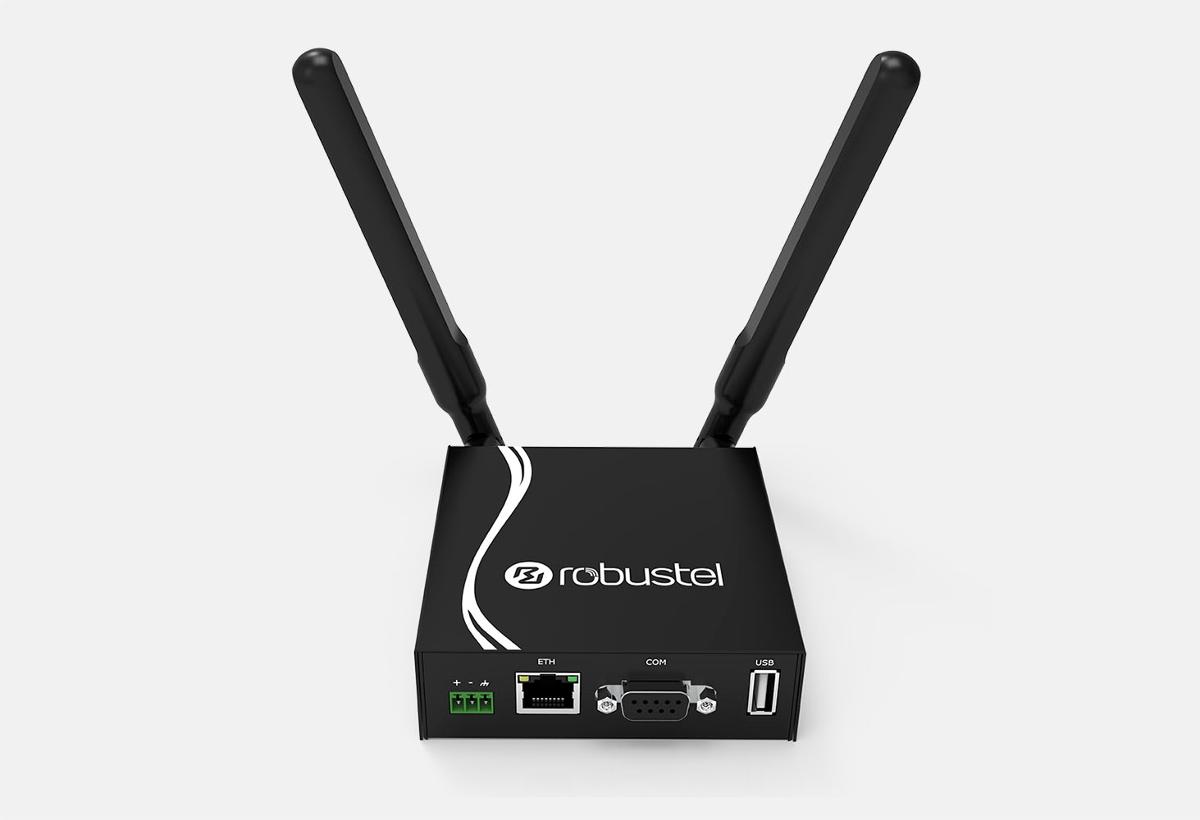

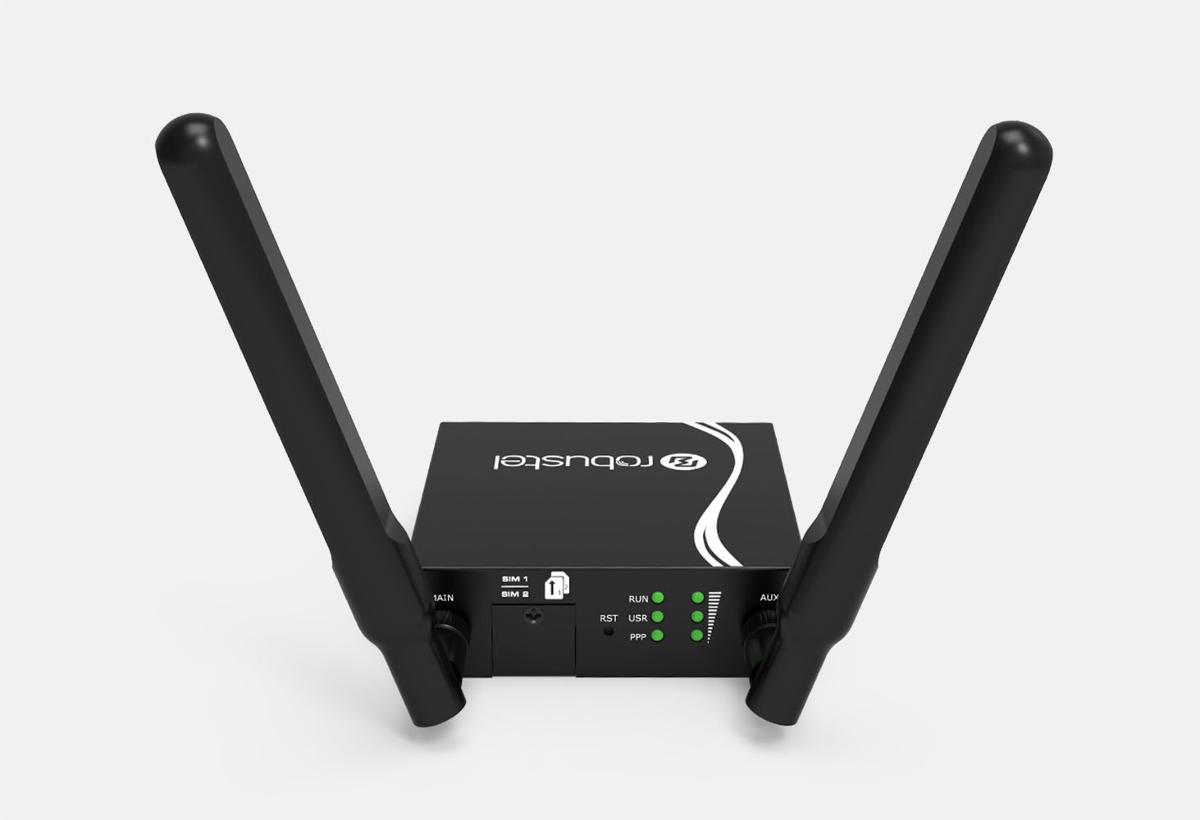

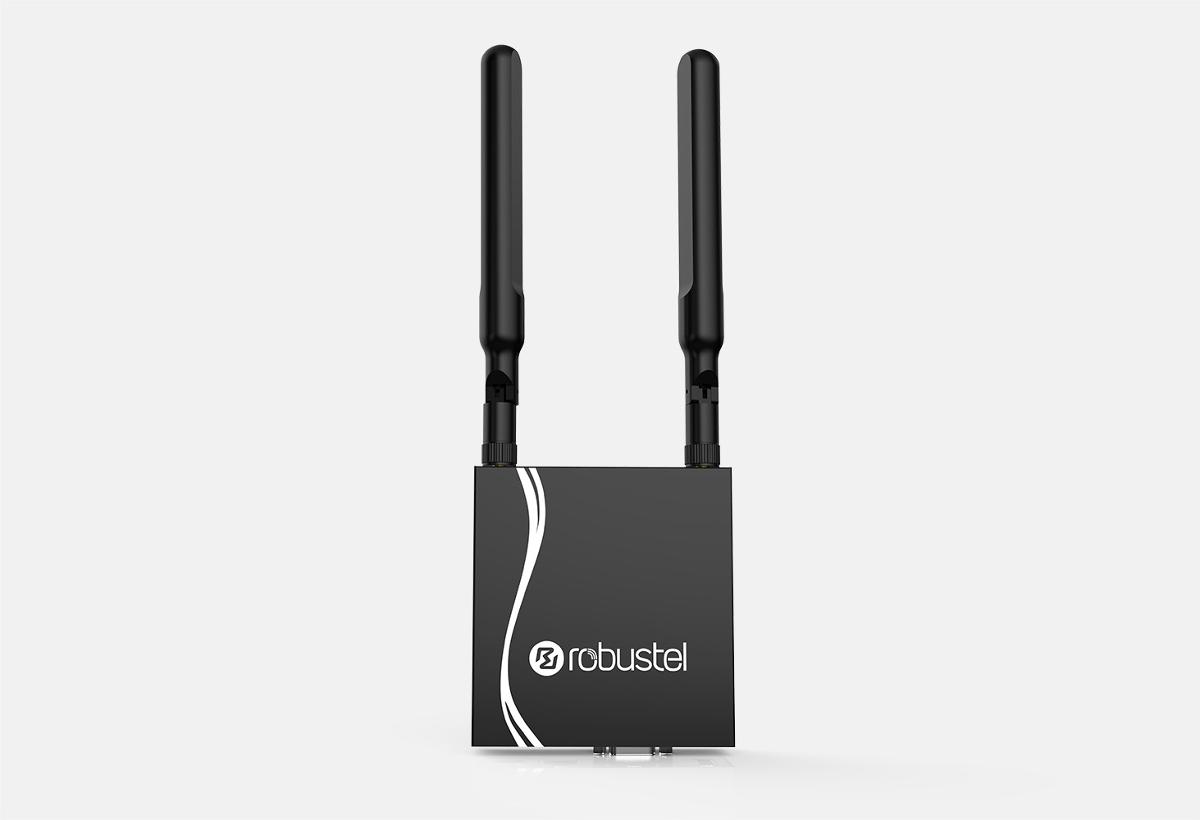

ROBUSTEL R3000 Lite Industrial Dual SIM
R3000 Lite is a cost effective, industrial-grade VPN gateway designed for cost-sensitive M2M applications.
Key Features
- Dual SIM redundancy for persistent 2G/3G/4G cellular network connections
- RobustOS + SDK + App
- IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
- Management and maintenance via Web/CLI/SMS/SNMP/RCMS
- Robust industrial design (9 to 36V DC, desktop or wall mounting or DIN rail mounting)
| Cellular Interface | |
| Number of ports | 2 (MAIN + AUX) |
| Connector | SMA-K |
| SIM | 2 Mini SIM (2FF) |
| Standards | GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE |
| Ethernet Interface | |
| Number of ports | 1 x 10/100 Mbps LAN port |
| Magnet isolation protection | 1.5 KV |
| Serial Interfaces | |
| Number of ports | 1 x RS-232 and 1 x RS-485 |
| Connector | DB9, female |
| ESD protection | ±15 KV |
| Baud rate | 300 bps to 230400 bps |
| Flow control | RTS/CTS (for RS232) |
| Others | |
| Reset button | 1 x RST |
| Expansion | 1 x USB 2.0 host up to 480 Mbps |
| LED indicators | 1 x RUN, 1 x PPP, 1 x USR, 3 x RSSI |
| Built-in | RTC, Watchdog, Timer |
| Software(Basic features of RobustOS) | |
| Network protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc. |
| VPN tunnel | IPsec, OpenVPN, GRE |
| Firewall | DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Management | Web, CLI, SMS |
| Serial port | Transparent, TCP Client/Server, UDP, Modbus RTU Gateway |
| App Center | |
| Apps | L2TP, PPTP, DMVPN, RobustVPN, VRRP, QoS, Data Guard, WLAN Multi AP, SNMP, Language, RCMS |
| *Request on demand. For more Apps please visit www.robustel.com. | |
| SDK | |
| Supported programming language | C, C++ |
| Flash available for SDK | 64 MB |
| RAM available for SDK | 64 MB |
| Power Supply and Consumption | |
| Power supply interface | 3.5 mm terminal block |
| Input voltage | 9 to 36 VDC |
| Power consumption | Idle: 100 mA @ 12 V |
| Data link: 400 mA (peak) @ 12 V | |
| Physical Characteristics | |
| Ingress protection | IP30 |
| Housing & Weight | Metal, 305g |
| Dimension | 105 mm x 98 mm x 29.5 mm |
| Installation |
Desktop or wall mounting or 35 mm DIN rail mounting |
| Regulatory and Type Approvals | |
| Environmental | RoHS 2.0, WEEE |
| EMI | EN 55032: 2012/AC: 2013 (CE & RE) Class B |
| EMS | IEC 61000-4-2 (ESD) Contact Level 2; Air Level 3
IEC 61000-4-3 (RS) Level 2 IEC 61000-4-4 (EFT) Level 2 IEC 61000-4-5 (Surge) Level 3 IEC 61000-4-6 (CS) Level 2 |
