EnGenius ECW230 AX3600 802.11ax Cloud Managed 4×4 Indoor Wireless Access Point

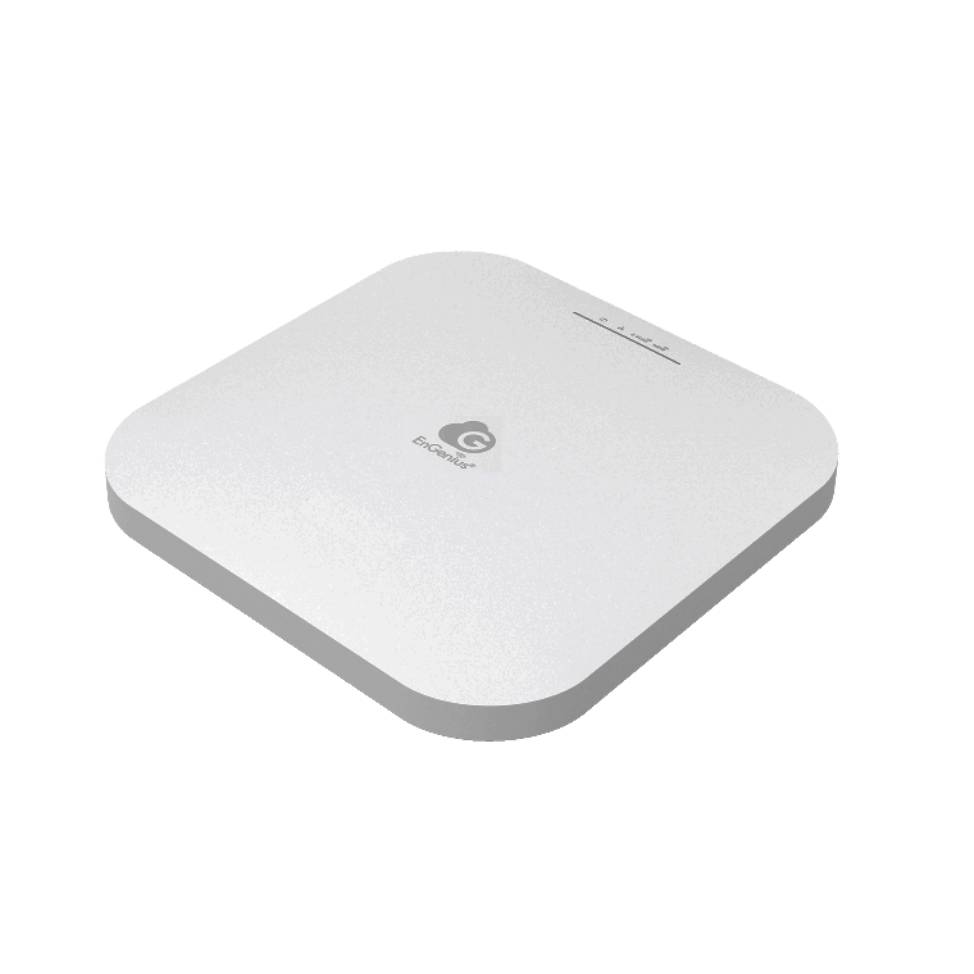

ECW230 AX3600 802.11ax Cloud Managed 4×4 Indoor Wireless Access Point
Product Highlight
EnGenius Cloud Managed Wi-Fi 6 4×4 Indoor Access Point ECW230 supports dual concurrent 802.11ax Wi-Fi 6 architecture, delivering supercharged speeds up to 2,400 Mbps (5 GHz), and up to 1,200 Mbps (2.4 GHz). With WPA3 & WPA2-AES authentication support, remote monitoring & troubleshooting, and Mesh Wireless Support for optimized signal quality, it's easy to set up and manage an unlimited number of APs with the EnGenius Cloud App.
- Dual concurrent 802.11ax architecture & backward-compatible.
- Supercharged speeds up to 2,400 Mbps (5 GHz) & up to1,200Mbps (2.4 GHz).
- 2.5 GbE realizes greater throughput and supports 802.3at & 48V PoE input for flexible installation over 100 meters (328 feet).
- WPA3 & WPA2-AES authentication support.
- Cloud Managed with AP & Mesh mode.
- Quick-scan device register & configuration and remote monitoring & troubleshooting.
- Cloud manages an unlimited number of APs from anywhere with the EnGenius Cloud App.
- Mesh wireless support simplifies setup, optimizes signals, and enables self-heals.
Technical Specifications
Standards
- IEEE 802.11ax on 2.4 GHz
- IEEE 802.11ax on 5 GHz
- Backward compatible with 802.11a/b/g/n/ac
Antenna
- 4 x 2.4 GHz: 5 dBi
- 4 x 5 GHz: 6 dBi
- Integrated Omni-Directional Antenna

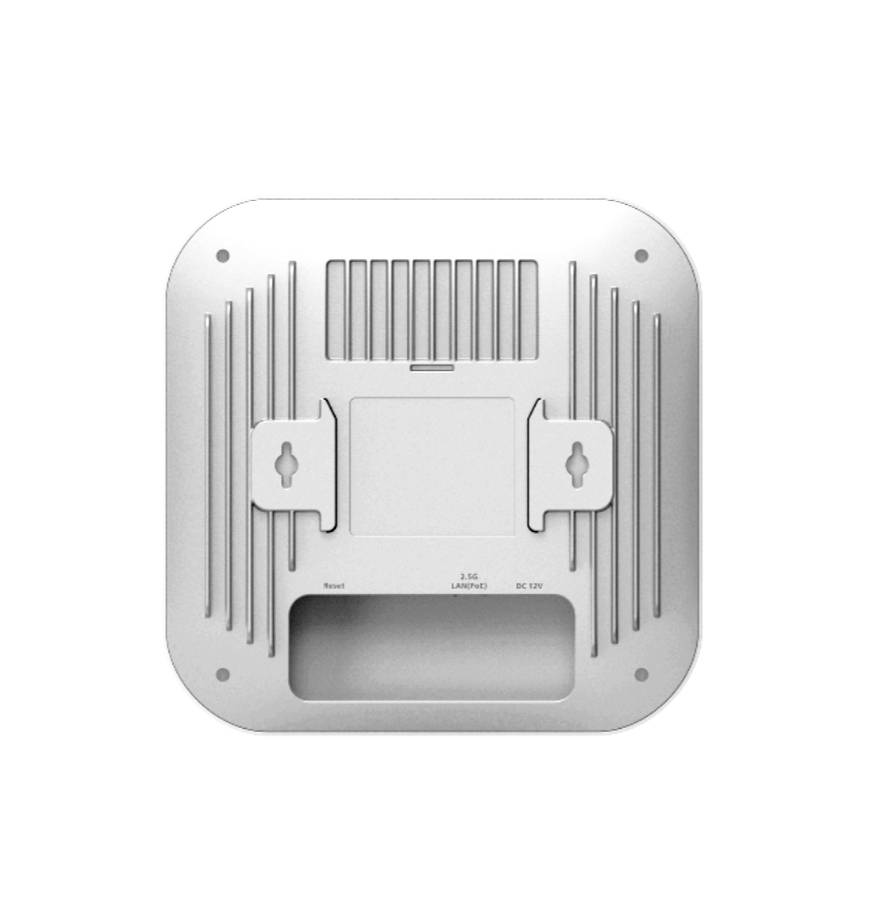

Physical Interface
- 1 x 10/100/1000/2500 Ethernet Port (PoE+)
- 1 x DC Jack
- 1 x Reset Button
LED Indicators
- 1 x Power
- 1 x LAN
- 1 x 2.4 GHz
- 1 x 5 GHz
Power Source
- Power-over-Ethernet: 802.3at Input
- IEEE 802.11e Compliant Source
- 12VDC /2A Power Adapter (optional)
Maximum Power Consumption
- 19.5W
Wireless & Radio Specifications
Operating Frequency
- Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes
- AP, AP Mesh, Mesh
Frequency Radio
- 2.4 GHz: 2400 MHz~2482 MHz
- 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power Up to 20 dBm on 2.4 GHz
- Up to 23 dBm on 2.4 GHz
- Up to 23 dBm on 5 GHz
(Maximum power is limited by regulatory domain)
Tx Beamforming (TxBF)
Radio Chains/Spatial Stream
- 4 × 4:4
SU-MIMO
- Four (4) spatial stream Single User (SU) MIMO for up to 1,148 Mbps wireless data rate with HE40 bandwidth to a 4×4 wireless client device under the 2.4 GHz radio. Four (4) spatial stream Single User (SU) MIMO for up to 2,400 Mbps wireless data rate with HE80 to a 4×4 wireless device under the 5 GHz radio.
MU-MIMO
- (4) spatial streams Multiple (MU)-MIMO up to 2,400 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 5 GHz simultaneously.
Four (4) spatial streams Multiple (MU)-MIMO up to 1,148 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 2.4 GHz simultaneously
Supported Data Rates (Mbps):
- 802.11ax:
- 2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4)
- 5 GHz: 18 to 2,400 (MCS0 to MSC11, NSS = 1 to 4)
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 36, 48, 54
- 802.11n: 6.5 to 600 (MCS0 to MCS31)
- 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)
Supported Radio Technologies
- 802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
- 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
- 802.11b: Direct-sequence spread-spectrum (DSSS)
Channelization
- 802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz
- 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
- 802.11n supports high throughput (HT) —HT 20/40 MHz
- 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
- 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation
- 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
- 802.11b: BPSK, QPSK, CCK
Max Concurrent User
- 512 Per Radio
Management Features
Multiple BSSID
- support 8 SSIDs on both 2.4 GHz and 5 GHz
VLAN Tagging
- Supports 802.1q SSID-to-VLAN Tagging
- Cross-Band VLAN Pass-Through
- Management VLAN
Spanning Tree
- Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
- Complaint With IEEE 802.11e Standard
WMM
Fast Roaming
- 802.11r/k
Wireless Security
- WPA2-PSK
- WPA2-Enterprise
- WPA3-PSK
- WPA3-Enterprise
- Hide SSID in Beacons
- Wireless STA (Client) Connected List
- Client Isolation
Environmental & Physical
Temperature Range
- Operating: 32ºF~104ºF (0 ºC~40 ºC)
- Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)
Humidity (non-condensing)
- Operating: 90% or less
- Storage: 90% or less
Dimensions & Weight
ECW230 Device
- Weight: 597 g
- Width: 205 mm
- Length: 205 mm
- Height: 33.2 mm
Package Contents
- 1 – ECW230 Cloud Managed Indoor Access Point
- 1 – Ceiling Mount Base (9/16” Trail)
- 1 – Ceiling Mount Base (15/16” Trail)
- 1 – Ceiling and Wall Mount Screw Kit
- 1 – Quick Installation Guide
Compliance Regulatory
- FCC
- CE
- IC
