XIAOMI XMI-DVB4314GL Router AX3200
เพิ่มเมื่อ: 2023-06-20 16:02:56.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comXMI-DVB4314GL Router AX3200
XIAOMI XMI-DVB4314GL
XMI-DVB4314GL Router AX3200
- รองรับสัญญาณ Wi-Fi : IEEE 802.11b/g/n/ac/ax (2.4 & 5.0 ghz)
- ที่ความเร็วสูงสุด 800Mbps (2.4) 2402Mbps (5.0)
- Processor : Mediatek MT7622B Dual-Core A53 1.35Ghz
- RAM : 256MB มาพร้อม 1 Gigabit WAN port & 3 Gigabit LAN port
- เทคโนโลยีการเข้ารหัส : WPA-PSK/ WPA2-PSK/WPA3-SAE
Hardware configuration
Processor MediaTek Filogic800 Dual-core A53 1.35GHz CPU
Memory 256MB
2.4GHz Wi-Fi 4×4 (supports up to IEEE 802.11n protocol, the theoretical maximum rate is 800Mbps)
5GHz Wi-Fi 4×4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 2402Mbps)
Antennas External omnidirectional antennas

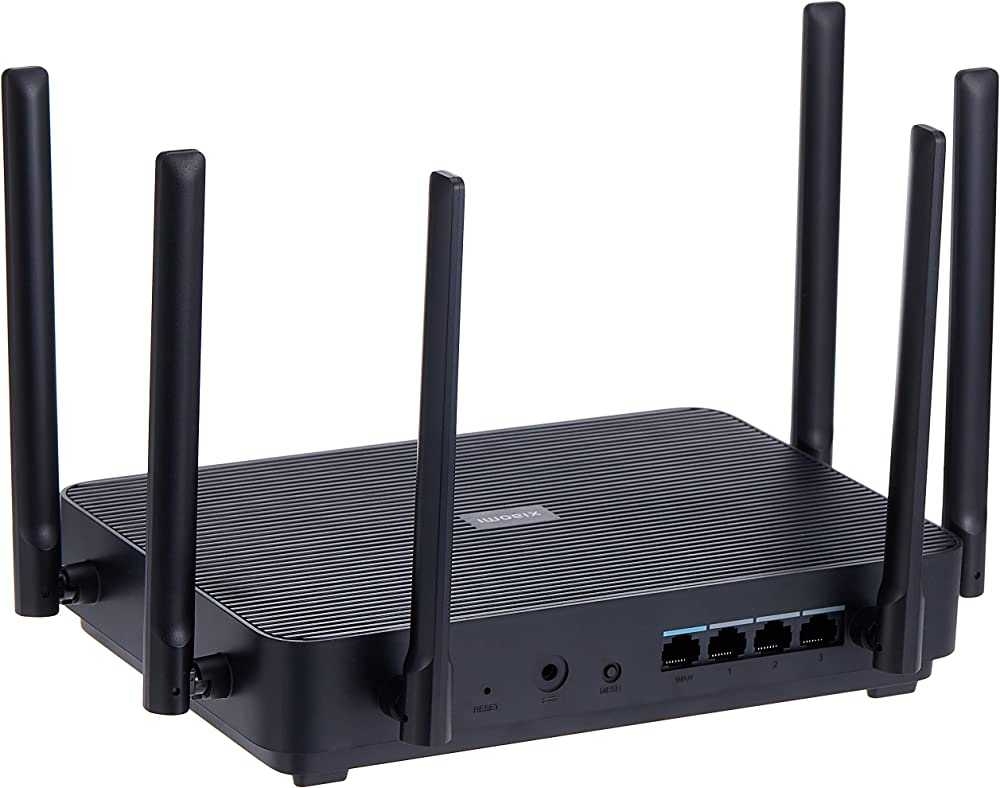

Total ports 10/100/1000Mbps adaptive WAN port (Auto MDI/MDIX) ×1
10/100/1000Mbps adaptive LAN ports (Auto MDI/MDIX) ×3
LED indicator light 2 lights, incl. System indicator × 1, Internet indicator × 1
System reset button ×1
Mesh networking button ×1
Power input port ×1
Protocol standards IEEE 802.11a/b/g/n/ac/ax，IEEE 802.3/3u/3ab
Wireless specifications
Dual-band 2.4GHz, 5GHz
Modulation 11b：DSSS：DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)
11a/g：OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps),
64QAM(48/54Mbps)
11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.256QAM.
11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.
11ax：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM.
Software specifications
Operating system MiWiFi ROM, a smart router operating system based on OpenWRT
Wi-Fi Encryption WPA-PSK/WPA2-PSK/WPA3-SAE encryption
Management applications Supports Web, Android, iOS
Working Environment
Working environment Temperature 0-40℃
Operating humidity 10%-90%RH (non-condensing)
Storage temperature -40-70℃
Storage humidity 5%-90%RH (non-condensing)
Package contents
Xiaomi Router AX3200 ×1
User Manual ×1
Power cord ×1
Network cable ×1
