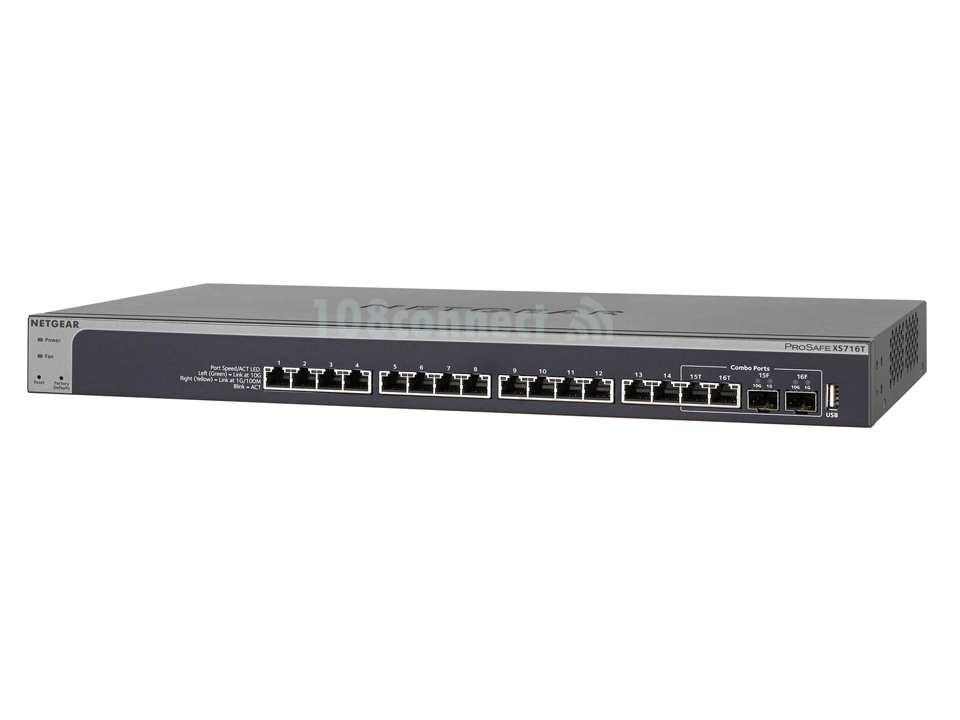

| NETGEAR XS716T 16-Port 10-Gigabit Copper Smart Managed Pro Switch with 2 Copper/SFP+ Combo Ports
NETGEAR XS716T 16-Port 10-Gigabit Copper Smart Managed Pro Switch with 2 Copper/SFP+ Combo Ports
เพิ่มเมื่อ: 2019-12-13 12:59:43.0
แก้ไขล่าสุด: 2020-03-09 12:59:12.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comXS716T 16-Port 10-Gigabit Copper Smart Managed Pro Switch with 2 Copper/SFP+ Combo Ports (สินค้ารับประกัน 2 ปี)
NETGEAR XS716T
XS716T 16-Port 10-Gigabit Copper Smart Managed Pro Switch with 2 Copper/SFP+ Combo Ports
Performance
- Packet buffer memory: 2 MB (XS708T/XS712Tv2/XS716T) 3 MB (XS728T/XS748T)
- Bandwidth: 160 Gbps (XS708T) 240 Gbps (XS712Tv2) 320 Gbps (XS716T) 560 Gbps (XS728T) 960 Gbps (XS748T)
- Priority queues: 8
- Priority queuing: Weighted Round Robin (WRR) and Strict Priority
- MAC Address database size: 16K
- Multicast groups: 512
- Number of IPv4 static routes: 32 (XS708T/XS712Tv2/XS716T) 64 (XS728T/XS748T)
- Number of IPv6 static routes: 32 (XS708T/XS712Tv2/XS716T) 64 (XS728T/XS748T)
- Number of routed VLANs: 15 (XS708T/XS712Tv2/XS716T) 32 (XS728T/XS748T)
- Number of ARP cache entries: 738 (XS708T/XS712Tv2/XS716T) 1024 (XS728T/XS748T)
- Number of DHCP snooping bindings: 8K (XS708T/XS712Tv2/XS716T) 1K (XS728T/XS748T)
- Access Control Lists (ACLs): 100 (XS708T/XS712Tv2/XS716T) 164 (XS728T/XS748T) shared for MAC, IP and IPv6 ACLs
- Jumbo frame support: Up to 9K (XS708T/XS712Tv2/XS716T) 10K (XS728T/XS748T) packet size
L2 Services - VLANs
- Number of VLANs: 256 (XS708T/XS712Tv2/XS716T) 512 (XS728T/XS748T)
- IEEE 802.1Q VLAN Tagging
- IP-based VLANs
- MAC-based VLANs
- Auto-VoIP based on protocols (SIP, H323 and SCCP)
- Auto-Voice VLAN based on OUI bytes (default database and user-based OUIs) in the phone source MAC address
- Auto-Video VLAN
- Private VLAN
L2 Services - Availability
- Broadcast, multicast, unknown unicast storm control
- IEEE 802.3ad - LAGs (LACP)
- IEEE 802.3x (full duplex and flow control)
- IEEE 802.1D Spanning Tree Protocol
- IEEE 802.1w Rapid Spanning Tree Protocol
- IEEE 802.1s Multiple Spanning Tree Protocol
L2 Services - Multicast Filtering
- IGMP snooping (v1, v2, and v3)
- MLD snooping support (v1 and v2)
- IGMP snooping queries
- Block unknown multicast
- Multicast VLAN Registration (MVR): Yes (XS708T/XS712Tv2/XS716T) No (XS728T/XS748T)
L3 Services - DHCP
- DHCP client
- DHCP snooping
L3 Services - Routing
- IPv4 static routes: 32 (XS708T/XS712Tv2/XS716T) 64 (XS728T/XS748T)
- IPv6 static routes: 32 (XS708T/XS712Tv2/XS716T) 64 (XS728T/XS748T)
- Host ARP table: 738 entries (XS708T/XS712Tv2/XS716T) 1024 entries (XS728T/XS748T)
- ICMP Router Discovery Protocol (IRDP): Yes (XS708T/XS712Tv2/XS716T) No (XS728T/XS748T)
- VLAN routing: 15 VLANs (XS708T/XS712Tv2/XS716T) 32 VLANs (XS728T/XS748T)
- Number of IP VLAN interfaces: 15 (XS708T/XS712Tv2/XS716T) 32 (XS728T/XS748T)
Link Aggregation
- IEEE 802.3ad - LAGs (LACP)
- Manual Static LAG
- LAG hashing: L2 only (MAC addresses)
- 8 LAGs with max 8 members in each LAG (XS708T/XS712Tv2/XS716T)
- 12 LAGs with max 8 members in each LAG (XS728T/XS748T)
Network Monitoring and Discovery Services
- 802.1ab LLDP
- SNMP: v1, v2c, v3
- RMON group 1,2,3,9
Network Security
- IEEE 802.1X
- RADIUS accounting
- Access Control Lists (ACLs): L2 / L3 / L4
- MAC lockdown
- MAC lockdown by the number of MACs
- Control MAC # Dynamic learned entries: 600
- Control MAC # static entries: 20 (XS708T/XS712Tv2/XS716T) 600 (XS728T/XS748T)
- IEEE 802.1x RADIUS port access authentication
- Port-based security by locked MAC addresses
- Dynamic ARP inspection: Yes (XS708T/XS712Tv2/XS716T) No (XS728T/XS748T)
- Broadcast, multicast, unknown unicast storm control
- DoS attacks prevention: Yes (XS708T/XS712Tv2/XS716T) No (XS728T/XS748T)
Quality of Service (QoS)
- Port-based rate limiting: Egress only (XS708T/XS712Tv2/XS716T) Ingress and egress (XS728T/XS748T)
- Port-based QoS
- Support for IPv6 fields
- DiffServ QoS
- IEEE 802.1p COS
- Destination MAC and IP
- IPv4 and IPv6 DSCP
- IPv4 and IPv6 ToS
- TCP/UDP-based
- Weighted Round Robin (WRR)
- Strict priority queue technology
- Auto-VoIP
- Auto-Voice VLAN
- Auto-Video VLAN
Management
- Password management
- Configurable management VLAN
- Admin access control via RADIUS and TACACS+
- IPv6 management
- SNTP client over UDP port 123
- SNMP v1/v2c
- SNMP v3 with multiple IP addresses
- RMON group 1,2,3,9
- Port mirroring
- Many-to-one port mirroring
- Web browser-based graphical user interface (GUI)
- Smart Control Center (SCC) for multi-switch management
- Dual software (firmware) image
- Dual configuration file
- Cable test utility
- SSL/HTTPS Web-based access (version): Yes (v3) (XS708T/XS712Tv2/XS716T) Yes (v2) (XS728T/XS748T)
- TLS Web-based access (version): Yes (v1.0) (XS708T/XS712Tv2/XS716T) Yes (v1.0 ~ v1.2) (XS728T/XS748T)
- File transfers (uploads, downloads): TFTP / HTTP
- HTTP upload/download (firmware)
- Syslog (RFC 3164)
- USB port for firmware updates, configuration settings upload/backup, and system log file downloads
10-Gigabit copper ports
- 16 10GBASE-T copper
SFP ports
- 2 SFP+ 1000/10GBASE-X fiber ports (shared)
Buffer size
- 2 MB
MAC address database size
- 16K
VLAN (# supported)
- 512
Number of LAGs & number of members
- 8 LAGS with max 8 members in each LAG (LACP)
Number of priority queues
- 8
Access Control Lists (ACLs)
- 100 shared for MAC, IP and IPv6 ACLs
IPv4 Static routes
- 32
IPV6 Static routes
- 32
Power supply
- Internal 100-240VAC 50-60Hz
Max power consumption (Watts)
- 96 W
Fan
- 2
Acoustic Noise Level @25C (dBA)
- 29.1 dBA
Operating Temperature
- -5° to 55°C (23° to 131°F)
MTBF (@ 25° C)
- 276,832 hours
Electromagnetic compliance (A or B)
- Class A
Dimensions (W x D x H)
- 440 x 204 x 43 mm (17.3 x 8 x 1.7 in)
Weight
- 2.98 kg (6.57 lb)
