TP-LINK EAP613 AX1800 Ceiling Mount WiFi 6 Access Point
เพิ่มเมื่อ: 2023-09-13 18:02:13.0
แก้ไขล่าสุด: 2023-12-22 18:01:55.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comแอคเซสพอยซ์ EAP613 AX1800 Ceiling Mount WiFi 6 Access Point
TP-LINK EAP613

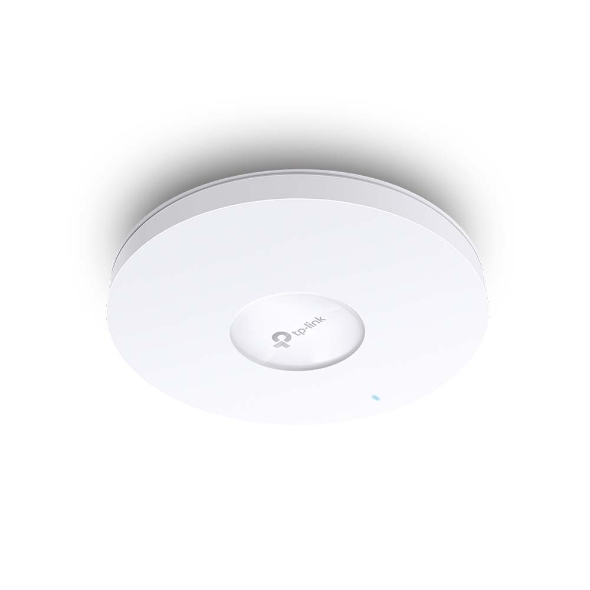

EAP613 AX1800 Ceiling Mount WiFi 6 Access Point
- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
- Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
- PoE+ Powered: Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations.
- Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
- Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.
HARDWARE FEATURES
- Interface : 1× Gigabit Ethernet (RJ-45) Port
- Button : Reset
- Power Supply
• 802.3at PoE
• 48 V Passive PoE
• 12 V / 1 A DC (Power Adapter IS NOT included)
- Power Consumption : 11.0W (For PoE);
9.9W (For DC)
- Dimensions ( W x D x H ) : V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
- Antenna Type : Internal Omni Antenna
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi

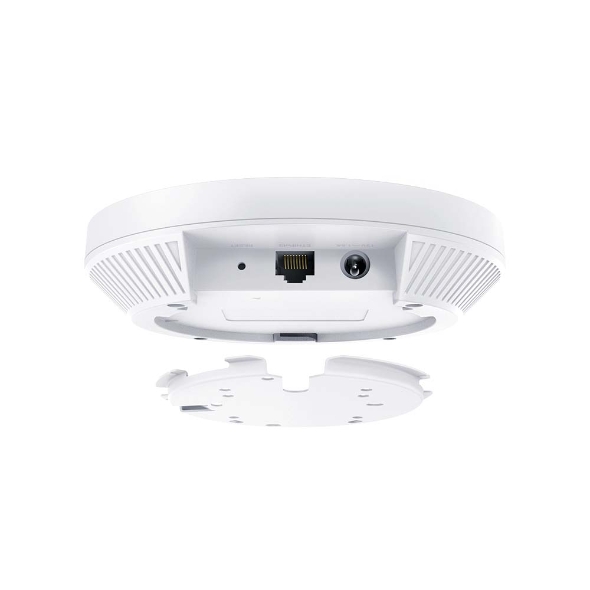

- Mounting
• Ceiling /Wall Mounting (Kits included)
• Junction Box Mounting
WIRELESS FEATURES
- Wireless Client Capacity 250+**
- Wireless Standards IEEE 802.11ax/ac/n/g/b/a
- Frequency 2.4 GHz and 5 GHz
- Signal Rate
• 5 GHz: Up to 1201 Mbps
• 2.4 GHz: Up to 574 Mbps
- Wireless Functions
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
- Wireless Security
• Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power
• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3)
• FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)
MANAGEMENT
- Omada App Yes
- Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller
- Cloud Access Yes, through
• OC300
• OC200
• Omada Software Controller
• Omada Cloud-Based Controller
- Email Alerts Yes
- LED ON/OFF Control Yes
- Management MAC Access Control Yes
- SNMP v1, v2c, v3
- System Logging Local/Remote Syslog Local/Remote Syslog
- SSH Yes
- Web-based Management HTTP/HTTPS
- L3 Management Yes
- Multi-site Management Yes
- Management VLAN Yes
- Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller
OTHERS
- Certification CE, FCC, RoHS
- Package Contents
• EAP613
• Ceiling/ Wall Mounting Kits
• Installation Guide
- System Requirements : Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
- Environment
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
