| TP-LINK EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point PoE
TP-LINK EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point PoE
เพิ่มเมื่อ: 2021-01-22 11:18:44.0
แก้ไขล่าสุด: 2023-12-06 17:59:30.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comEAP235-Wall AC1200 Wall-Plate Dual-Band Wi-Fi Access Point PoE, 1× Gigabit RJ45 Port; Downlink: 3× Gigabit RJ45 Port(300 Mbps at 2.4 GHz + 867 Mbps at 5 GHz) (สินค้ารับประกันตลอดอายุการใช้งาน)
TP-LINK EAP235-Wall
EAP235-Wall AC1200 Wall-Plate Dual-Band Wi-Fi Access Point PoE, 3× Gigabit RJ45 Port(300Mbps at 2.4GHz + 867Mbps at 5GHz)
- Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.†

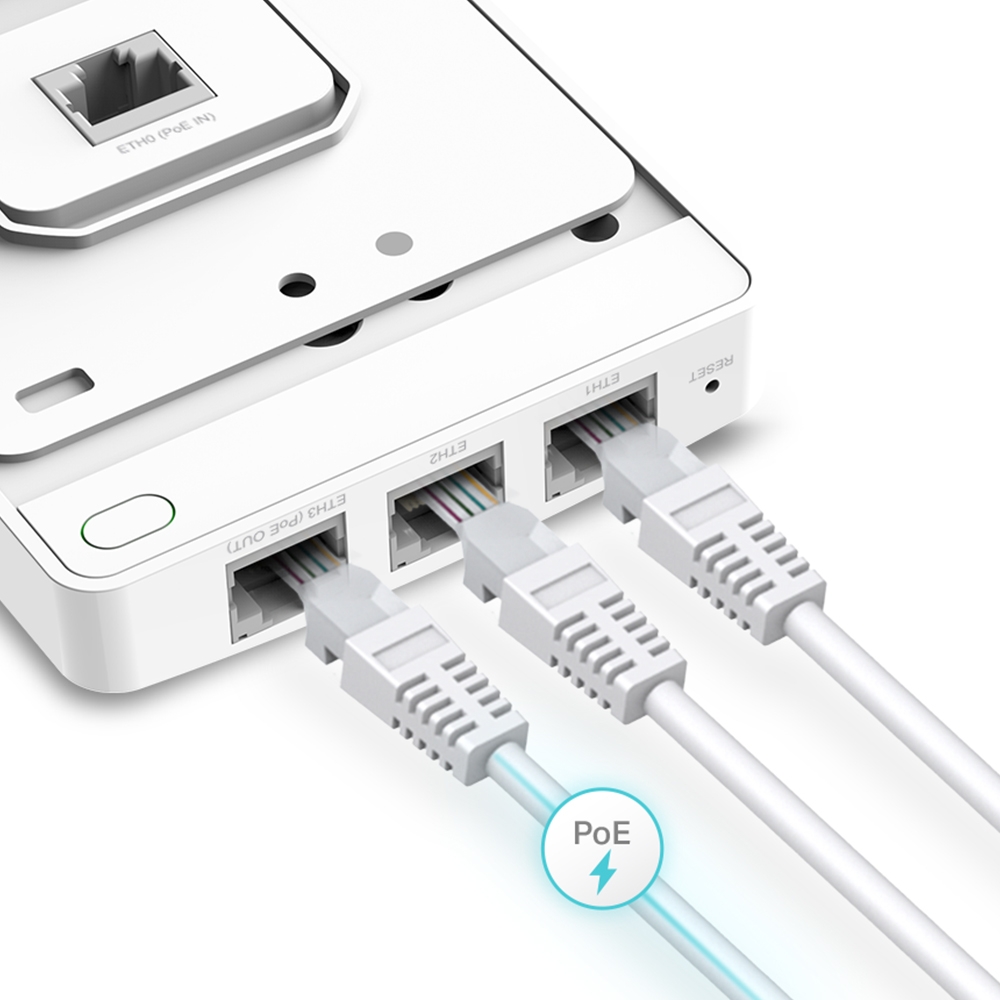

- 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
- Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
- Cloud access and Omada app for ultra convenience and easy management.
- Ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments.
- Easy-mount construction, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
- Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
- Optimize network performance with MU-MIMO, Band Steering, and Beamforming technologies.
Wireless Standards :
- IEEE 802.11a/b/g/n/ac
Frequency :
- 2.4 GHz and 5 GHz
Signal Rate :
- 5 GHz: Up to 867 Mbps
- 2.4 GHz: Up to 300 Mbps
Wireless Functions :
- 16 SSIDs (Up to 8 SSIDs on each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO
- Band Steering
- Beamforming
- Load Balance
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
Wireless Security :
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Local LAN port based VLAN
- Rogue AP Detection
- 802.1X Support
- 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Interface :
- Uplink: 1× 10/100/1000 Mbps Ethernet Port
- Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.)
Power Supply :
- 802.3af/802.3at PoE
Power Consumption :
- 9.8 watts /24.4 watts (PoE Out Included)
Dimensions :

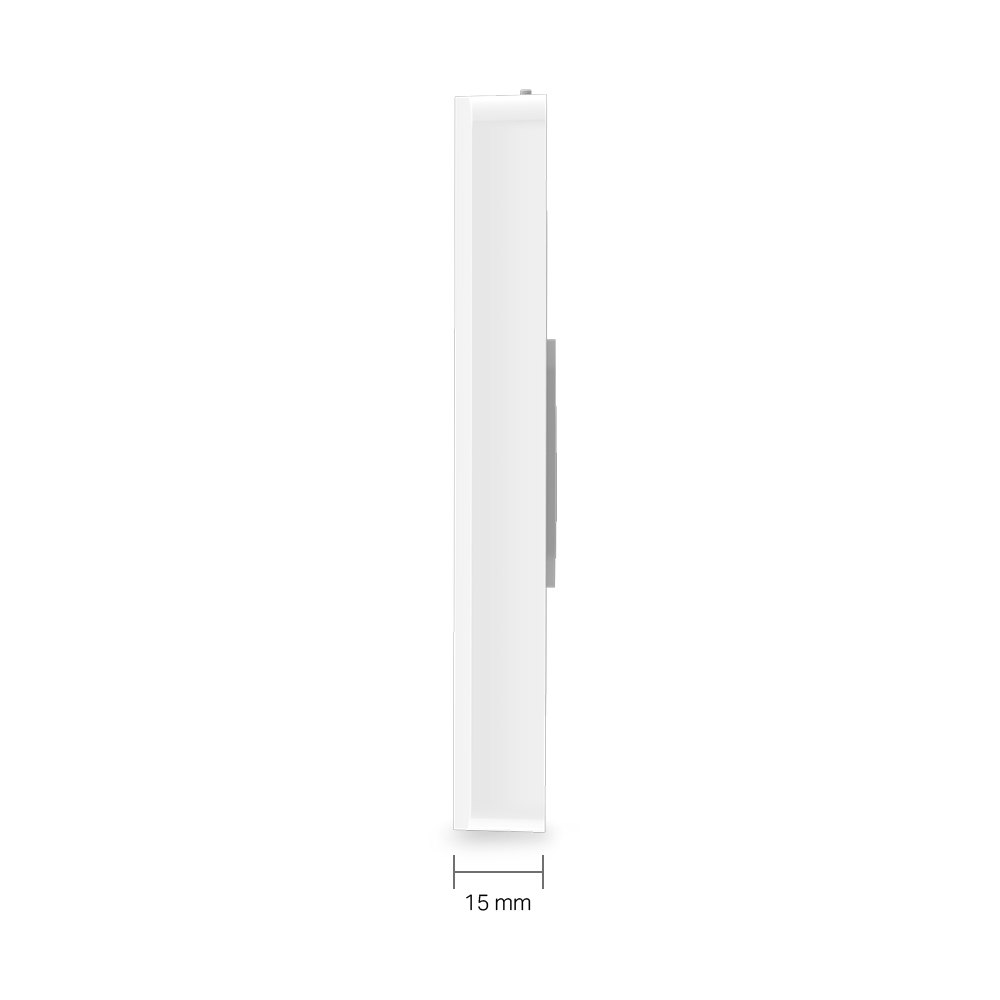

- 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Antenna :
2 Dual-Band Antennas
- 2.4 GHz: 2× 4 dBi
- 5 GHz: 2× 4 dBi
Mounting :
- Wall Plate Mounting
Package Contents :
- Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall
- Installation Guide
- Mounting Screw
