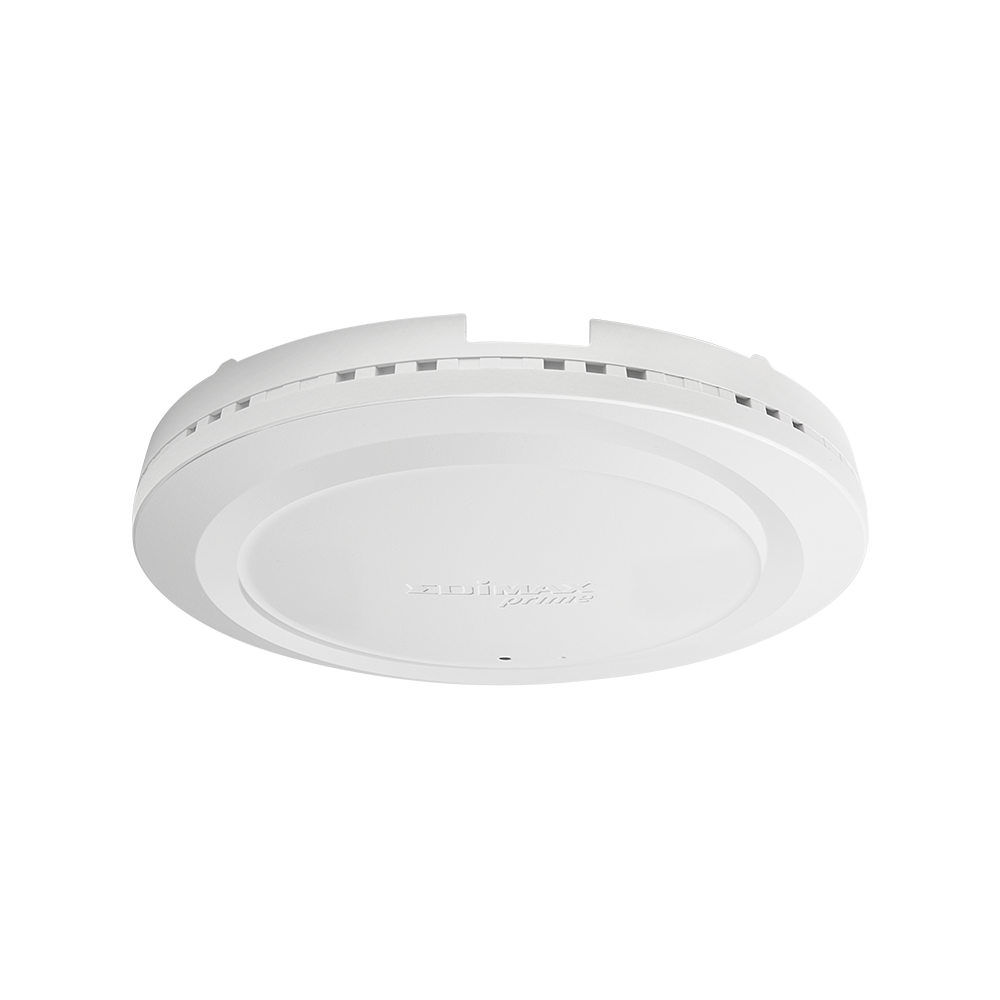

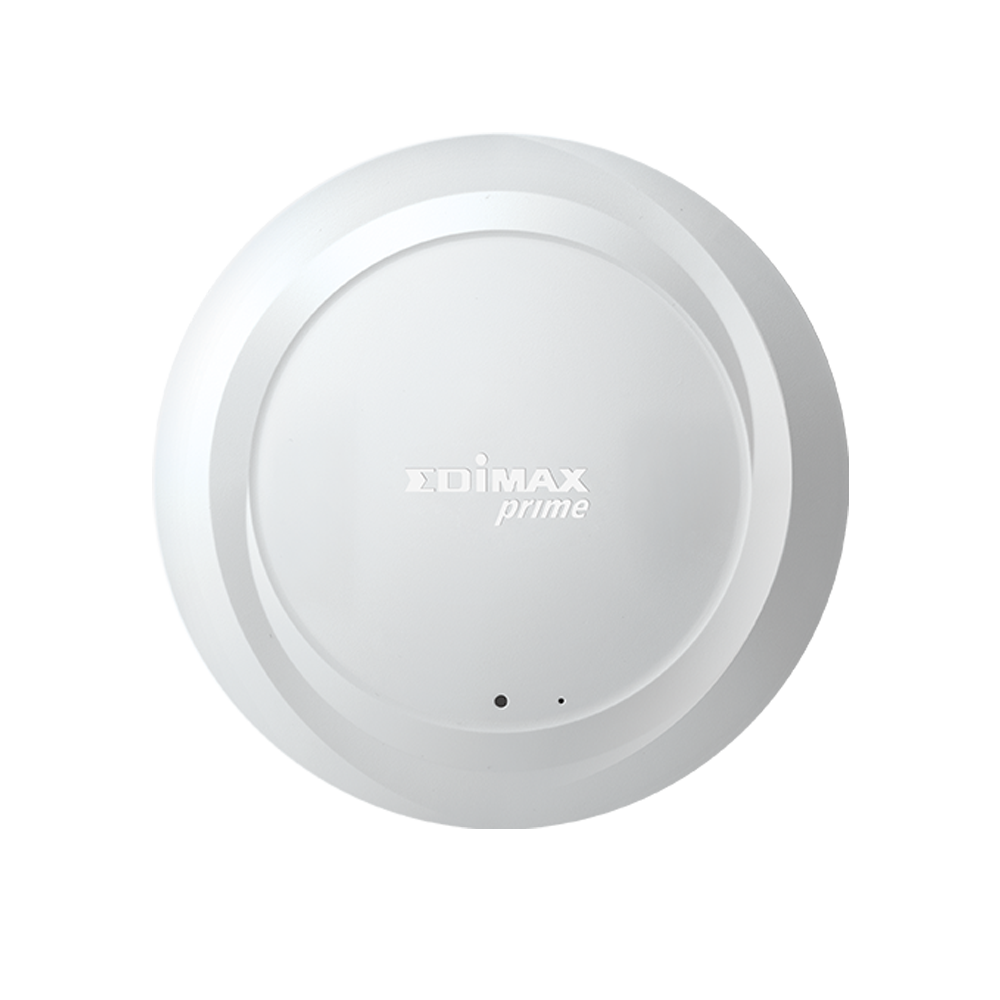

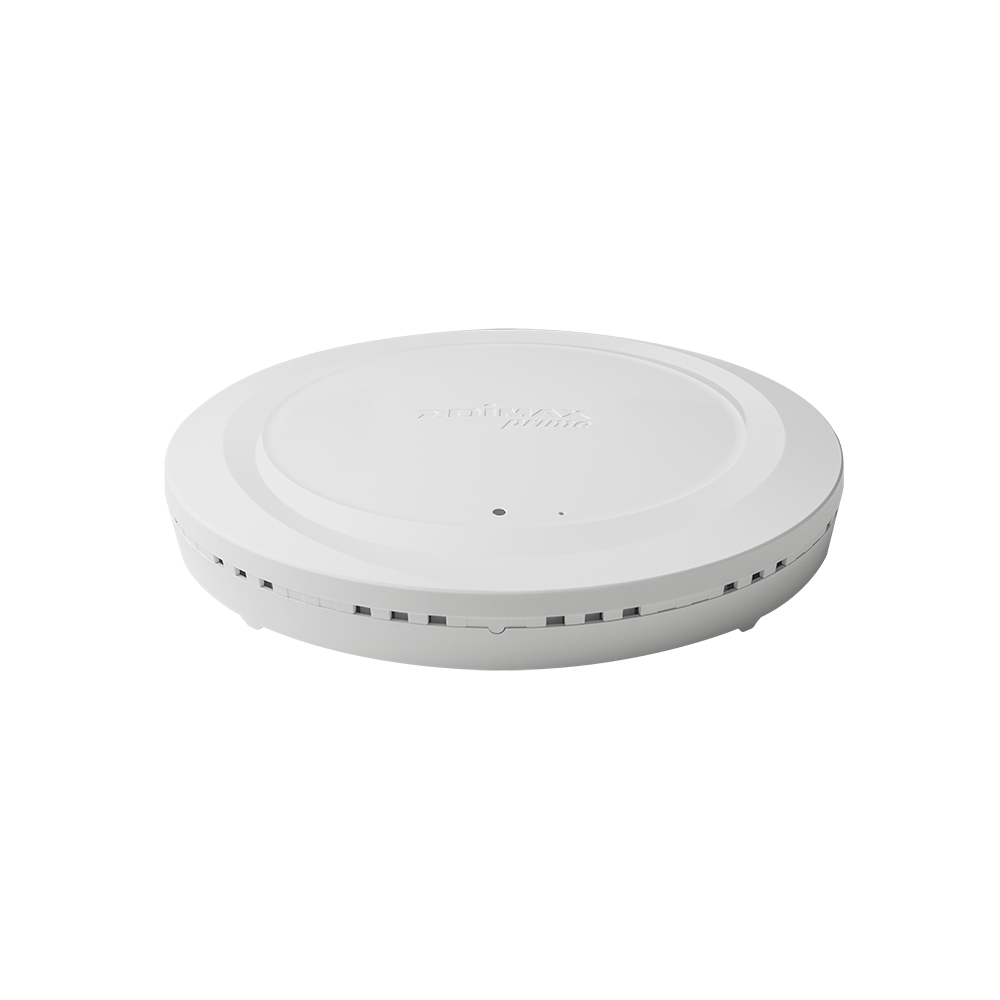

EDIMAX CAX1800
AX1800 Wi-Fi 6 Dual-Band Ceiling-Mount PoE Access Point
- AX1800 High-Speed: Max Wi-Fi speed up to 1800Mbps (2.4GHz at 574Mbps and 5GHz at 1201Mbps).
- Efficient MU-MIMO: Serves multiple devices simultaneously for data transmission with improved capacity for wireless connections.
- High Performance Wi-Fi: Beamforming, AirTime Fariness, Band Steering and 802.11r/k Fast Roaming enhance the best Wi-Fi performance.
- High Density Mobile & IoT Usage: Supports up to 256 users simultaneously, ideal for BYOD workplace.
- Reliable, Secure Wi-Fi: WPA3 & WPA2-AES encryption supported for high level of security.
- Business Environments: For office, meeting rooms to schools, campuses and hospitality business such as hotels, restaurants, shopping malls, retail shops and hospital.
Standard :
IEEE 802.11 a/b/g/n/ac/ax
Frequency Band :
• 2.4GHz: IEEE 802.11b/g/n/ax
• 5GHz: IEEE 802.11a/n/ac/ax
* Subject to local regulations.
Maximum Data Speed :
• 2.4GHz: 574Mbps
• 5GHz: 1201Mbps
Wireless Mode :
• AP / WDS AP / WDS Bridge
Security :
• WPA3/ WPA2 / WPA/ WEP/ 802.1X

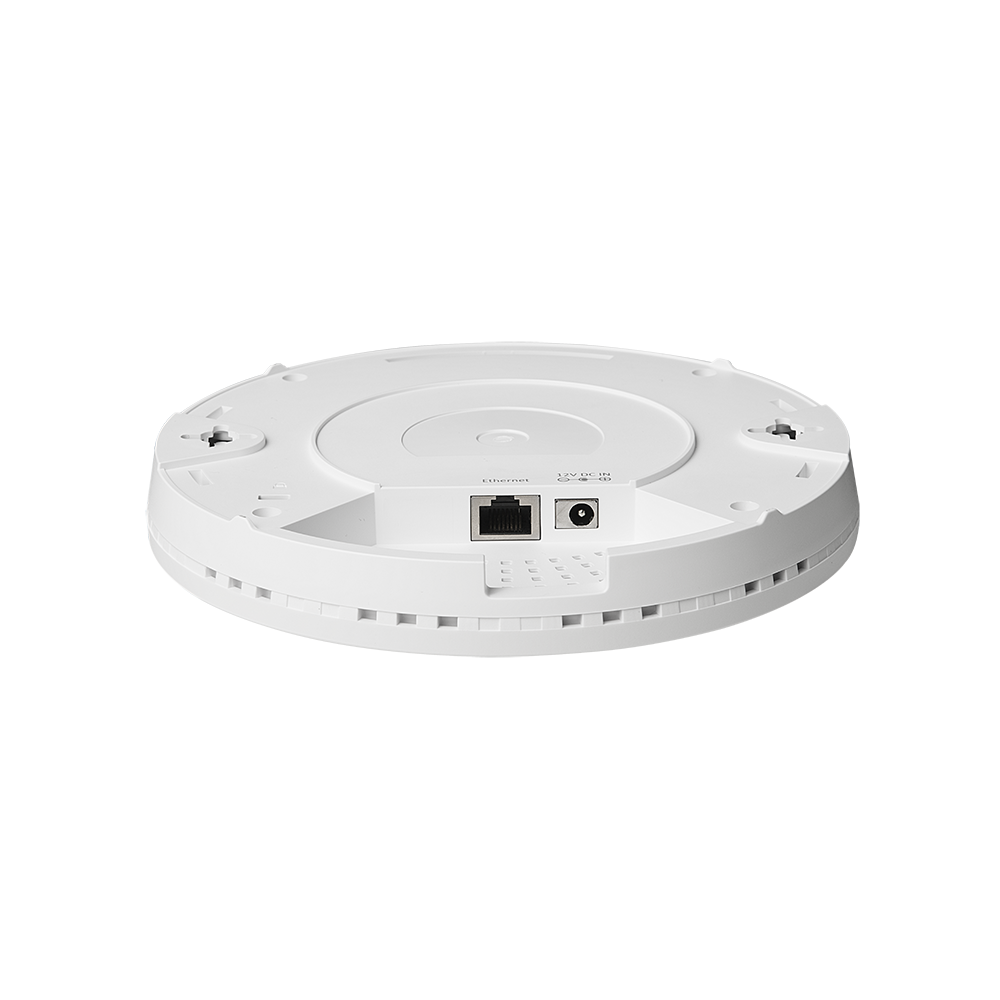

Interface :
• 1 x RJ45 10/100/1000Mbps Ethernet Port (PoE in)
Button :
• Reset button
LED Indicator :
• 1 x LED ( Power and Diag )
Antenna :
• ype: 2 x Built-In PIFA (2 dual-band antenna)
• Gain: 2.2dBi (2.4GHz), 2.9dBi (5GHz) Max.
Power :
• DC: 12V / 1A
• 802.3af (PoE Injector Optional)
Power Consumption :
• 12W (Full Loading)
Power Saving :
• 802.3az
Mounting :
• Ceiling
Housing :
• UL94-5VB Flammability Rating
Dimension :
• 176.29 (D) x 32.75 (H) mm
Weight :
• 372g
|
|
|
|
