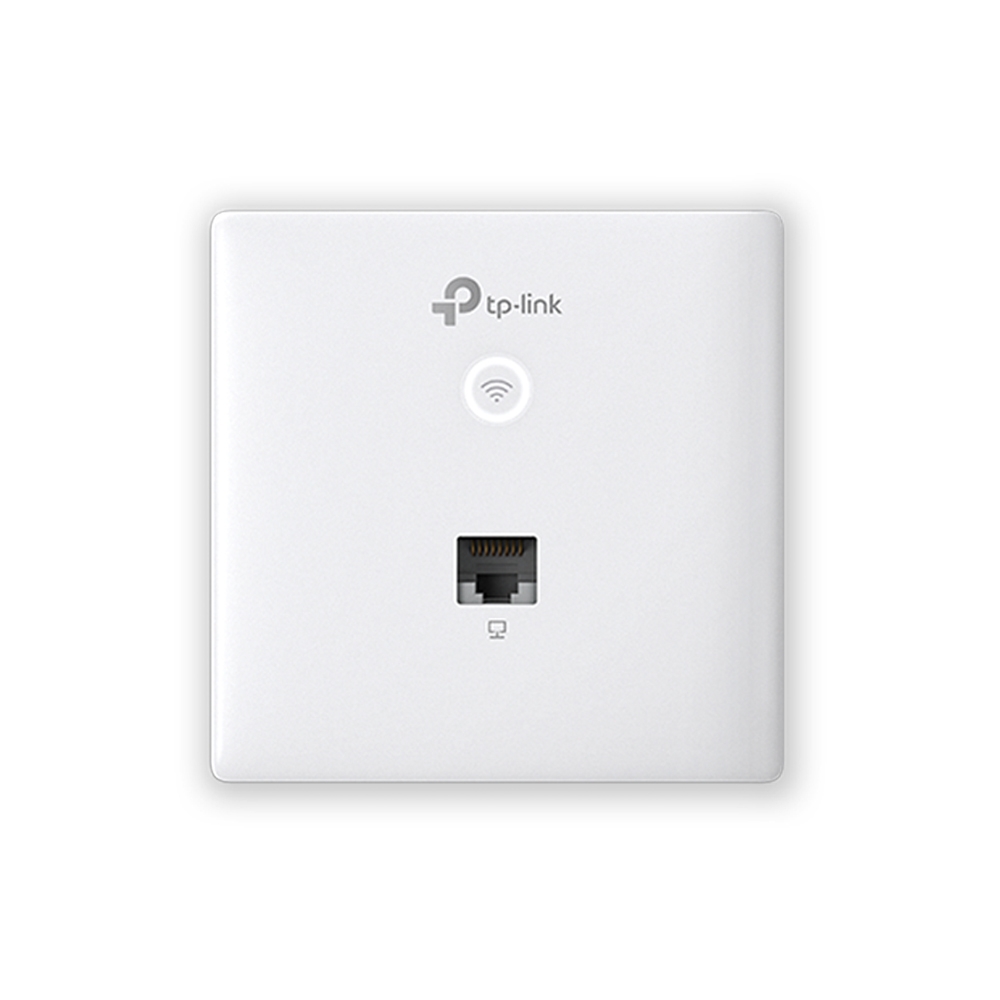

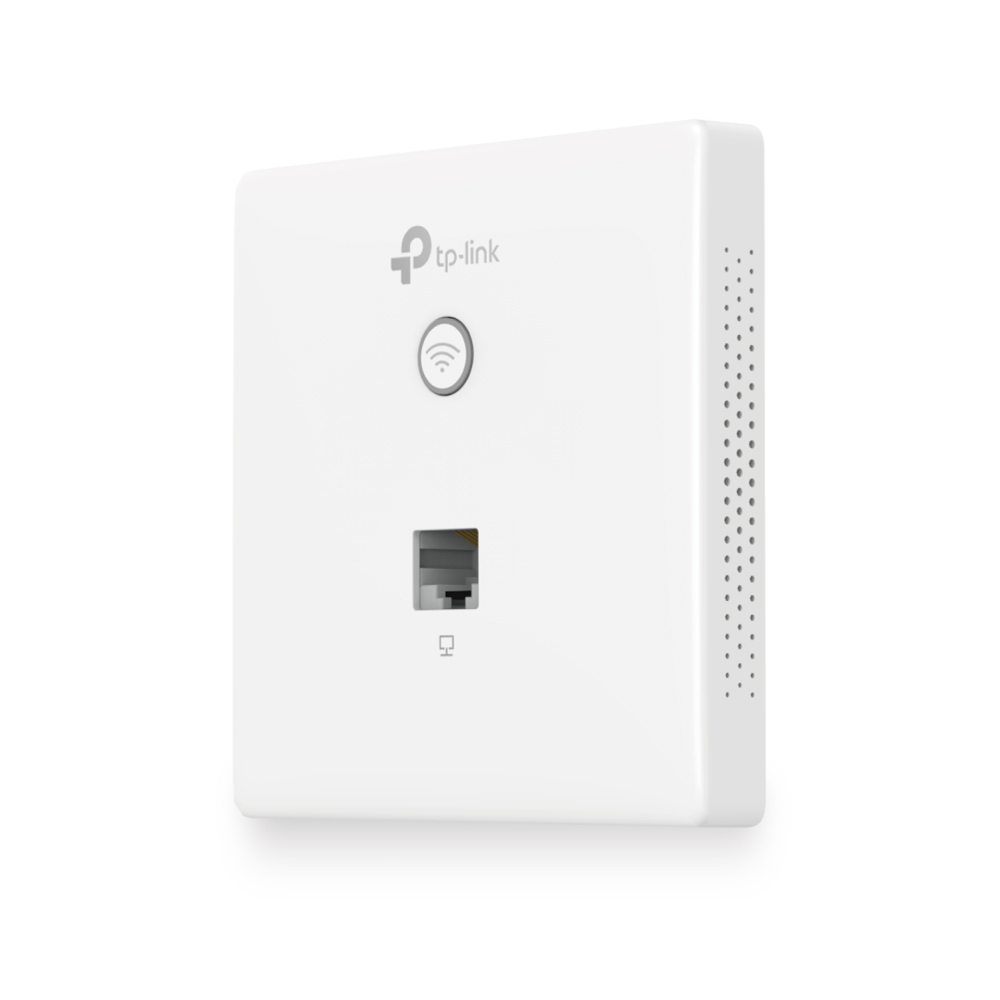

TP-LINK EAP230-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
เพิ่มเมื่อ: 2024-01-09 14:20:32.0
แก้ไขล่าสุด: 2024-01-09 14:26:24.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comแอคเซสพอยซ์ EAP230-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
TP-LINK EAP230-Wall
EAP230-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.
Gigabit Ports: 2 Gigabit Ethernet ports (1× uplink + 1× downlink).
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Private Connection for Every Room: Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.
Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.

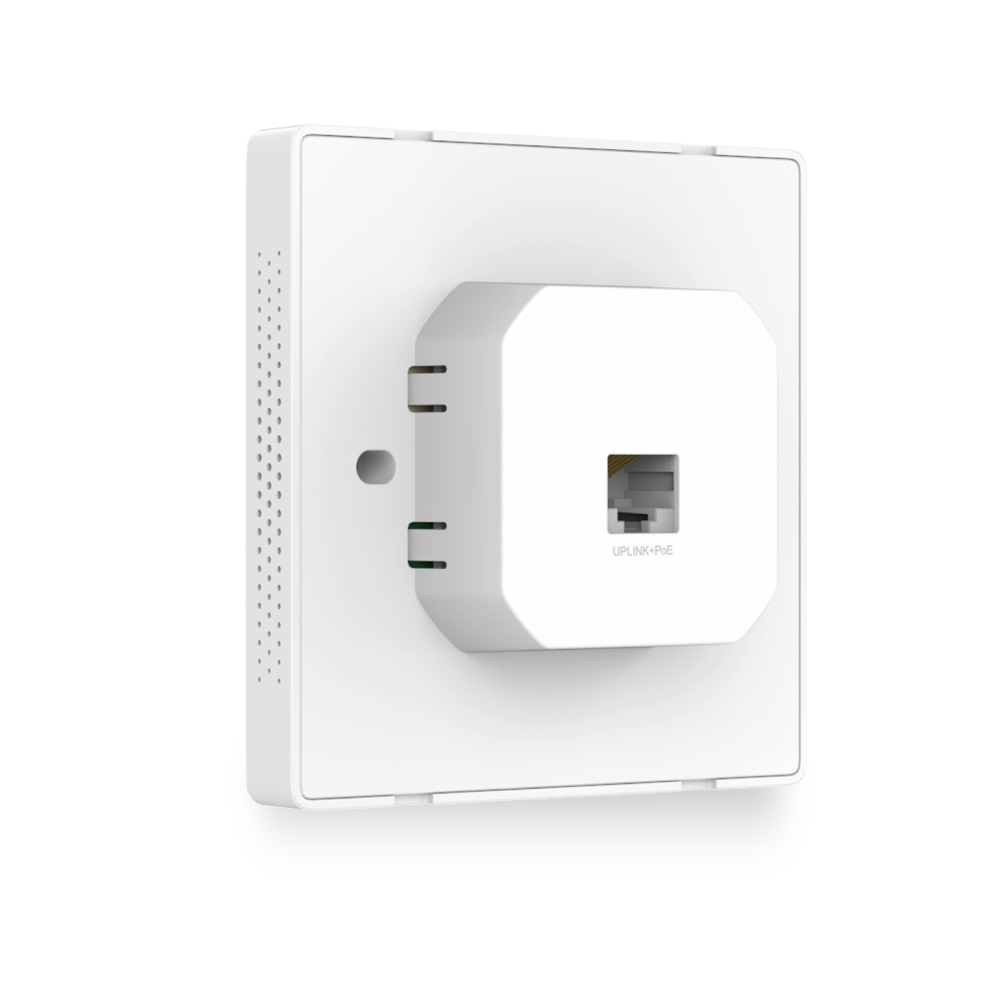

Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.
Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.
Wireless Standards :
IEEE 802.11n/g/b/ac
Frequency :
2.4 GHz and 5 GHz
Signal Rate :
• 5 GHz: Up to 867 Mbps
• 2.4 GHz: Up to 300 Mbps
Wireless Client Capacity :
200+*
Interface
• Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 1× 10/100/1000 Mbps Ethernet Port
Physical Security Lock :
No
Button :
LED/Wi-Fi Button, RESET
Power Supply :
802.3af/802.3at PoE
Power Consumption :
7 W
Dimensions ( W x D x H ) :
3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)
Antenna :
2 Dual-Band Antennas
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 3.6 dBi
Mounting :
Wall Plate Mounting
Hardware Watch Dog :
Yes
Omada App :
Yes
System Requirements :
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Package Contents :
• Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall
• Installation Guide
• Mounting Screw
