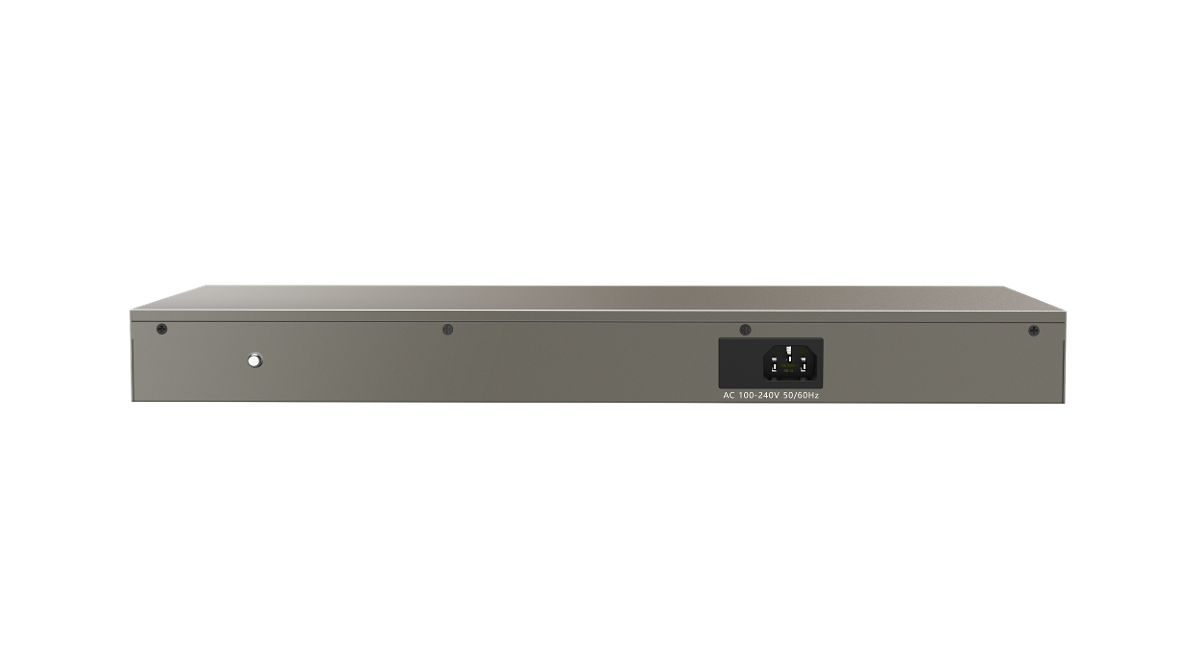

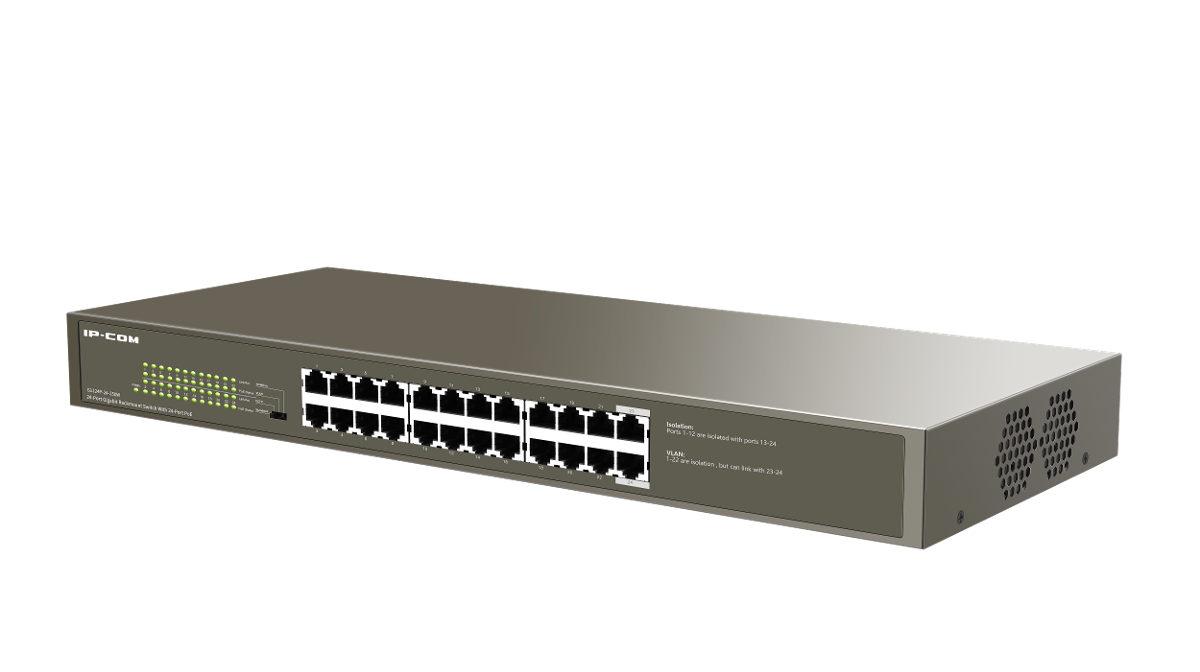

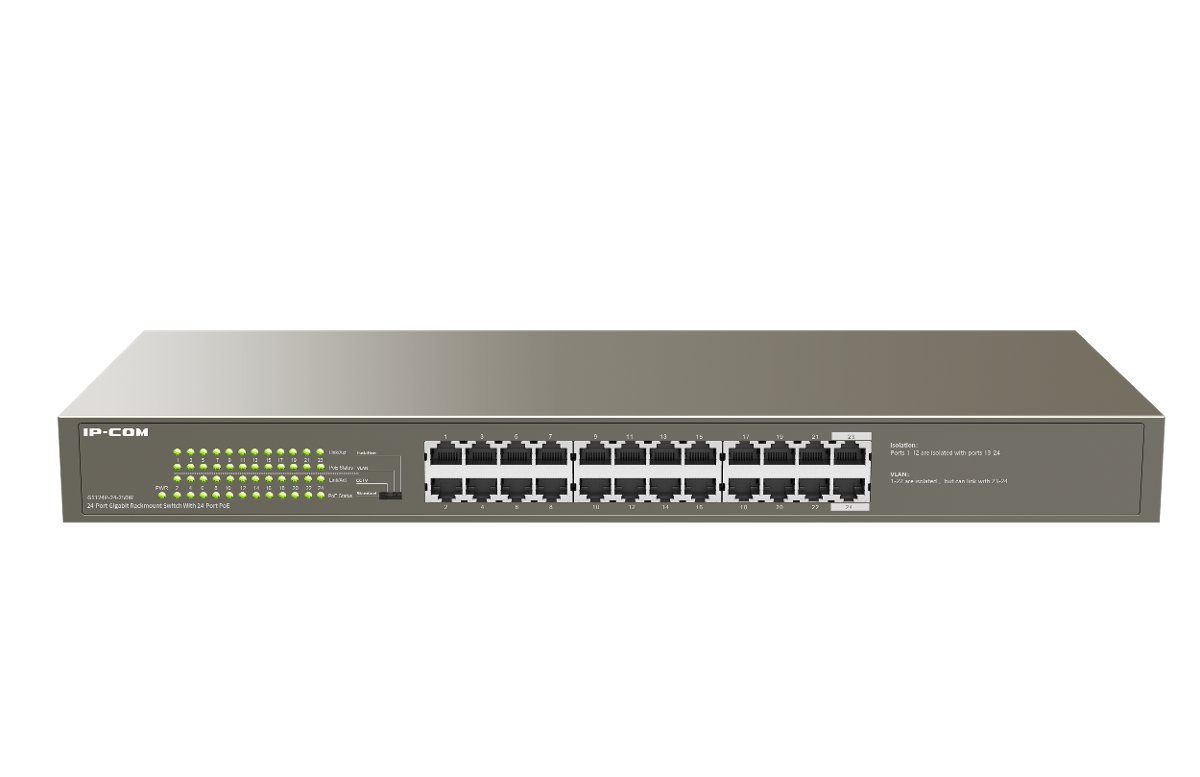

IP-COM G1124P-24-250W 24 10/100/1000Mbps with 24 PoE Port
เพิ่มเมื่อ: 2025-04-17 15:19:42.0
แก้ไขล่าสุด: 2025-04-17 15:22:35.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comSWITCH (สวิตซ์) IP-COM G1124P-24-250W 24 10/100/1000Mbps with 24 PoE Port, Power Budget 255W

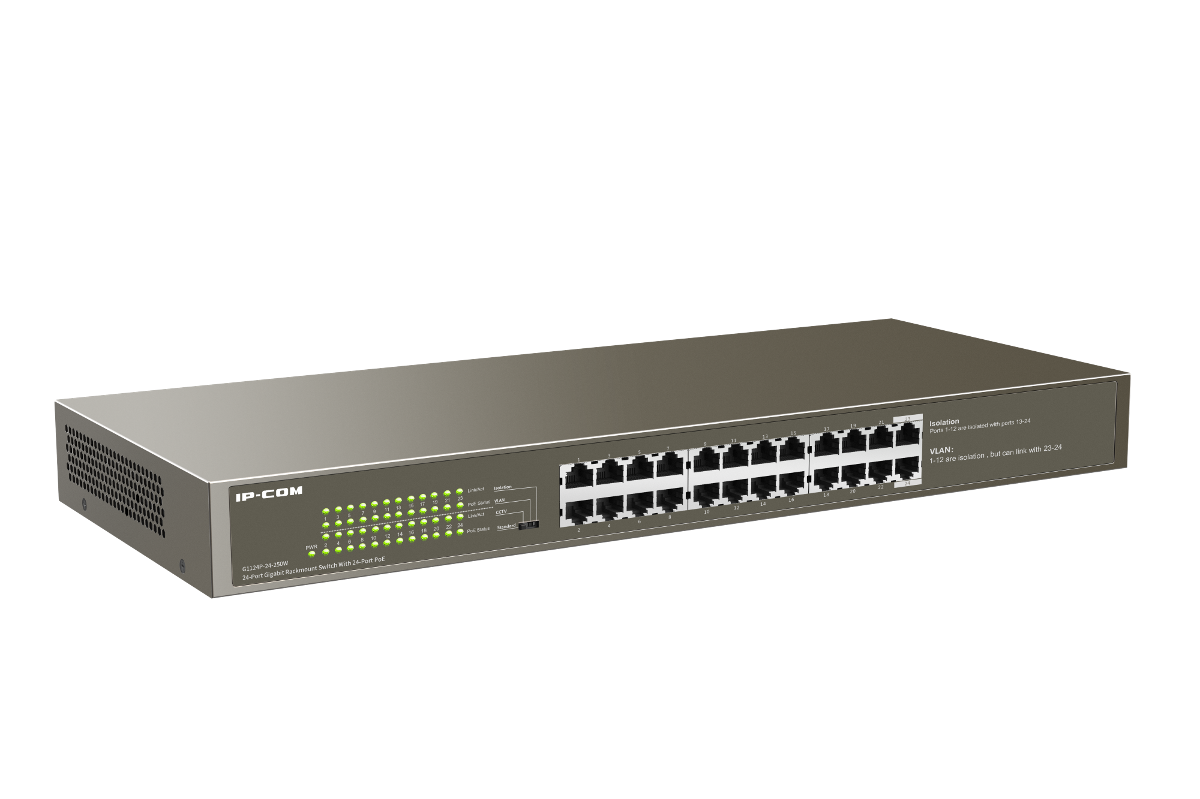

IP-COM G1124P-24-250W
SWITCH (สวิตซ์) IP-COM G1124P-24-250W 24 10/100/1000Mbps with 24 PoE Port, Power Budget 255W
- Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3af, IEEE802.3at
- Store & forward, share memory, non-blocking architecture
- Supports MAC address self-learning and auto MDI/MDIX
- Provide 24 10/100/1000Mbps auto-negotiation ports with 24-port PoE
- Ports 1-24: IEEE 802.3af/at PoE ports
- Supports full-deplux 802.3x flow control and half-duplux backpressure flow control
- Supports 8K MAC address list, MAC address learning and auto-ageing
- Supports port Inductive Lightning Protection up to 6KV
- maximum power output of the switch: 225W
- Hardware DIP switch for selection among the Standard, CCTV, VLAN, and Isolation modes
Standard&Protocol : IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3ab、IEEE802.3af、IEEE802.3at
Indicator :
24*Link/Act per device
24*PoE per device
1*Power per device
Interface : 24 10/100/1000Base-T ports(Data/Power)
Port : Lightning Protection 6KV
Store and forward : Yes
Exchange Capacity : 48 Gbps
Packet forwarding rate : 35.7Mpps
MAC Address Table : 8K
PoE supply management : Port 1-24 support IEEE802.3at/af PoE standard
PoE through pin : 1 2 4 5 +;3 6 7 8 -
Voltage input range : AC: 100-240V～50/60Hz
Dimensions : 440*178*44mm( W x D x H )
Power Consumption :
in full configuration:<250W
PoE Max Power Supply:225W
