FSD-504HP 4-Port 10/100Mbps IEEE 802.3af/802.3at PoE+ 1-Port 10/100Mbps Desktop Switch(60 watts) (สินค้ารับประกัน 3 ปี)

2990.00 บาท

PLANET FSD-504HP

FSD-504HP 4-Port 10/100Mbps IEEE 802.3af/802.3at PoE+ 1-Port 10/100Mbps Desktop Switch(60 watts)

Centralized Power Distribution for Small Ethernet Networking
The FSD-504HP is a 4-port 10/100Mbps 802.3at/af Power over Ethernet + 1-port Fast Ethernet Switchwith a total PoE budget of 60 watts, which is an ideal solution to meeting the demand for sufficient PoE power for network applications. The four 802.3at / af PoE ports provide PoE power injector function which is able to drive 2 IEEE 802.3at compliant powered devices or 4 IEEE 802.3af compliant powered devices. The FSD-504HP also provides a simple, cost-effective and non-blocking wire-speed performance. It comes with a compact palm size metal housing, suitable for the desktop deployment of SOHO or home-use network environment.

Easy Cable Connection
With data switching and power over Ethernet integrated into one unit, the FSD-504HP reduces cabling requirements and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power can lower the installation costs, simplify the installation effort and eliminate the need for electricians or extension cords. With 4 PoE interfaces, the FSD-504HP is ideal for small businesses and workgroups making the deployment of the PoE facility including wireless access points, IP-based surveillance camera and IP phones in any places easier, more efficient and more cost-effective.

Applications

Perfectly Integrated Solution for PoE IP Camera and NVR System
The FSD-504HP provides four 802.3at / af PoE ports for catering to small-scale home and SOHO IP surveillance networks at a lower total cost. The FSD-504HP comes with a high performance switch architecture and 60-watt PoE power budget. The recorded video files from the 4 PoE IP cameras can be powered by the FSD-504HP and saved in the 4-channel NVR system or using surveillance software to perform comprehensive security monitoring.

For instance, one FSD-504HP can be combined with one 4-channel NVR; that is, each of its PoE port can be linked to a specific 802.3af PoE IP camera for the administrators to centrally and efficiently manage the surveillance system in one site. The FSD-504HP’s Fast Ethernet TP interface also provides Fast Ethernet TP connection for uplink to NVR systems or public server groups.

IP Office Department / Workgroup PoE Switch
With the business office expansion, the additional telephones required could be installed in less cost via the implementation of PoE IP Telephony system than that of the traditional circuit wiring telephony system. The FSD-504HP 802.3at / af PoE Switch helps enterprises to create an integrated data, voice, and powered network. The IEEE 802.3af compliant IP phones can be installed without the need of an additional power cable because the power can be provided via the standard Ethernet cable from the connected FSD-504HP.
The wireless AP group, PoE IP phones and analog telephony adapter work perfectly with the FSD-504HP, which injects power through the Ethernet cables. With the FSD-504HP, IP telephony deployment becomes more reliable and cost effective, thus helping enterprises save tremendous cost when upgrading from the traditional telephony system to IP telephony communications infrastructure.

Specifications

Hardware Specifications

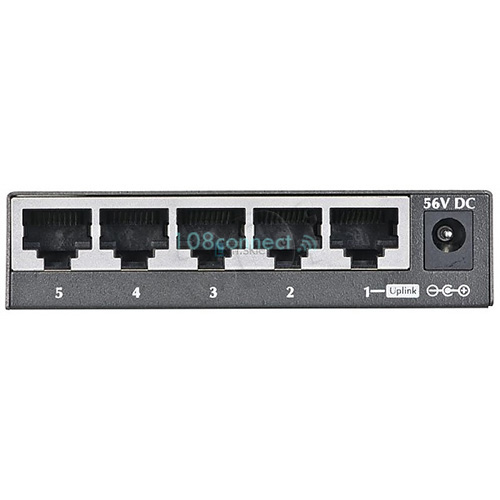

Network Connector	5-Port RJ-45 for 10/100Base-TX, auto MDI / MDIX
PoE Inject Port	4 ports with 802.3at / af PoE injector function (port 2 to port 5)
LED Display	System: Power (Green) Per PoE port:PoE (Orange, port 2 to port 5) LNK/ACT (Green, port 1 to port 5)
Switch Architecture	Store and Forward switch architecture
MAC Address Table	1K MAC address table with auto learning function
Switch Fabric	1Gbps
Switch Throughput	0.74Mpps @64Bytes
Maximum Packet Size	1536Bytes
Flow Control	Back pressure for Half-Duplex. IEEE 802.3x Pause Frame for Full-Duplex
Power Requirements	DC 56V, 1.5A.
Power Consumption	Max.62 watts / 211.5 BTU
Dimensions (W x D x H)	90 x 80 x 21 mm
Weight	172g
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet / PSE IEEE 802.3at Power over Ethernet Plus / PSE
PoE Power Supply Type	Mid-Span
Power Pin Assignment	4/5(+), 7/8(-)
PoE Power Output	Per Port 56V DC, 375mA. Max. 15.4 watts (IEEE 802.3af) Per Port 56V DC, 375mA. Max. 30 watts (IEEE 802.3at)
PoE Power Budget	60 watts
Number of 802.3af PD Class 0, 1, 2, 3 can be powered	4
Number of 802.3at PD Class 1, 2, 3 can be powered	4
Number of 802.3at PD Class 0, 4 can be powered	2
Standard Conformance
EMI Safety	FCC Class A, CE
Standard Compliance	IEEE 802.3:Ethernet IEEE 802.3u:Fast Ethernet IEEE 802.3x:Flow Control IEEE 802.3af:Power over Ethernet IEEE 802.3at:High Power over Ethernet
Environment
Operating Environment	0 ~ 50 degrees C
Storage Environment	-10 ~ 70 degrees C
Operating Humidity	5 ~ 95%, relative humidity, non-condensing
Storage Humidity	5 ~ 95%, relative humidity, non-condensing
