D-LINK DES-F1010P-E 10-Port 10/100 switch with 8 PoE ports
เพิ่มเมื่อ: 2020-03-06 15:10:16.0
แก้ไขล่าสุด: 2020-07-13 14:08:52.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comDES-F1010P-E 10-Port 10/100 switch with 8 PoE ports Extend -support up to 250m distance powersupply(สินค้ารับประกันตลอดอายุการใช้งาน)

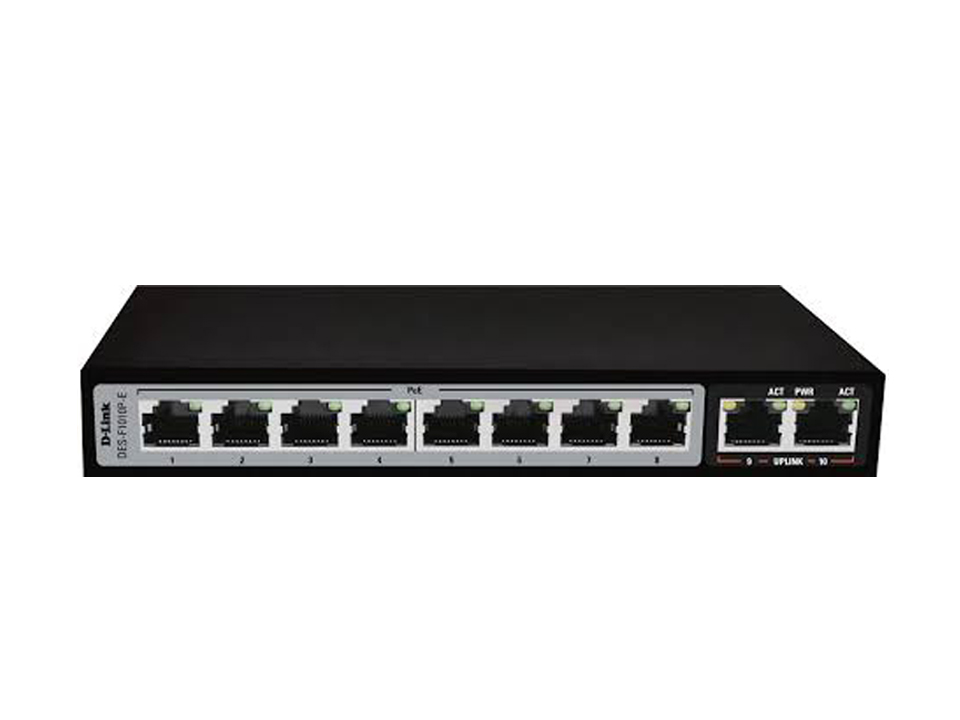

D-LINK DES-F1010P-E
DES-F1010P-E 10-Port 10/100 switch with 8 PoE ports Extend -support up to 250m distance powersupply
High-Speed Networking
- 10/100 Mbps Ethernet ports
- Full/half-duplex for Ethernet/Fast Ethernet
Functions
- VLAN
- EXTEND
- PoE
- QoS
Easy Setup
- Plug-and-play installation
- Auto MDI/MDI-X crossover on all ports
Stylish Design
- Compact lightweight chassis
- Noise-free operation
PoE Functionality
- Eight PoE ports
- IEEE 802.3af/at compliant
- 96 W total power budget
- Up to 30 W power output per PoE port
Size
- Desktop
Interfaces
- 8 10/100 BASE-T ports
- 2 10/100 BASE-T Uplink ports
Standards
- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
- ANSI/IEEE 802.3 NWay auto-negotiation
- IEEE 802.3x flow control
Media Interface Exchange
- Auto MDI/MDI-X adjustment on all ports
Lighting Protection
- 6KV
Switching Fabric
- 2Gbps
Transmission Method
- Adopt Store-and-forward
Data Transfer Rates
- Fast Ethernet
- 100 Mbps
- Ethernet
- 10 Mbps
Packet Filtering / Forwarding Rates
- 10M port maximum 14800pps
- 100M port maximum 148800pps
PoE Standards
- IEEE 802.3af
- IEEE 802.3at
PoE-Capable Ports
- Ports 1 to 8
Power Budget
- 96 W (36 W max. per PoE port)
Weight
- 0.95kg
Dimensions
- 184 x 75 x 27 mm
Power
- External power adapter: 96W
Temperature
- Operating: 0 to 40 ˚C (32 to 104 ˚F)
Humidity
- Operating: 0% to 95% RH non-condensing
- Storage: 0% to 95% RH non-condensing
