| Managed Gigabit Switches
| UBIQUITI USW-24 24-port Gigabit + 2xSFP, Layer 2 switch with a silent, fanless cooling system.

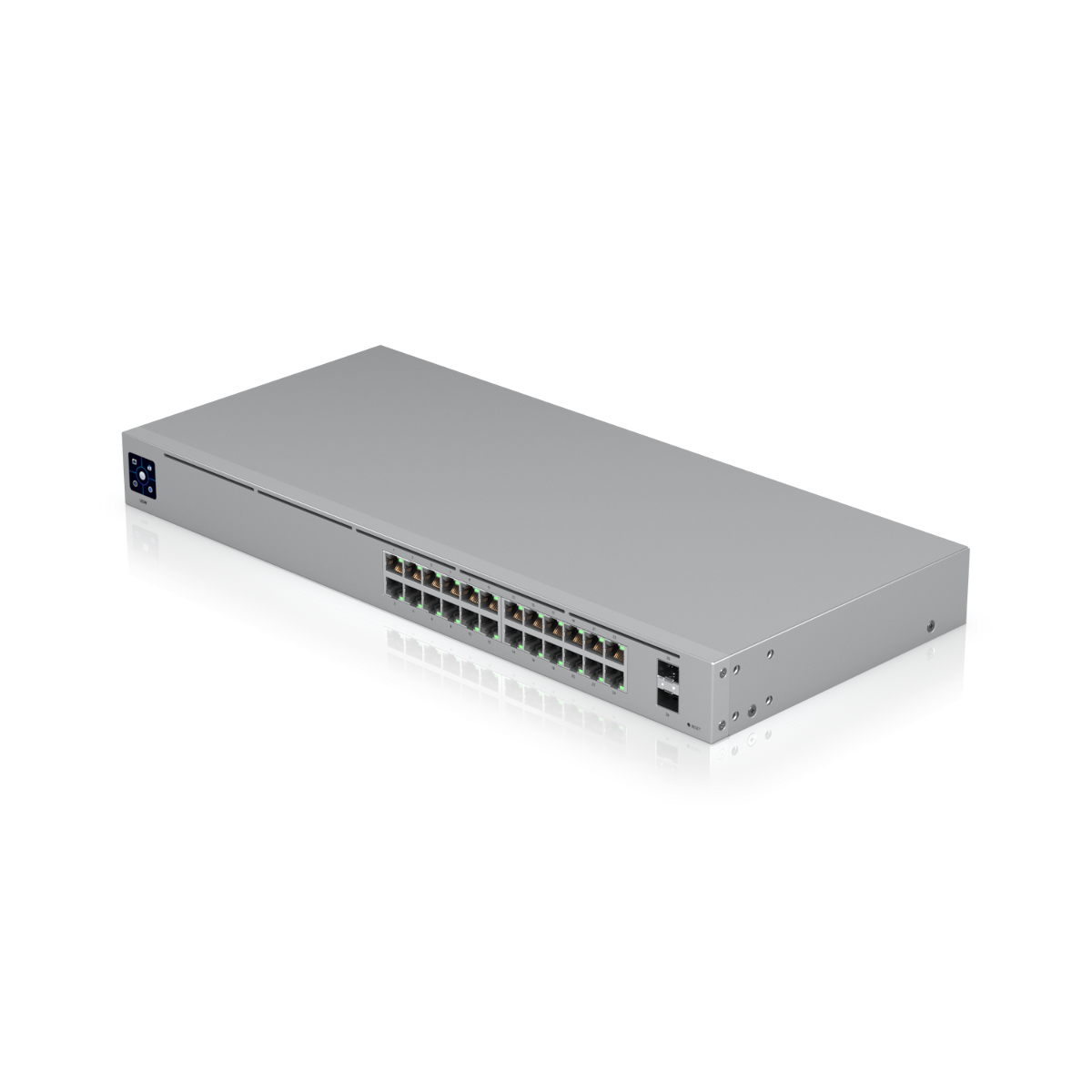

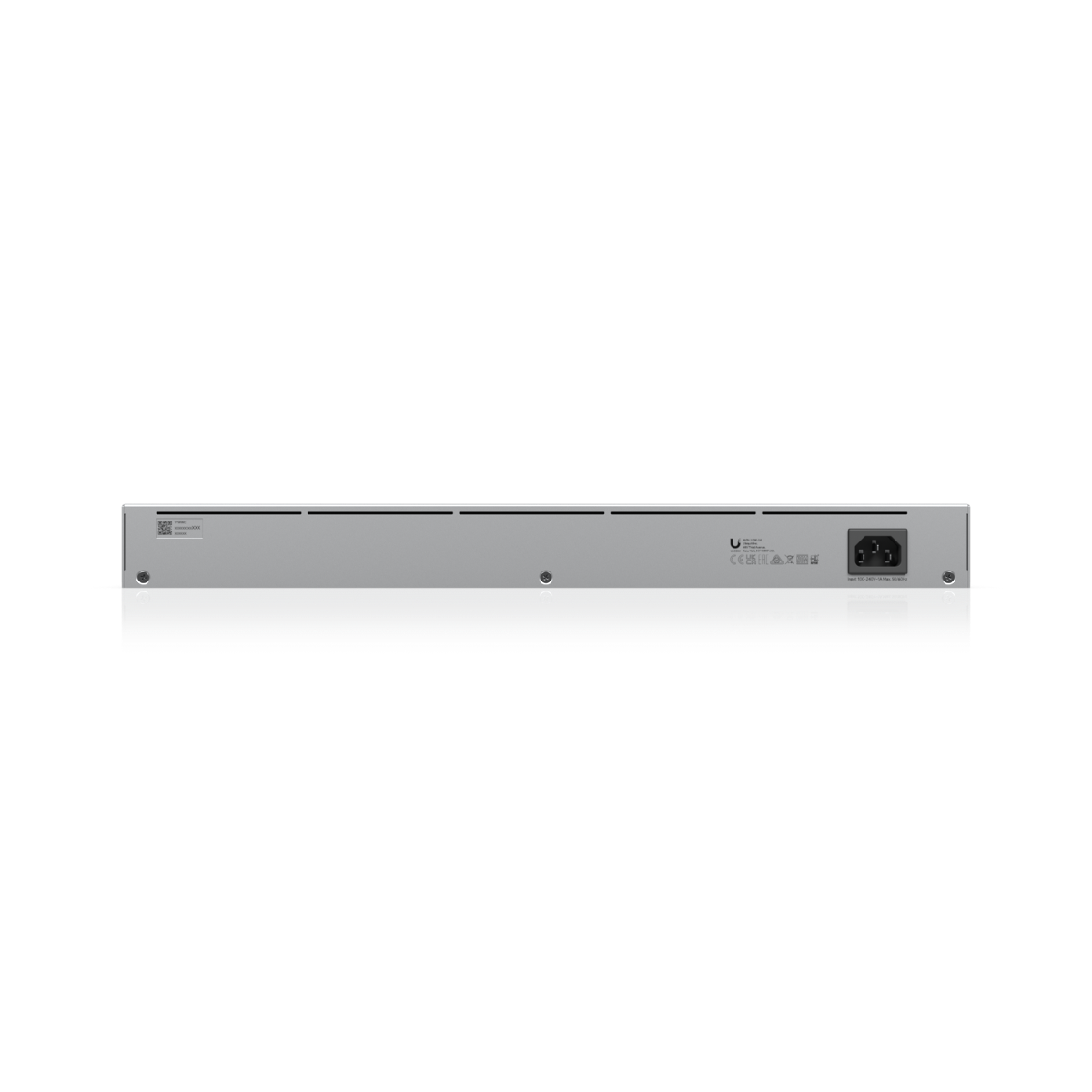

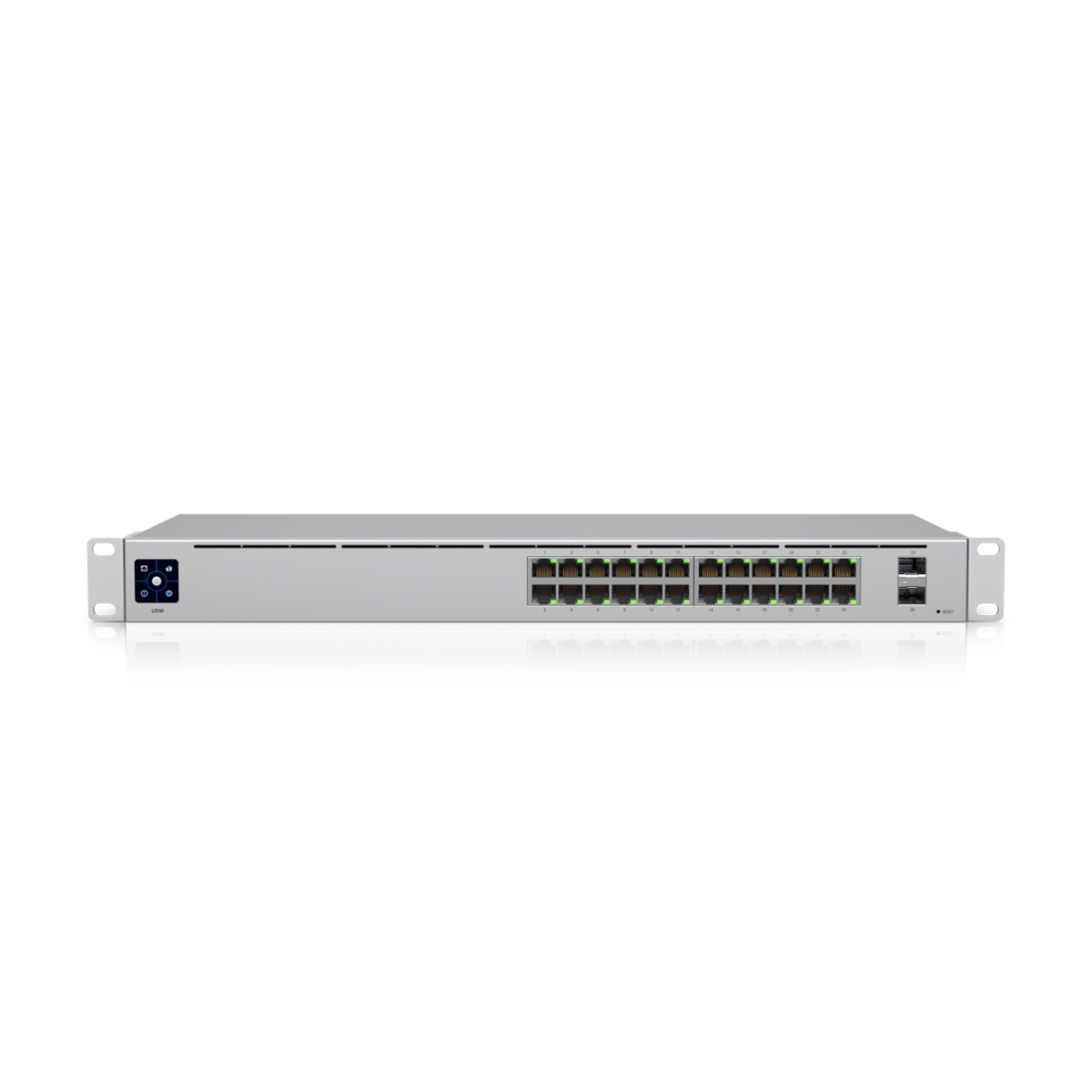

UBIQUITI USW-24 24-port Gigabit + 2xSFP, Layer 2 switch with a silent, fanless cooling system.
เพิ่มเมื่อ: 2024-10-18 12:38:04.0
แก้ไขล่าสุด: 2024-10-18 12:38:28.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comLayer 2 switch UBIQUITI USW-24 24-port Gigabit + 2xSFP
UBIQUITI USW-24
Layer 2 switch UBIQUITI USW-24 24-port Gigabit + 2xSFP
Management interface : Ethernet In-Band
Networking interface :
(24) GbE RJ45 ports
(2) 1G SFP ports
Total non-blocking throughput : 26 Gbps
Switching capacity : 52 Gbps
Forwarding rate : 38.69 Mpps
Power method : Universal input, 100—240V AC, 50/60 Hz
Power supply : AC/DC, internal, 36W
Supported voltage range : 100—240V AC
Max. power consumption : 25W
ESD/EMP protection : Air: ± 16kV, contact: ± 12kV
LCM display : (1) 1.3" touchscreen
Button : Factory reset
Ambient operating temperature : -5 to 45° C (23 to 113° F)
Ambient operating humidity : 10 to 90% noncondensing
Certifications : CE, FCC, IC
Layer 2 features :
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Dimensions : 442 x 200 x 44 mm (17.4 x 7.9 x 1.7")
Weight :
Without mounting brackets: 2.7 kg (6 lb)
With mounting brackets: 2.8 kg (6.2 lb)
Enclosure material : SGCC steel
System : Status
Ethernet : Speed/link/activity
SFP : Link/activity
