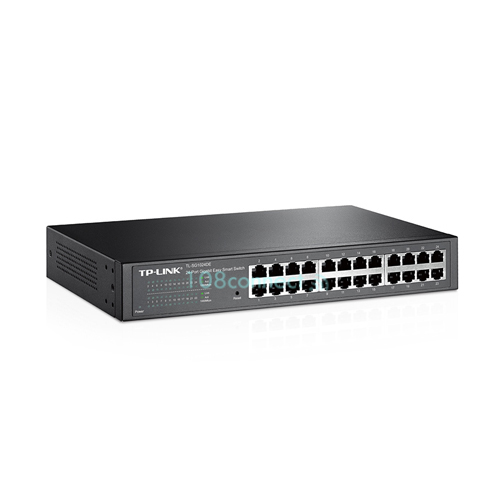

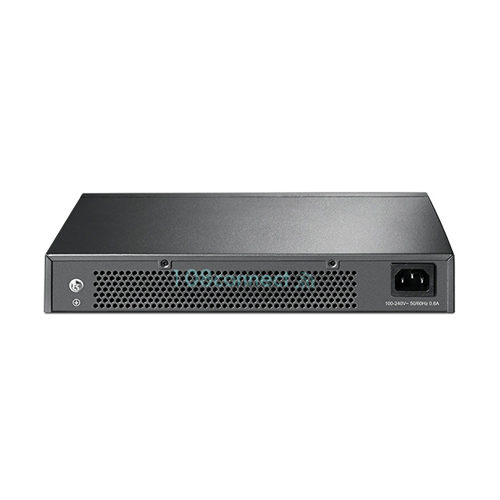

TP-LINK TL-SG1024DE 24-Port Smart Gigabit Switch
เพิ่มเมื่อ: 2017-03-09 16:56:04.0
แก้ไขล่าสุด: 2019-05-06 16:48:49.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.com๋JetStream 24-Port Smart Gigabit Switch(สินค้ารับประกัน ตลอดอายุการใช้งาน)
TP-LINK TL-SG1024DE
TL-SG1024DE JetStream 24-Port Smart Gigabit Switch
- 24 10/100/1000Mbps ports provide instant large file transfers.
- Innovative energy-efficient technology reduces power consumption by up to 40%.
- IEEE 802.3x flow control provides reliable data transfers.
- 10K Jumbo frame improves performance of large data transfers.
- Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics.
- Port and tag-based QoS enable smooth latency-sensitive traffic.
- Abundant VLAN features improve network security via traffic segmentation.
- IGMP Snooping optimizes multicast applications.
Standards and Protocols
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface
- 24 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ù STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ù STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ù STP (maximum 100m)
Dimensions (W X D X H)
- 11.6*7.1*1.7 in. (294*180*44 mm)
Fan Quantity
- Fanless
Power Supply
- 100-240VAC, 50/60Hz
Performance
- Switching Capacity 48Gbps
- MAC Address Table 8K
- Packet Buffer Memory 512KB
- Packet Forwarding Rate 35.7Mpps
- Jumbo Frame 10240Bytes
Quality of Service
- Support Port Based/802.1p Based priority
- Support 4 priority queues
- Rate Limit
- Storm Control
L2 Features
- IGMP Snooping
- Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
VLAN
- Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
Transmission Method
- Store-And-Forward
Certification
- FCC, CE
Package Contents
- TP-LINK TL-SG1024DE Jetstream Switch, Power Cord, Installation Guide, Resource CD,
Rackmount Kit, Rubber Feet
System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista Windows 7 or Windows 8, MAC
- S, NetWare, UNIX or Linux.
Environment
- Operating Temperature: 0C~40C (32F~104F)
- Storage Temperature: -40C~70C (-40F~158F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
