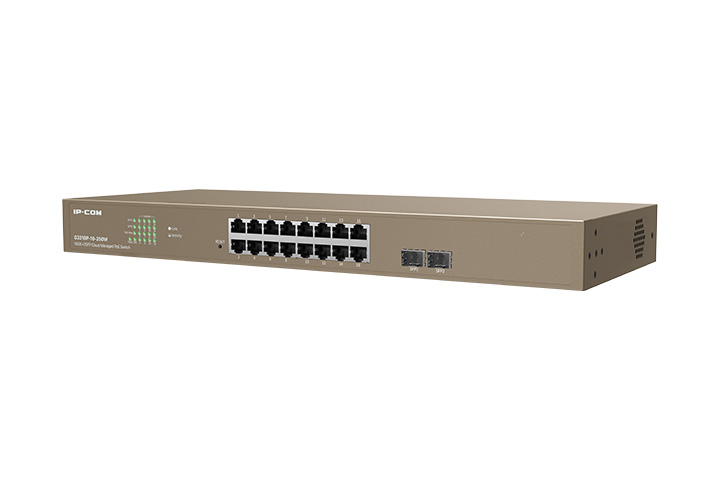

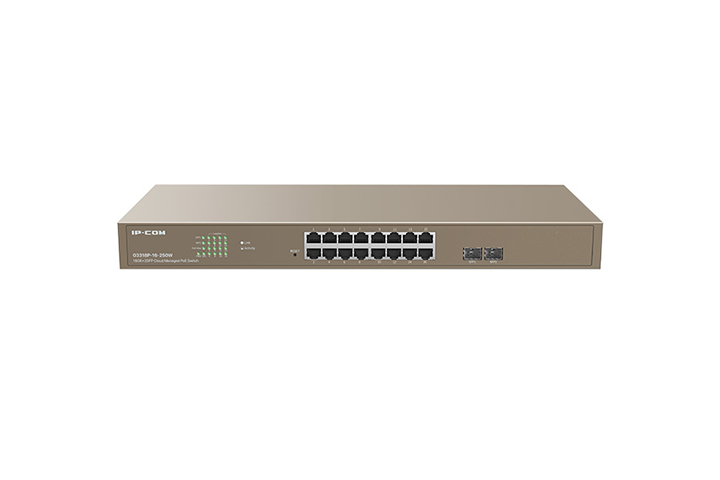

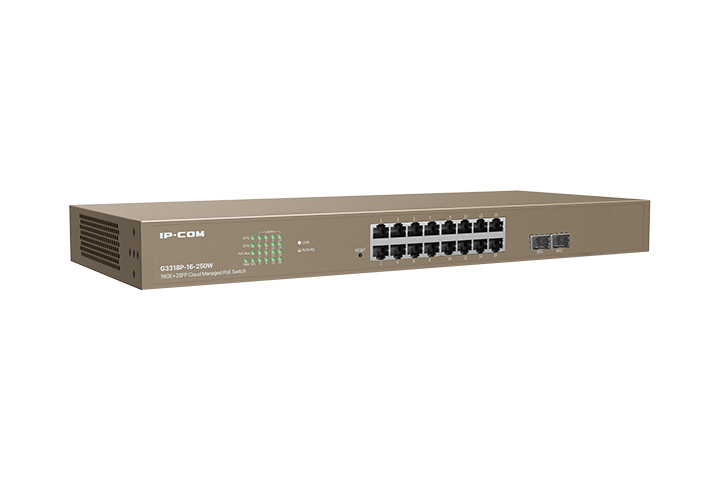

IP-COM G3318P-16-250W 16GE+2SFP Cloud Managed PoE Switch Giagabit
เพิ่มเมื่อ: 2024-01-19 17:58:09.0
แก้ไขล่าสุด: 2024-10-29 13:05:22.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comPoE Switch Giagabit IP-COM G3318P-16-250W 16GE+2SFP Cloud Managed PoE Switch Gigabit (สินค้ารับประกัน 3 ปี)
IP-COM G3318P-16-250W
G3318P-16-250W 16GE+2SFP Cloud Managed PoE Switch
- Compliance with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p/q/w/d, and IEEE 802.3af/at standards
- 16 x 10/100/1000 Base-T Ethernet ports (Data/Power) 2 x 100/1000 Base-X SFP ports
- 8K MAC address and MAC address automatic learning
- IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control
- Non-blocking line-rate forwarding for all ports
- Maximum output power of a single PoE port: 30W Maximum output power of the whole switch: 230W
- IEEE 802.1Q VLAN Link aggregation QoS MAC address binding
- Supports App management and visualized local management
Specification
Hardware specifications
Standards :
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.3af, IEEE 802.3at
LED indicators :
1 Link/Ack LED indicator for each port
1 PoE Max LED indicator for each device
1 Power LED indicator for each device
1 SYS LED indicator for each device
Interfaces :
16 x 10/100/1000 Base-T Ethernet ports (Data/Power)
2 x 100/1000 Base-X SFP ports
Port Lightning Protection :
≥6KV
Forwarding mode :
Store-and-forward
Switching capability :
36 Gbps
Packet forwarding rate :
26.8 Mpps
MAC address table :
8K
PoE Power Supply :
Ports 1 to 16 support 802.3af/at standard
1 2 4 5 +, 3 6 7 8 -
Input voltage :
100-240V～ 50/60Hz
Dimensions(L*W*H) :
440 mm * 178.8 mm * 44 mm
Whole Switch Power Consumption :
Whole switch power consumption: <250W; Maximum PoE output power: 230W
Operating environment :
Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%)RH, non-condensing
Storage humidity: (5% - 90%)RH, non-condensing
Software specifications
PoE Power Supply Management :
Port PoE configuration and power supply priority configuration supported
PoE over-temperature protection supported
Smart graphical management and PoE-powered device detection supported
(port status, power assignment, and PoE-powered device status)
Security Features :
MAC address binding supported
VLAN :
IEEE 802.1Q VLAN supported
Port aggregation :
Static aggregation supported
Dynamic aggregation supported
Spanning tree :
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) supported
Port Mirroring :
N: 1 port mirroring supported
QoS :
FIFO (First-In, First-Out) supported
SP (Strict Priority) supported
WP (Weighted Priority) supported
Loading & Upgrade :
HTTP upgrade supported
Configuration import and export supported
Cloud management :
Supports configuration delivery from IMS cloud platform
Supports log reporting and fault detection
Supports remote maintenance: reboot, backup, upgrade
Local visualization management :
Supports router, switch, AP, IP camera discovery
Supports automatic generation of topology
Supports online/offline status detection for devices
Supports remotely rebooting the IP camera
Certificates :
CCC, FCC, CE, RoHS
