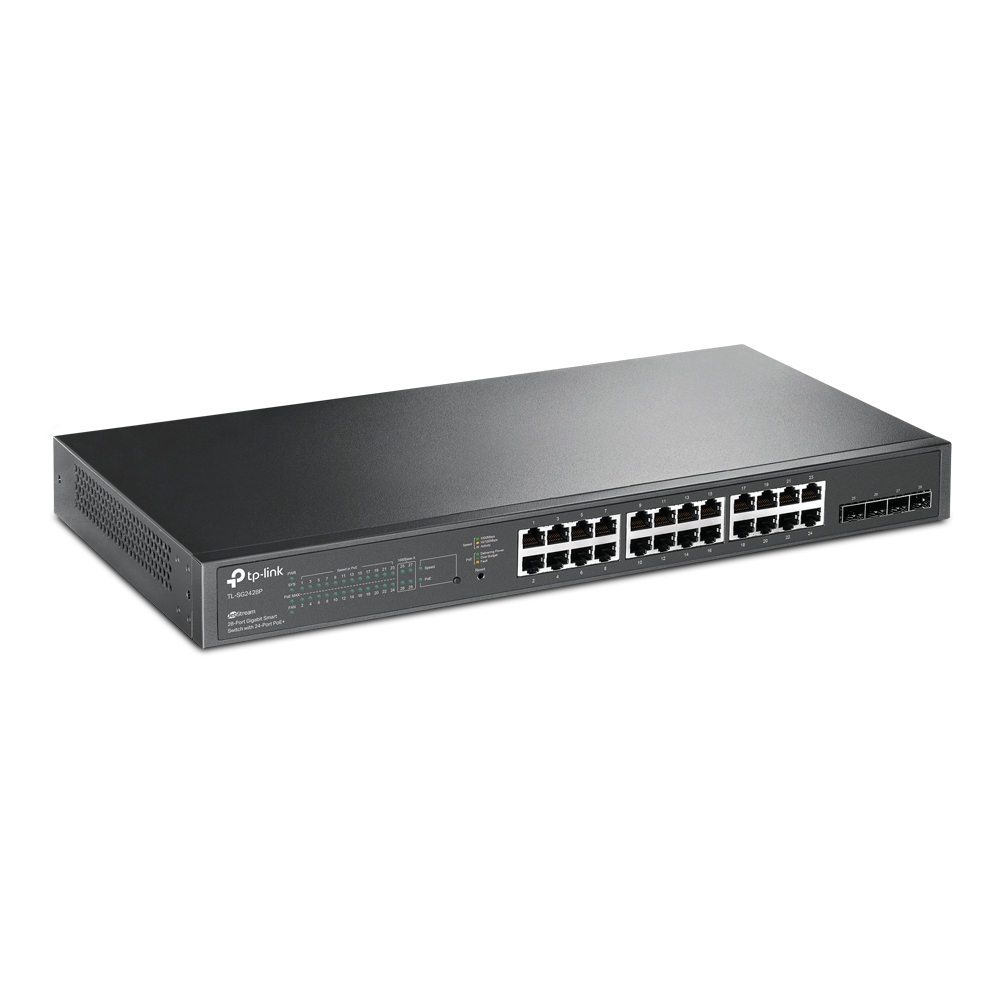

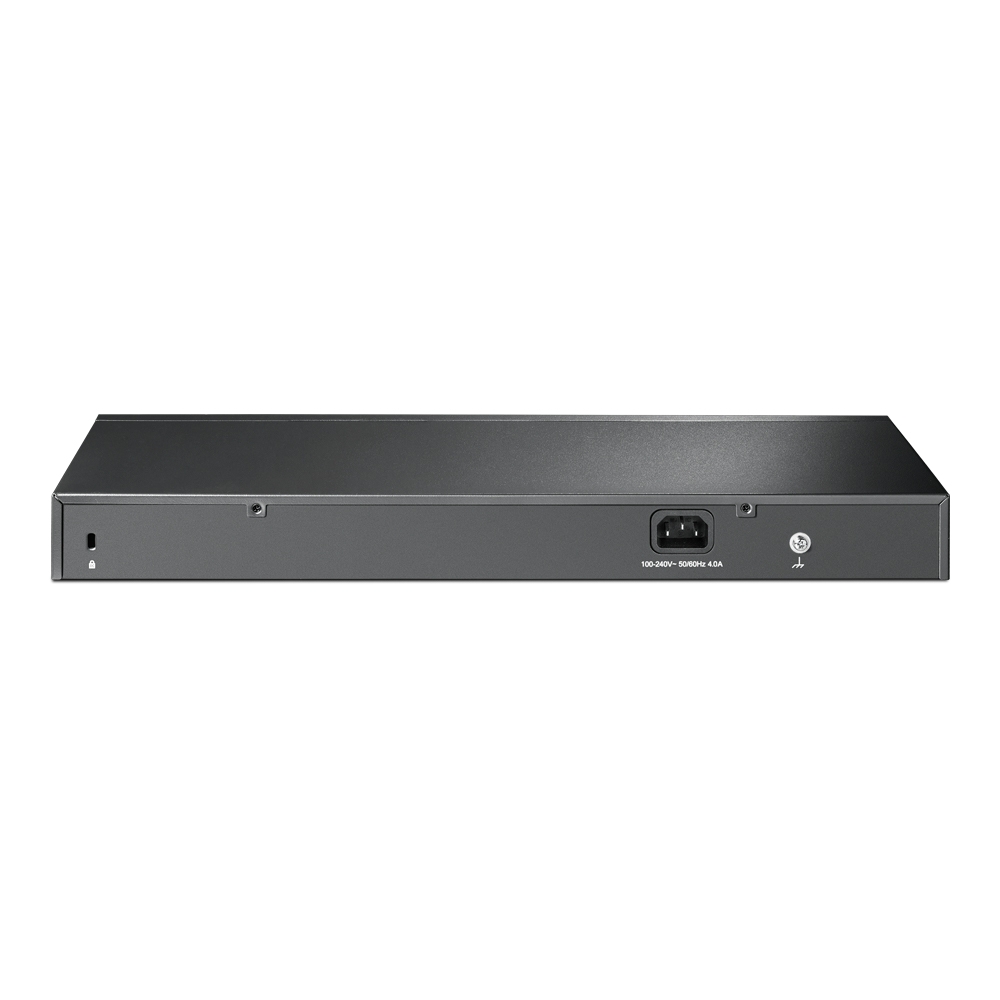

TP-LINK TL-SG2428P JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+
เพิ่มเมื่อ: 2022-11-11 11:16:33.0
แก้ไขล่าสุด: 2024-02-13 16:39:43.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comฮับสวิตซ์จ่ายไฟ TL-SG2428P JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+, 4× Gigabit SFP Slots, 802.3at/af, 250 W PoE Power
TP-LINK TL-SG2428P
TL-SG2428P JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+, 4× Gigabit SFP Slots, 802.3at/af, 250 W PoE Power
- 250 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*.
- Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent
Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping,
802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.
Specifications
Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface :
• 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 4× Gigabit SFP Slots
Network Media :
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• 1000BASE-X: MMF, SMF
Fan Quantity : 2
Power Supply : 100-240V AC, 50/60Hz
PoE Ports (RJ45) :
• Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports
• PoE Power Budget: 250 W*
Dimensions ( W x D x H ) : 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Mounting : Rack Mountable
Switching Capacity : 56 Gbps
Packet Forwarding Rate : 41.7 Mpps
MAC Address Table :
• V1, V2, V4 and above: 8K
• V3: 16K
Packet Buffer Memory : 4.1 Mbit
Jumbo Frame : 9 KB
Package Contents :
• TL-SG2428P
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
