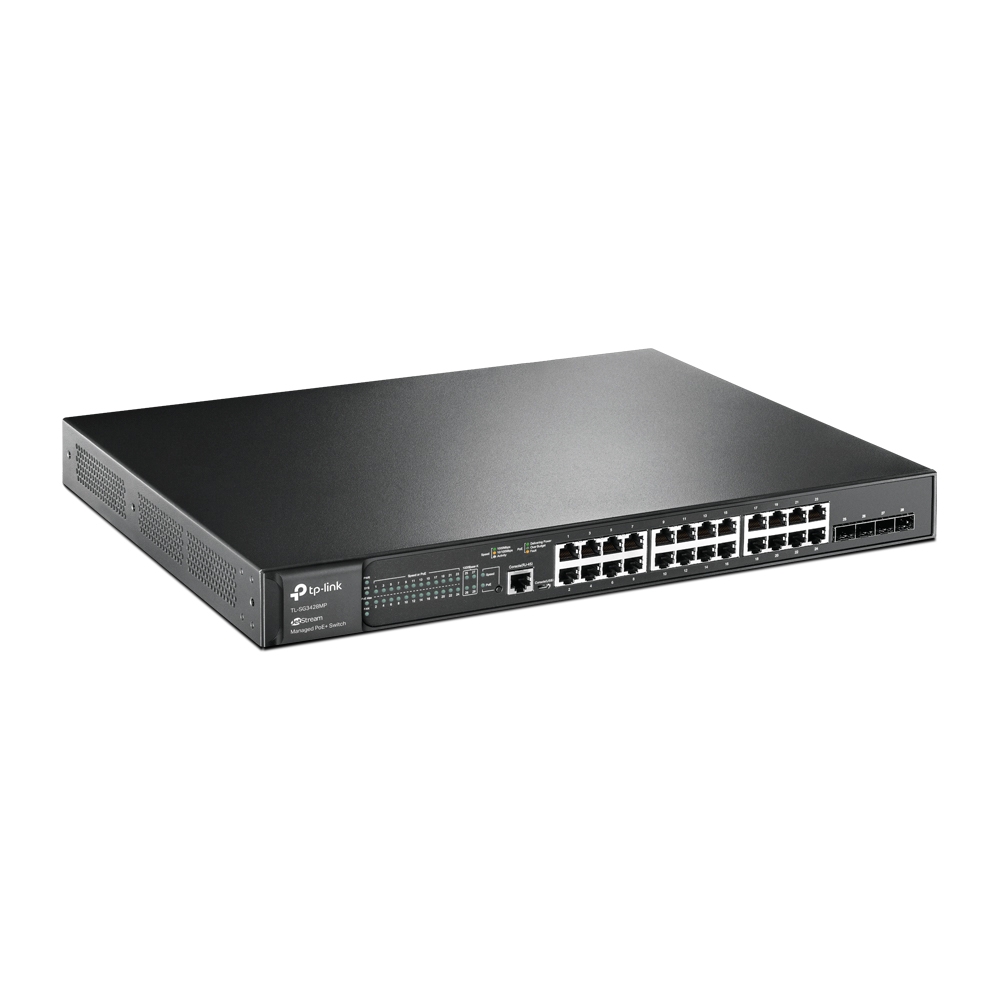

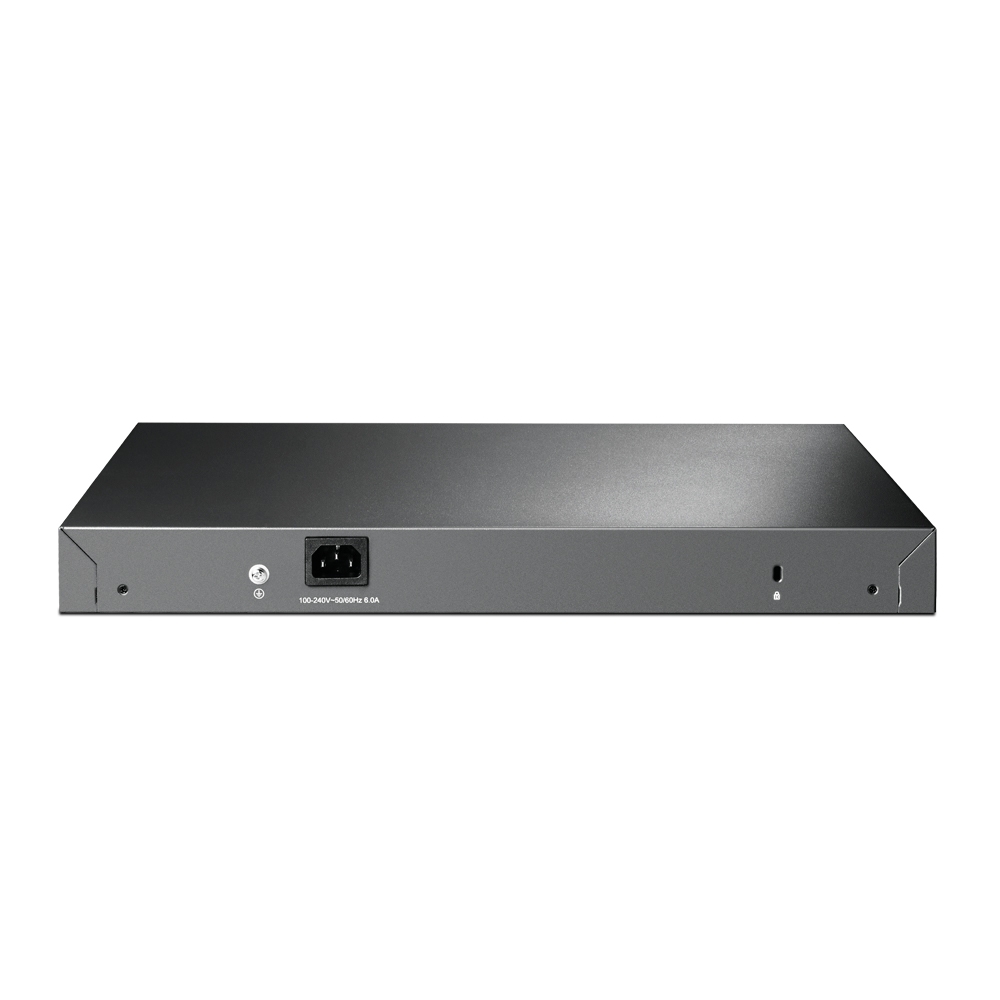

TP-LINK TL-SG3428MP JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+
เพิ่มเมื่อ: 2021-04-28 13:47:12.0
แก้ไขล่าสุด: 2023-11-17 14:20:20.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comฮับสวิตซ์แบบจัดการและจ่ายไฟ TL-SG3428MP JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+, 4× 10G SFP+ Slots, 384 Watt PoE Budget
TP- LINK TL-SG3428MP
TL-SG3428MP JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+, 4× 10G SFP+ Slots, 384 Watt PoE Budget
- 384 W PoE Budget : 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
- Full Gigabit Ports : 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN : Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management : Cloud access and Omada app for ultra convenience and easy management.
- Static Routing : Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies : IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications : L2/L3/L4 QoS and IGMP snooping.
- Standalone Management : Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Interface :
- 24× 10/100/1000Mbps RJ45 Ports
- 4× Gigabit SFP Slots
- 1× RJ45 Console Port
- 1× Micro-USB Console Port
Fan Quantity :
- 2
Power Supply :
- 100-240 V AC~50/60 Hz
PoE+ Ports(RJ45) :
- Standard: 802.3at/af compliant
- PoE+ Ports: 24 Ports, up to 30 W per port
- Power Budget: 384 W
Dimensions ( W x D x H ) :
- 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting :
- Rack Mountable
Max Power Consumption :
- 31.0 W (110 V/60 Hz) (no PD connected)
- 463.8 W (110 V/60 Hz) (with 384 W PD connected)
Max Heat Dissipation :
- 105.78 BTU/h (110 V/60 Hz) (no PD connected)
- 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected)
Switching Capacity :
- 56 Gbps
Packet Forwarding Rate :
- 41.66 Mpps
MAC Address Table :
- 8K
Jumbo Frame :
- 9 KB
Package Contents :
- TL-SG3428MP Switch
- Power Cord
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
