TP-LINK TX401 10 Gigabit PCI Express Network Adapter
เพิ่มเมื่อ: 2021-04-19 13:01:53.0
แก้ไขล่าสุด: 2023-11-10 13:37:30.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comแลนการ์ด TX401 10 Gigabit PCI Express Network Adapter (สินค้ารับประกันตลอดอายุการใช้งาน)
TP-LINK TX401
TX401 10 Gigabit PCI Express Network Adapter
- 10 Gbps Networking - Combined with the latest 10GBase-T Technology, TX401 delivers extreme speeds of up to 10 Gbps, which is 10× faster than typical Gigabit adapters, guaranteeing smooth data transmissions for both internet access and local data transmissions.†
- Versatile Compatibility - With extreme speed and ultra-low latency, 10GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.

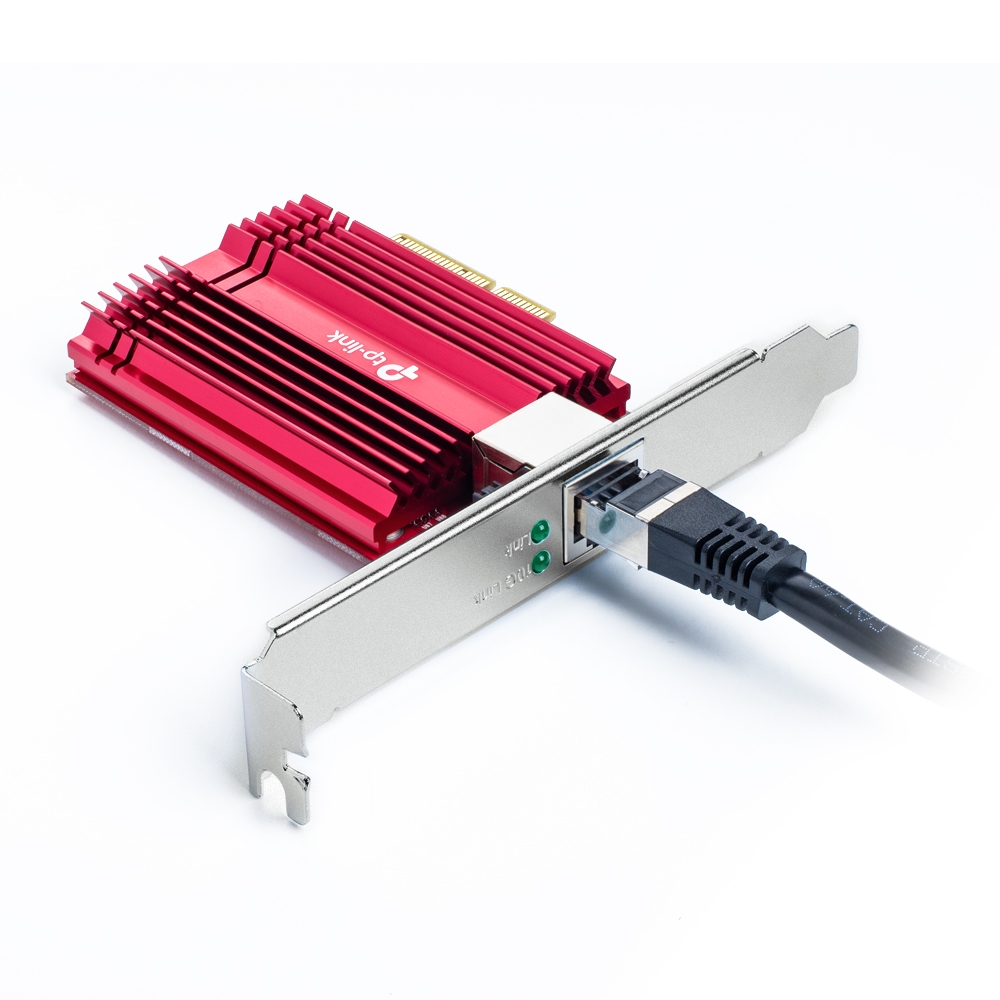

- CAT6A Ethernet Cable - To maximize TX401's performance, a 1.5 m CAT6A Ethernet Cable is included—rated for up to 10 Gbps while a regular cable is only rated for 1 Gbps.

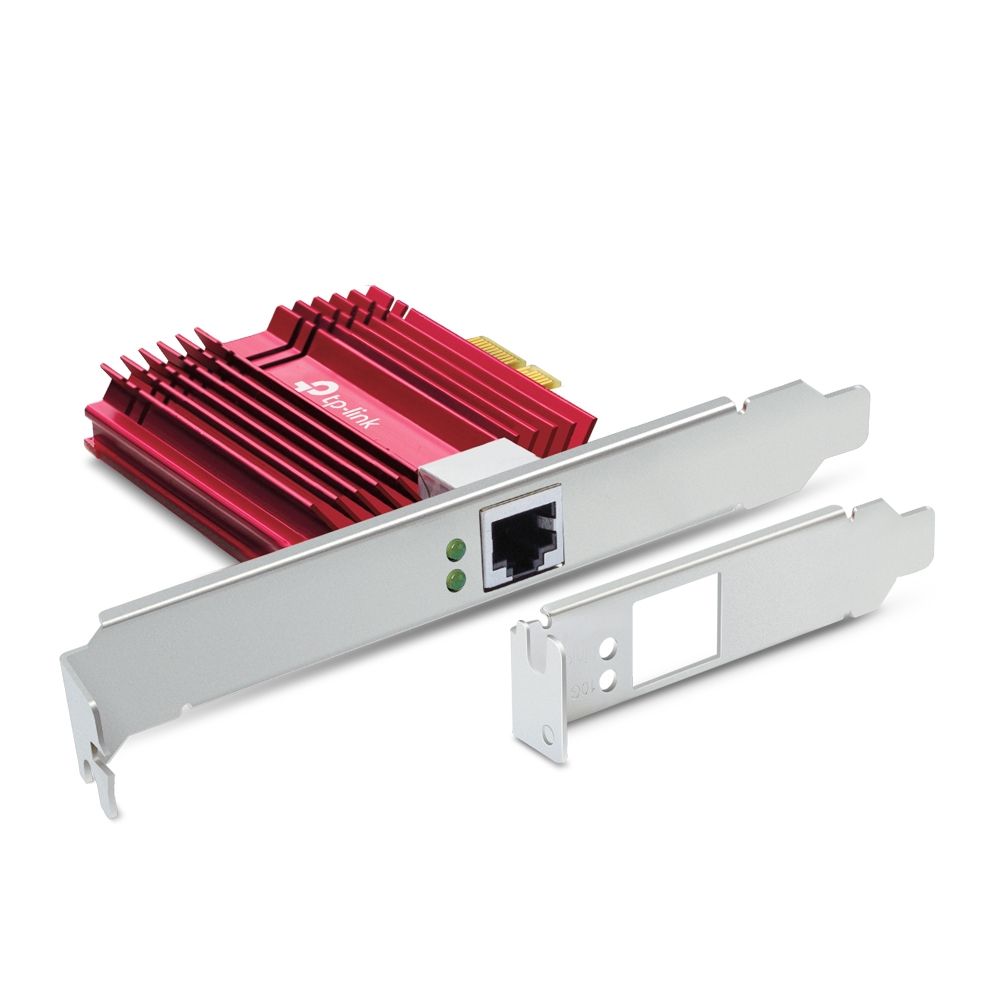

- Low-Profile and Full-Height Brackets - In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.
- Comprehensive System Support - Fully compatible with Windows 10/8.1/8/7, Windows Servers 2019/2016/2012 R2, and Linux to meet your diverse operating system needs.
Standards and Protocols :
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE802.3an,
- IEEE802.3az, IEEE 802.3x
Interface :
- 1× PCI Express 3.0 x4, 1× RJ45 Gigabit/Megabit Port
Network Media :
- 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX
LED :
- 10 Gbps Link/Act, 5 / 2.5 / 1 Gbps and 100 Mbps Link/Act
Data Rates :
- 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps for Half-Duplex mode,
- 200 Mbps, 2 Gbps, 5 Gbps, 10 Gbps, 20 Gbps for Full-Duplex mode
Dimensions :
- 120.8 × 98.2 × 21.5 mm (4.8 × 3.9 × 0.8 in)
Flow Control :
- 802.3x

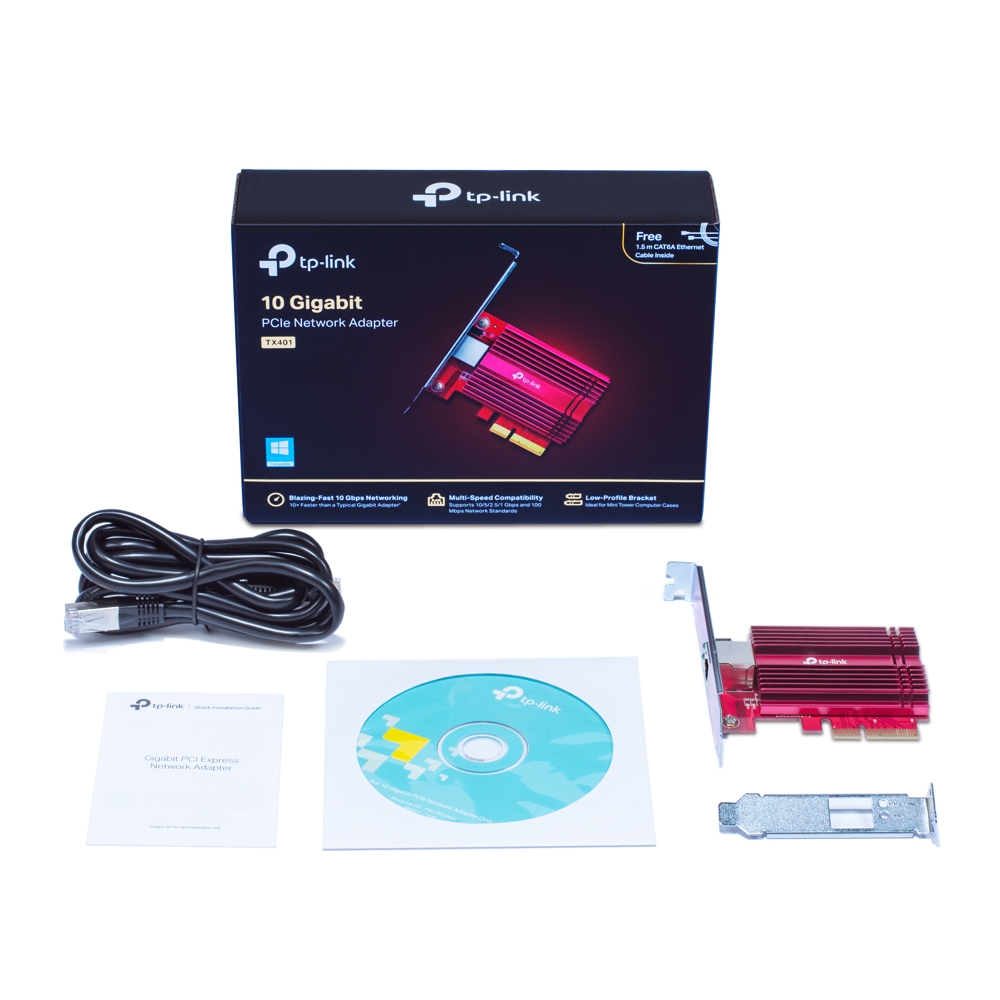

Package Contents :
- 10 Gigabit PCIe Network Adapter (TX401)
- Standard/Low-Profile Brackets
- Quick Installation Guide
- Resource CD
- 1.5 m CAT6A Ethernet Cable
System Requirements :
- Windows 10/8.1/8/7, Windows Servers 2019/2016/2012 R2, Linux
