TENDA CH7-WCA

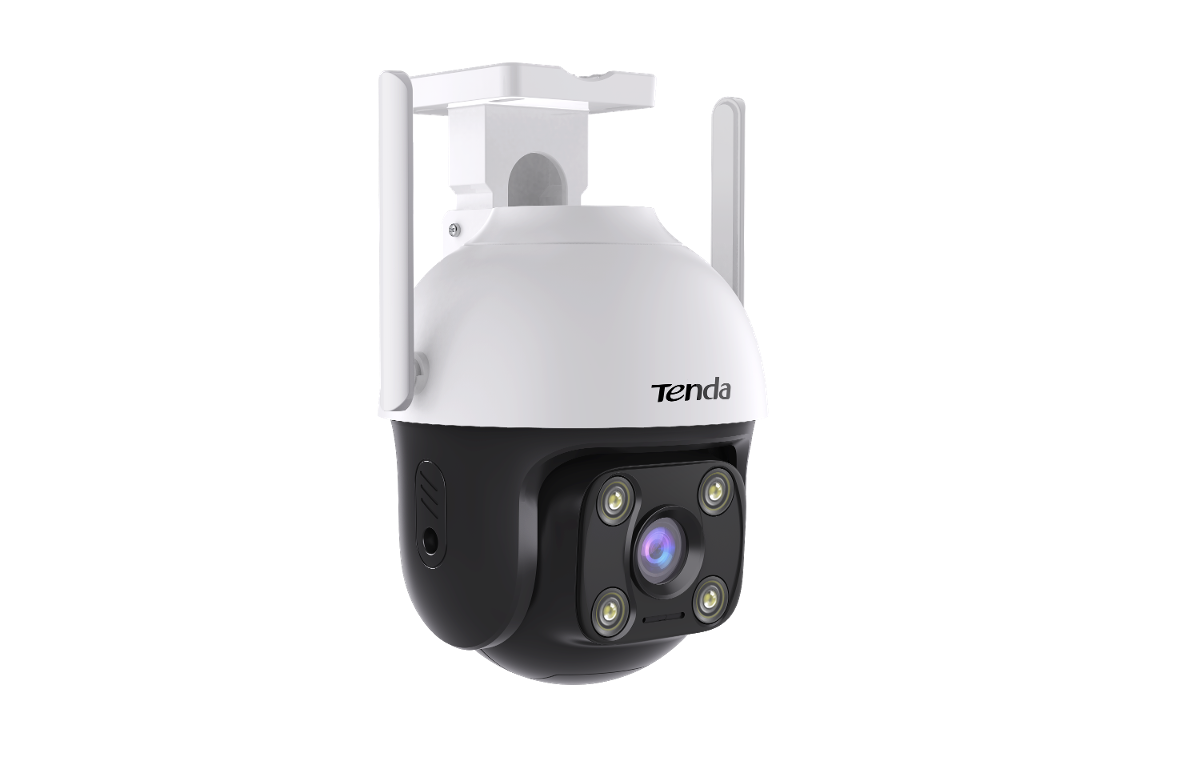

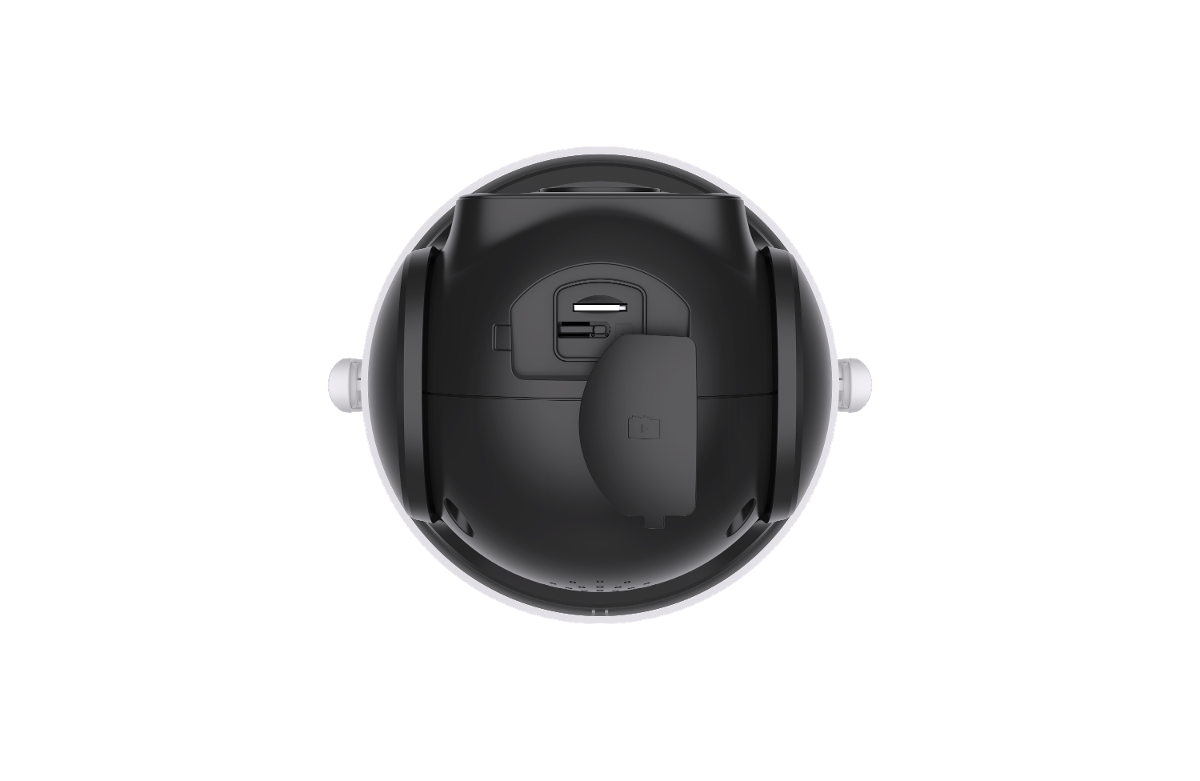

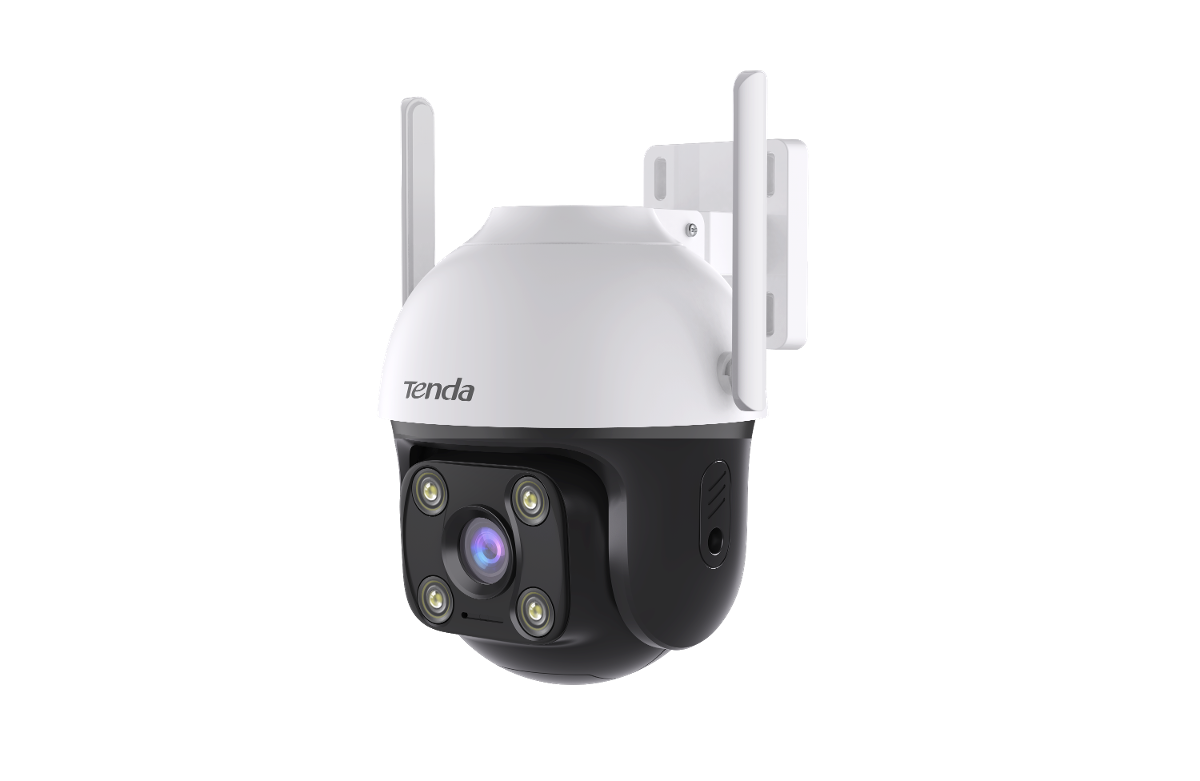

IP-CAMERA (ไอพีคาเมร่า) TENDA CH7-WCA 4MP Outdoor Dual External Atenna Pan/Tilt
The Outdoor Wi-Fi Pan/Tilt Camera CH7-WCA, is a high-performance outdoor surveillance camera that integrates 360° visual coverage，Full-Color night vision，4MP resolution video, full-duplex two-way audio, human detection, vehicle detection, sound and light alarm functions. The product is mostly used for outdoor monitoring scenarios such as courtyard, farms and shops, etc. The users can access the video via wireless or wired connection to the Internet.
Image Sensor : 1/3 Progressive Scan CMOS sensor
Day and Night : ICR type
Focal Length : 4 mm
Aperture : F1.6
FOV : Horizontal FOV: 83°, Vertical FOV: 44°, Diagonal FOV: 98.6°
Supplementary Light : 2 IR Lights, 2 Spotlights
Supplementary Light Distance : Up to 30 m/100 ft (depending on environment)
IR Wavelength : 850nm
Night Vision Mode : Smart Mode, Full Color Mode, Black & White Mode
Video Encoding Format : H.265, H.264
Main Stream Resolution : 2560 ×1440, 2304 ×1296, 1920 × 1080, 1280 × 720
Sub Stream Resolution : 640 × 360, 352 × 288
Frame Rate : 1-30fps, Default 20fps
Bit Rate : 512kbps -- 4096kbps
Bit Rate Control : CBR,VBR
Audio Encoding Format : G.711A, G.711U, AAC
Audio Sampling Rate : 8 kHz
Audio Communication : Two-way Audio, Voice Input
Image Enhancement : DWDR, BLC, HLC, 3D DNR
Privacy Mask : 4 Areas
Ethernet Port : 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
ONVIF : Support
Protocols : TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets
Web Browser : Plug-in free live view: Chrome, Edge, Opera
Pan Movement Range : 0°--355°
Tilt Movement Range : 0°--90°
Preset : 6
Patrol : Panoramic Patrol, Preset Patrol
Antenna : Dual external antennas
Wireless Standard : IEEE 802.11 b/g/n
Transmission Rate : Up to 300 Mbps
Channel Width : 20/40 MHz
Modulation : DSSS/OFDM
Frequency Band : 2.4GHz: 2412MHz-2472MHz(CH1-CH13)
Transmit Power : 2.4GHz: <0.092W(EIRP)
Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Smart Detection : Motion Detection, Tempering Detection, Human Detection, Vehicle Detection
Smart Linkage : Sound&light Alert, Human Tracking
DIY Audio : 3 Customized Audios
Audio Input : Built-in MIC
Audio Output : Built-in Speaker
Storage : Built-in Micro SD Card Slot, Up to 256 GB
Reset Button : Support
LED Indicator : Dual Color (red & blue) LED Indicator
Power : 12 V DC, 1A, Ø5.5mm&Ø2.1mm Power Plug
Material : Plastic
Smart Integration : Amazon Alexa
Product Dimension : 138 mm x 120 mm x 187 mm (5.4 × 4.7 × 7.4)
Package Dimension : 167 mm x 131 mm x 251 mm (6.6 × 5.2 × 9.9)
Product Weight : 426g (0.94lb)
With Package Weight : 840g (1.85lb)
Protection Level : IP65
Installation Method : Wall Mounting, Ceiling Mounting, Pole Mounting
Package Contents :
Camera
Power Adapter (cord length: 3m)
Installation Template
Mounting Bracket
Mounting Accessories Kit
Waterproof Kit
Quick Installation Guide
