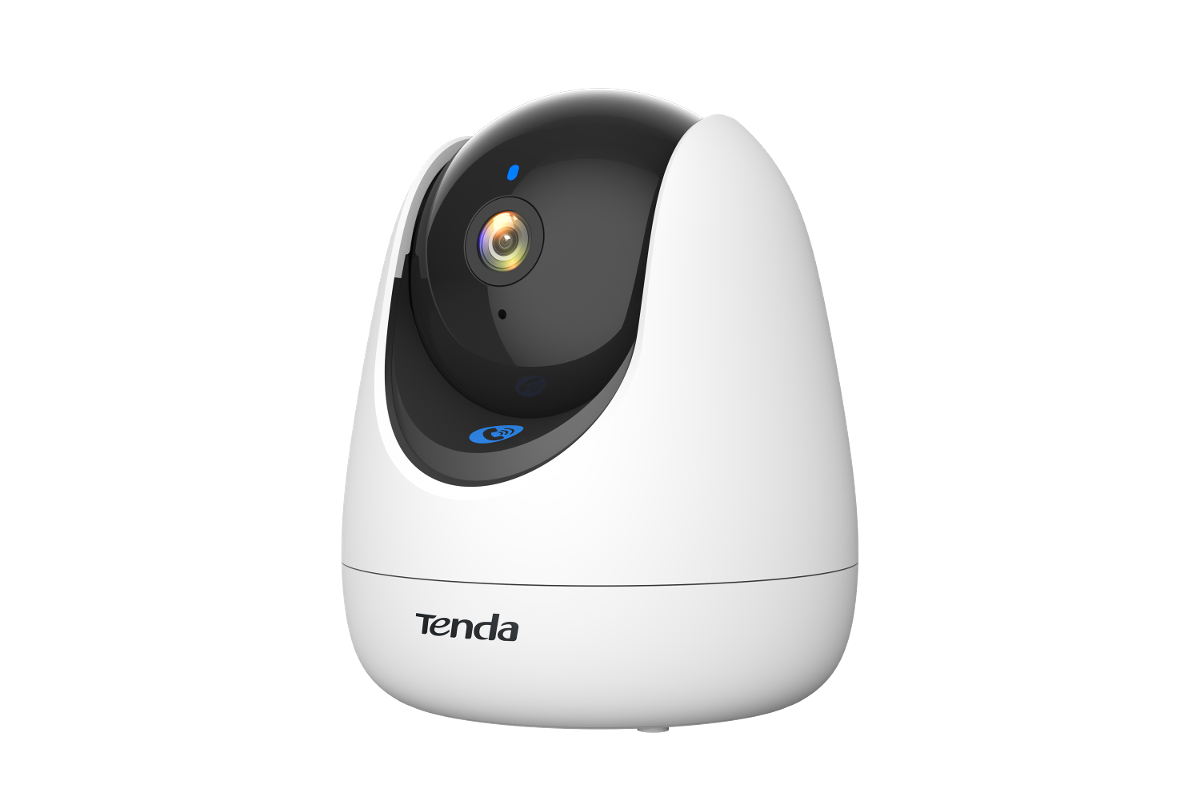

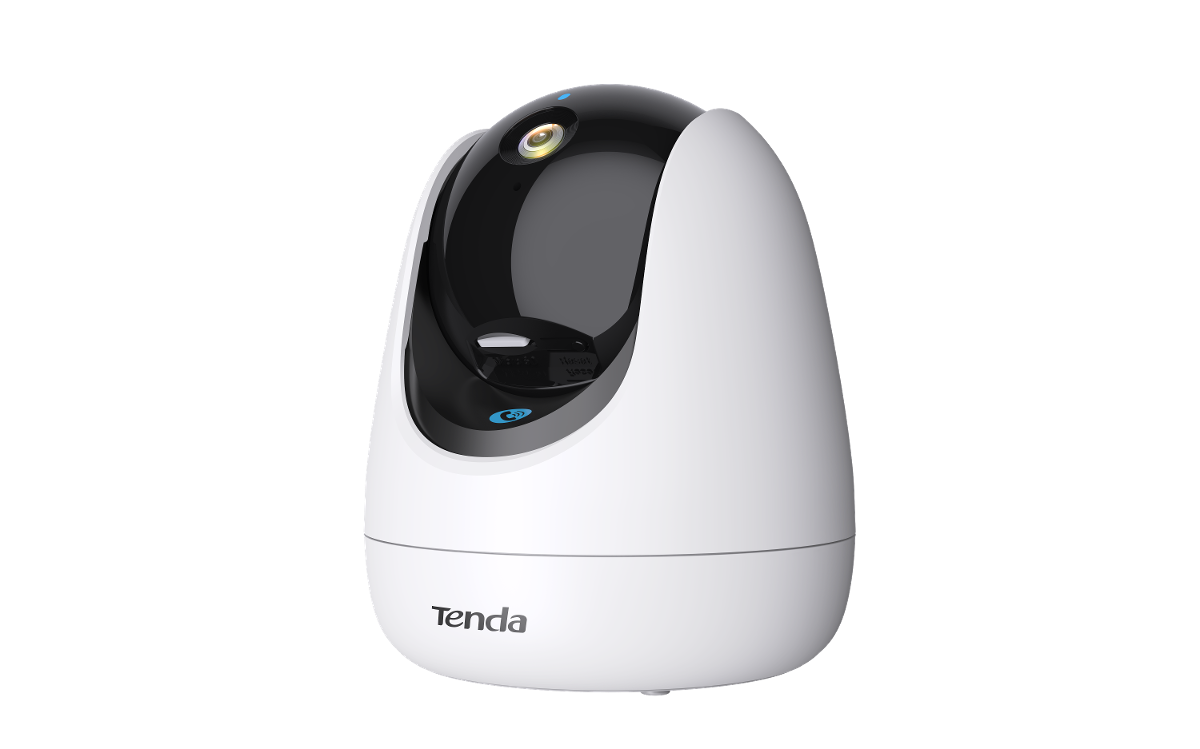

TENDA CP7V2.0
IP-CAMERA (ไอพีคาเมร่า) TENDA CP7V2.0 5MP Indoor Internal Atenna Wi-Fi 6 Pan/Tilt IP Camera
Image Sensor : 1/3 Progressive Scan CMOS sensor
Day and Night : ICR type
Focal Length : 4mm
Aperture : F2.0
FOV : Horizontal : 83.3°, Vertical : 51.3°, Diagonal : 90.6°
Supplementary Light : 2 IR Lights
Supplementary Light Distance : Up to 10 m/32 ft (depending on environment)
IR Wavelength : 850nm
Night Vision Mode : Black & White Mode
Video Encoding Format : H.265, H.264
Main Stream Resolution : 2880 x 1620,2560 x 1440,2304 × 1296, 1920 × 1080, 1280 × 720
Sub Stream Resolution : 640 x 360 , 352 x 288 , 320x240
Frame Rate : 1-30fps,Default 20fps
Bit Rate : 512kbps -- 4096kbps
Bit Rate Control : CBR,VBR
Audio Encoding Format : G.711A, G.711U, AAC
Audio Sampling Rate : 8 kHz
Audio Communication : Two-way Audio, One-touch Call
Image Enhancement : DWDR, BLC, HLC, 3D DNR
Privacy Mask : 4 Areas

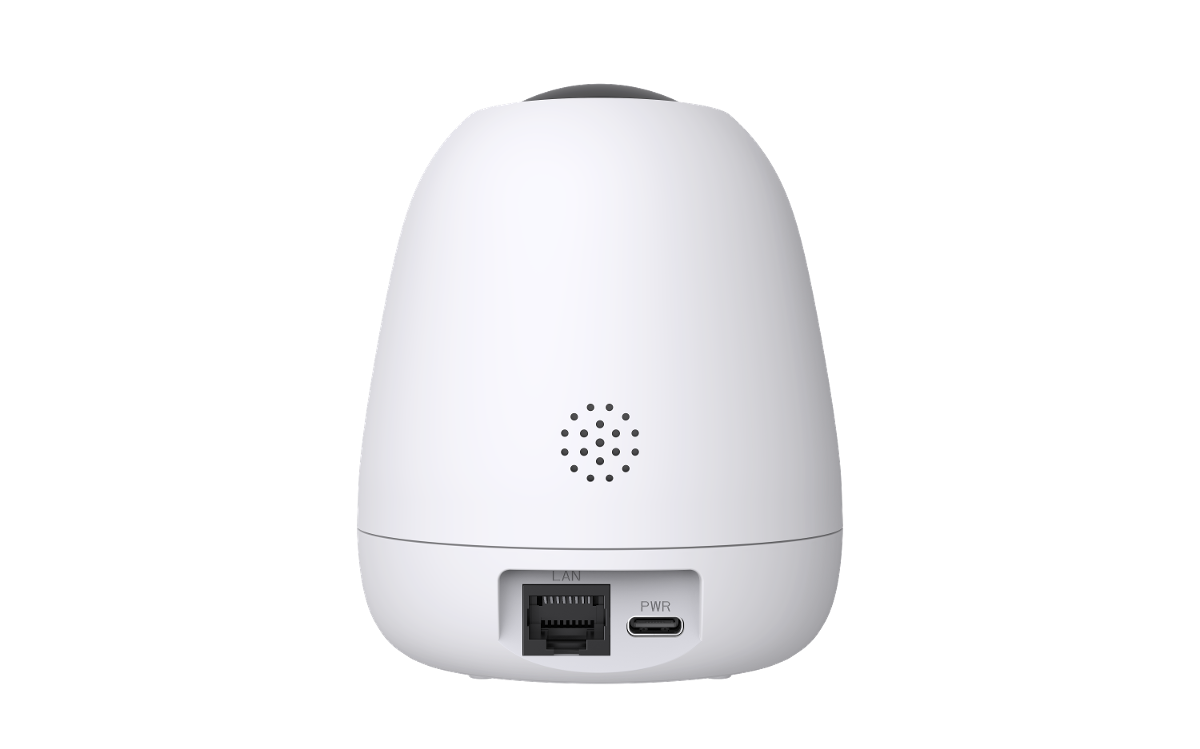

Ethernet Port : 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
ONVIF : Support
Protocols : TCP/IP, UDP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP
Web Browser : Chrome, Edge, Opera
Pan Movement Range : 0°--355°
Tilt Movement Range : -65°--90°
Preset : 6
Patrol : Panoramic Patrol, Preset Patrol
Antenna : Internal antenna
Wireless Standard : IEEE 802.11 b/g/n/ax
Transmission Rate : Up to 287Mbps
Channel Width : 20/40 MHz
Modulation : DSSS/OFDM/OFDMA
Frequency Band : 2.4GHz: 2412MHz-2472MHz(CH1-CH13)
Transmit Power : 2.4GHz: <0.1W(EIRP)
Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3‐SAE
Smart Detection : Motion Detection, Tampering Detection, Human Detection, Cry Detection
Smart Linkage : Sound&light Alert, Human Tracking
DIY Audio : 3 Customized Audios
Audio Input : Built-in MIC
Audio Output : Built-in Speaker
Storage : Built-in Micro SD Card Slot, Up to 512GB
Reset Button : Support
LED Indicator : Dual Color (red & blue) LED Indicator
Power : 5 V 1A, Type-C Power Plug
Material : Plastic
Smart Integration : Amazon Alexa
Product Dimension : 103mm x 88mm x 88mm (4.1 ×3.5 × 3.5)
Package Dimension : 100mm x 100mm x 165mm (4.0 ×4.0 × 6.5)
Product Weight : 200g (0.44lb)
With Package Weight : 370g (0.82lb)
Package Contents :
Camera
Power Adapter (cord length: 1.5m)
Installation Template
Mounting Bracket
Mounting Accessories Kit
Quick Installation Guide
|
|
|
|
