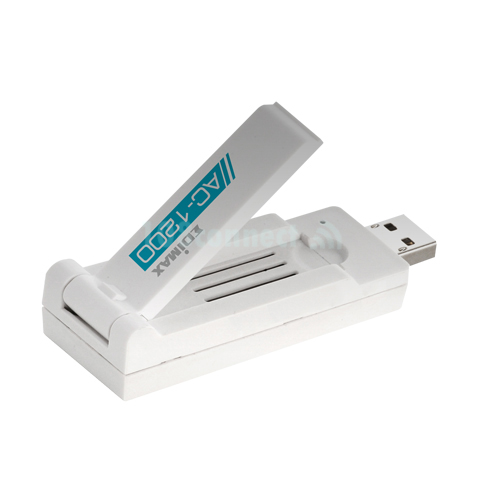

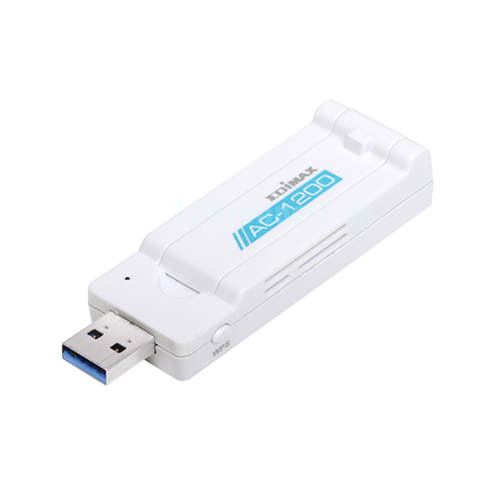

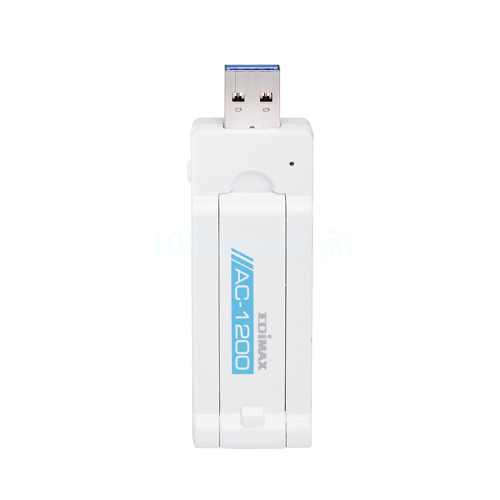

EDIMAX EW-7822UAC AC1200 Wireless Dual-Band USB Adapter
เพิ่มเมื่อ: 2020-03-19 13:50:51.0
แก้ไขล่าสุด: 2020-07-13 13:37:53.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comEW-7822UAC AC1200 Wireless Dual-Band USB Adapter 2.4GHz 300Mbps.5GHz 867Mbps
EDIMAX EW-7822UAC
EW-7822UAC AC1200 Wireless Dual-Band USB Adapter 2.4GHz 300Mbps.5GHz 867Mbps
- รับสัญญาณ WiFi 2.4GHz (300Mbps) และ 5GHz (867Mbps)
- อุปกรณ์เป็น USB 3.0
- เสาสัญญาณจำนวน 2 เสา
- World’s first AC1200 Wi-Fi Adapter with a USB 3.0 port
- Backward compatible with 802.11a/b/g/n standards

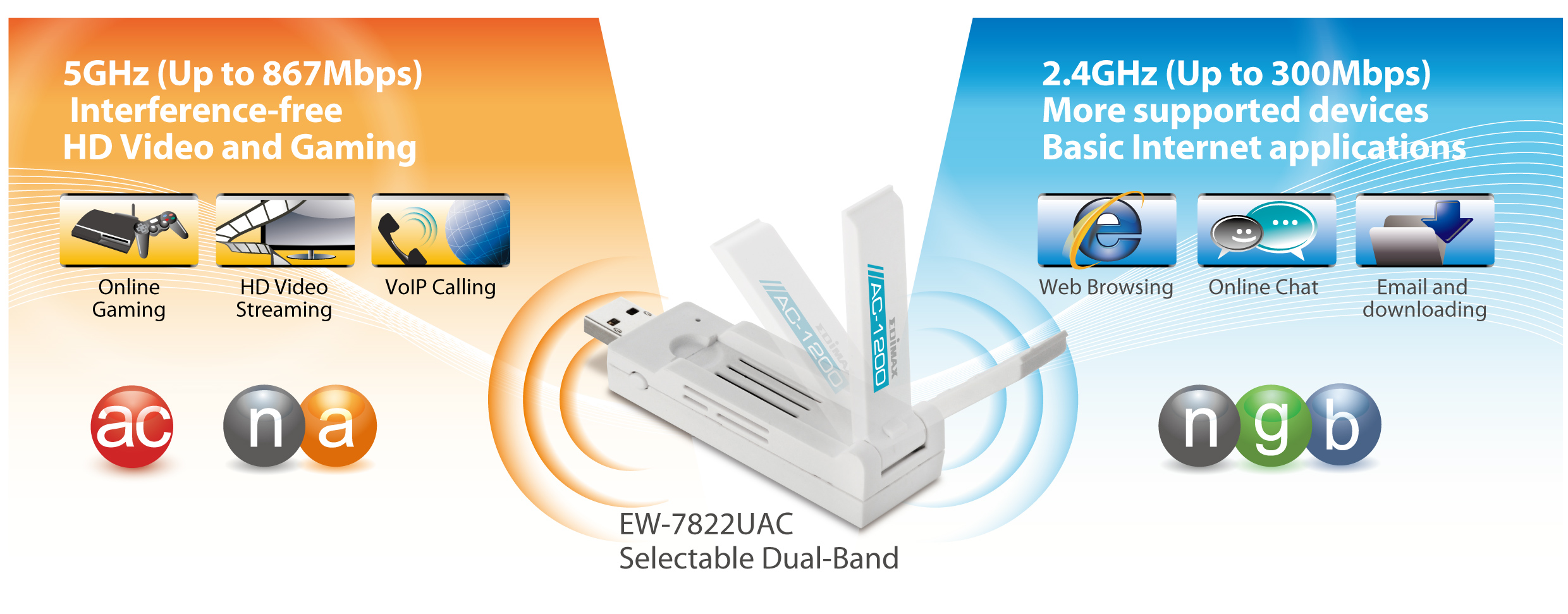

- Dual-band wireless connectivity for 2.4GHz or 5GHz

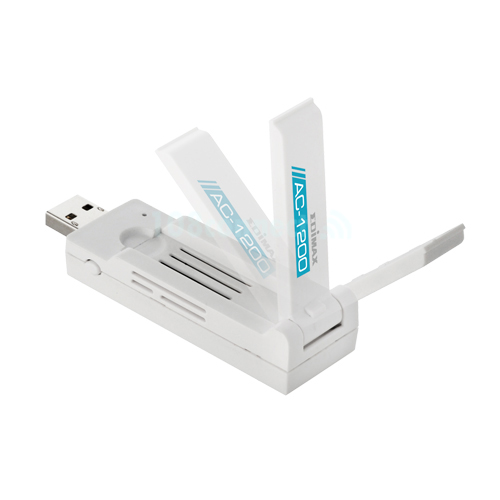

- Adjustable foldaway antenna for optimum Wi-Fi performance
- Compatible with Windows 8
- World's first for Mac OS X (10.8.4 or above supports USB 3.0)
HARDWARE
- 1 x USB 3.0 Type A
- 1 x Hardware WPS Button
- 1 x Link/Activity LED
- 2 x Antennas
STANDARDS
- 2.4GHz: IEEE 802.11b, 802.11g, 802.11n
- 5GHz: IEEE 802.11ac (Draft), 802.11a, 802.11n
FREQUENC BAND
- 2.4000 - 2.4835GHz (subject to local regulations)
- 5.150 - 5.825GHz (subject to local regulations)
OUTPUT POWER
- 2.4GHz
11b (11Mbps): 16dBm±1.5dBm
11g (54Mbps): 14dBm±1.5dBm
11n (20MHz, MCS7): 14dBm±1.5dBm
11n (40MHz, MCS7): 12dBm±1.5dBm
- 5GHz
11a (54Mbps): 12dBm±1.5dBm
11n (20MHz, MCS7): 10dBm±1.5dBm
11n (40MHz, MCS7): 10dBm±1.5dBm
11ac (80MHz, MCS7): 10dBm±1.5dBm
INSTALLATION
- Multi-language easy setup wizard
- Hardware WPS button for easy wireless connections
OPERATING RANGE
- 11a: 6/9/12/24/36/48/54Mbps
- 11b: 1/2/5.5/11Mbps
- 11g: 6/9/12/24/36/48/54Mbps
- 11n (20MHz): MCS0-15 (up to 144Mbps)
- 11n (40MHz): MCS0-15 (up to 300Mbps)1
- 1ac (40MHz): MCS0-9 (up to 400Mbps)
- 11ac (80MHz): MCS0-9 (up to 867Mbps)
LED
- Link/Activity
SECURIT
- WEP 64/128-bit, WPA, WPA2, 802.1x
- Hardware & Software WPS Configuration
TEMPERATURE & HUMIDITY
- Max. 95% (non-condensing)
- 32 - 104°F (0 - 40°C)
WEIGHT
- 23g
DIMENSIONS
- 18 (H) x 27 (W) x 87.1 (L) mm
