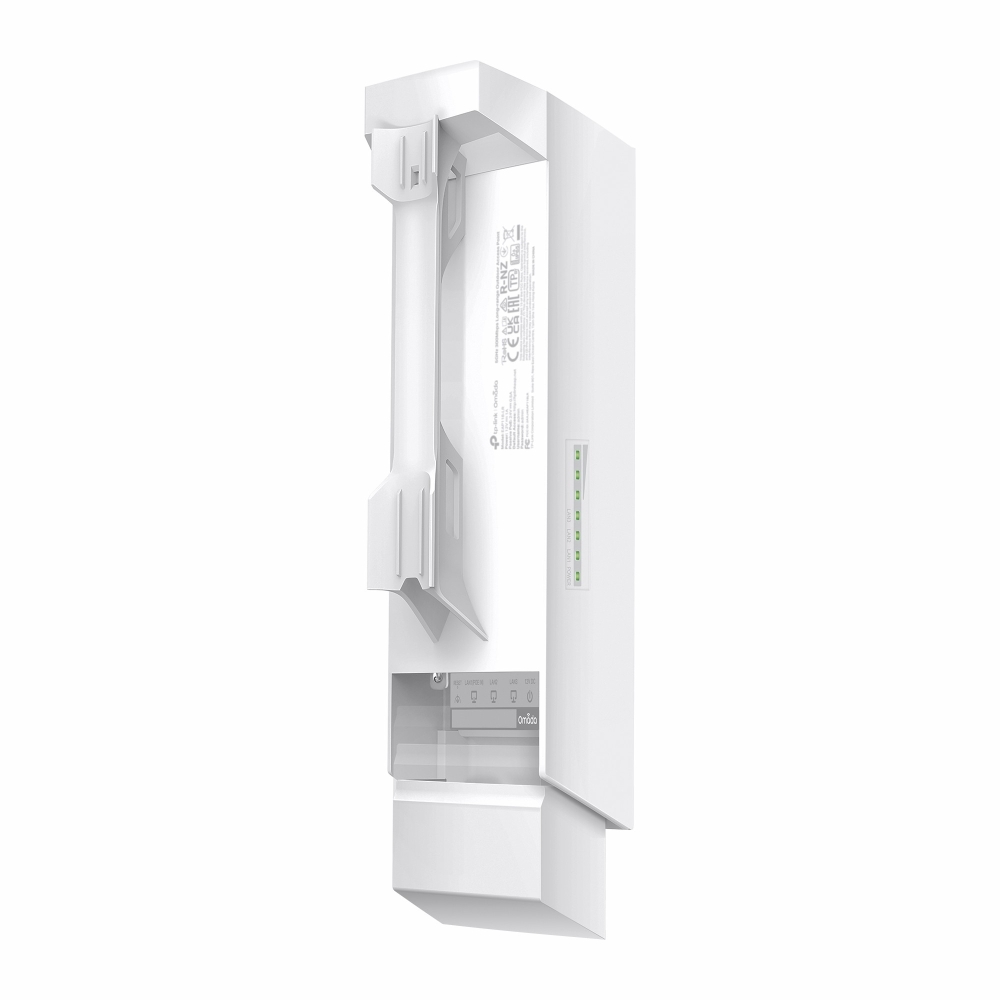

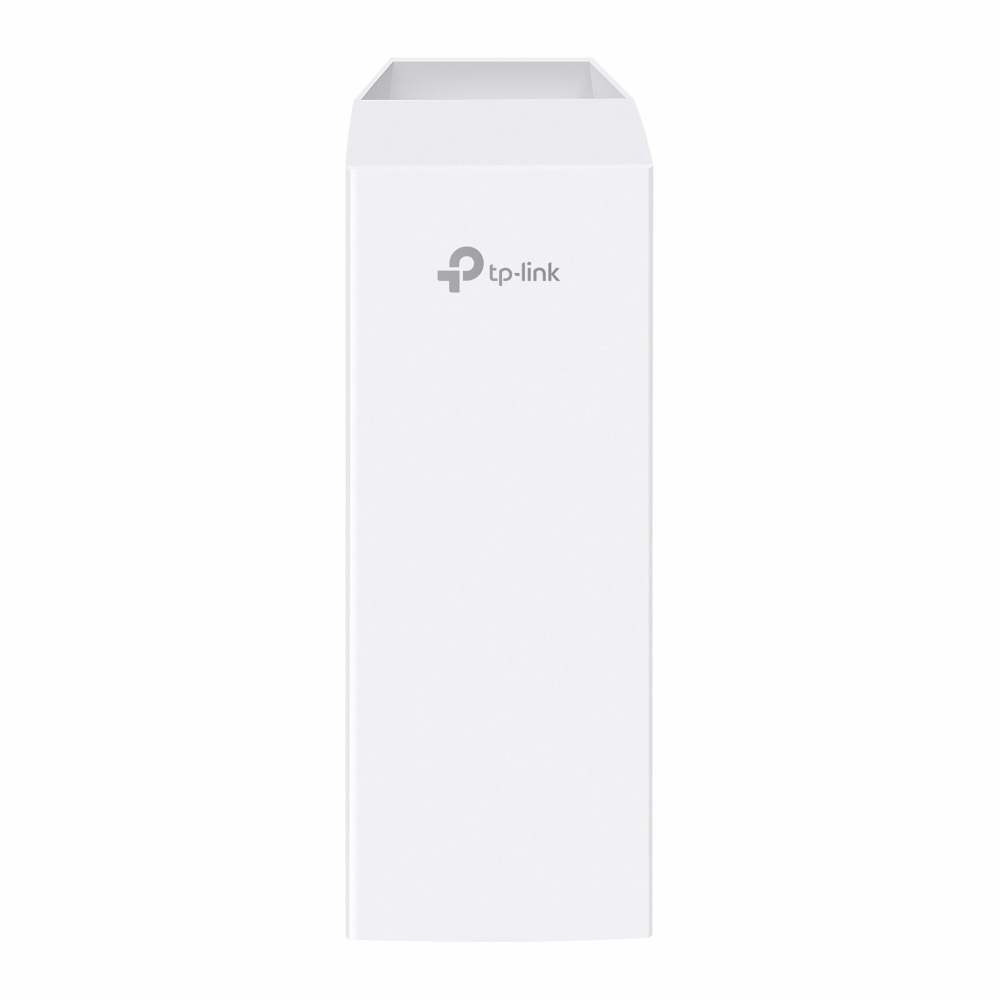

TP-LINK EAP211-Bridge KIT
ACCESS POINT (แอคเซสพอยต์) TP-LINK EAP211-Bridge KIT Omada 5GHz 867Mbps Indoor/Outdoor Wireless Bridge
- 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.
- Ideal for long-range wireless transmission up to 1 km.
- Auto-pairing and agile LEDs for efficient deployment.
- 3× Gigabit Ethernet ports for more high-speed IP camera connections.
- Supports Omada SDN for remote and centralized management.
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.
- Supports Passive PoE for flexible deployment (adapter included).
Interface : 3x Gigabit Ethernet Ports*6
Button : Reset
Power Supply : 12V DC / 24V Passive PoE (Passive PoE adapter included.)
Max. Power Consumption : 11.5W
Dimensions ( W x D x H ) : 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)
Antenna : Internal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 7.0 dBi
Horizontal:70°, Vertical: 70°
Weatherproof Enclosure : IP65
Mounting : Pole Mounting (Accessories included)
Coverage : 1000m(3280ft)5
Wireless Standards : IEEE 802.11 a/b/g/n/ac
Frequency : 5 GHz
Signal Rate : 5 GHz: Up to 867 Mbps
Wireless Functions :
• Mesh*4
• MU-MIMO: 5G 2x2 MU-MIMO DL
• Load Balance
• Seamless Roaming(802.11r)
• Beamforming
• Airtime Fairness
• Multiple SSIDs:8
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP/Dynamic IP
Wireless Security :
• VLAN
• Access Control
• Rogue AP Detection
• Captive Portal Authentication*4
• Maximum number of MAC Filter: 4,000
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise
Transmission Power :
• CE:
<23dBm (5 GHz, band 1/2, EIRP);
<28.5dBm (5 GHz, band3, EIRP)
• FCC:
<22dBm (5 GHz, band1/4)
Package Content
• EAP211-Bridge KIT
• Passive PoE Adapter
• Power Cord
• Installation Guide
• Mounting Kit
|
|
|
|
