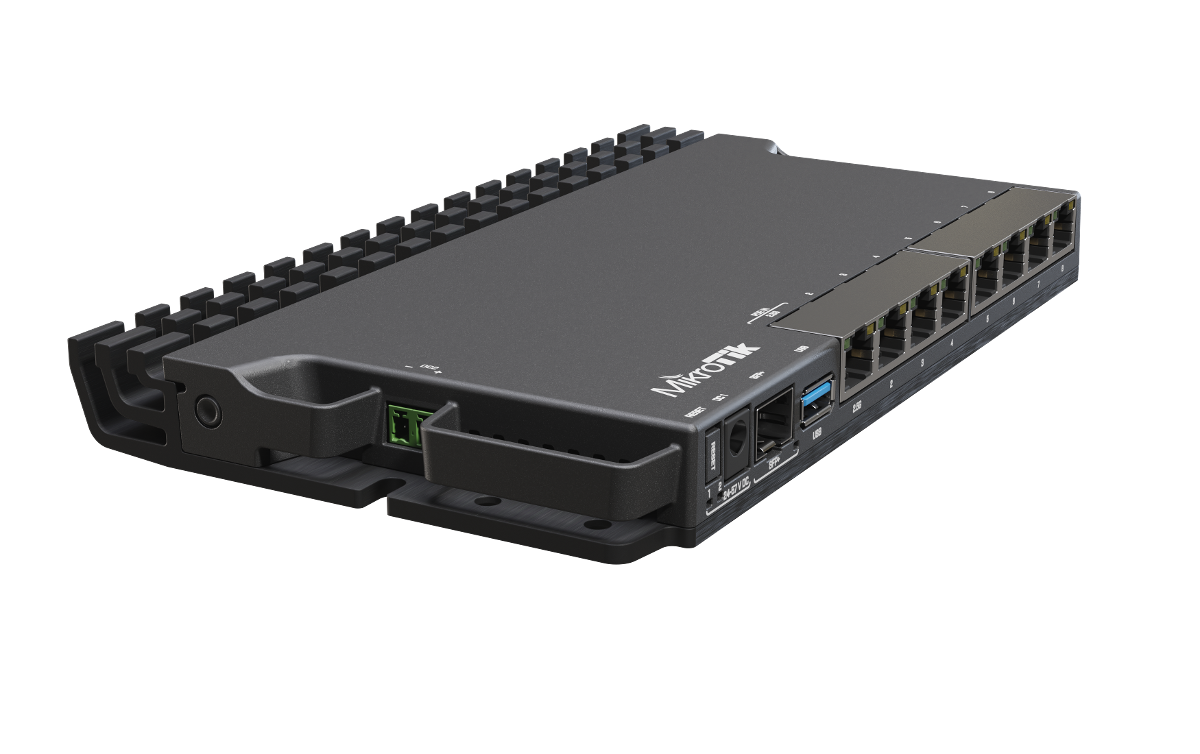

MikroTik RB5009UG+S+IN
RB5009UG+S+IN 7-Port Gigabit Ethernet + 1-Port 2.5Gigabit Ethernet + 1-Port SFP+ (1/10G) PoE IN Port 1 + 1 USB 3.0 type A
The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!
Specifications
Architecture : ARM 64bit
CPU : 88F7040
CPU core count : 4
CPU nominal frequency : 350-1400 (auto) MHz
Switch chip model : 88E6393
RouterOS license : 5
Operating System : RouterOS (v7 only)
Size of RAM : 1 GB
Storage size : 1 GB
Storage type : NAND
MTBF : Approximately 200'000 hours at 25C
Tested ambient temperature : -40°C to 60°C
IPsec hardware acceleration : Yes
Number of DC inputs : 3 (2-pin terminal, DC jack, PoE-IN)
DC jack input Voltage : 24-57 V
2-pin terminal input Voltage : 24-57 V
Max power consumption : 20 W
Max power consumption without attachments : 14 W
Cooling type : Passive
PoE in : 802.3af/at
PoE in input Voltage : 24-57 V
10/100/1000 Ethernet ports : 7
Number of 2.5G Ethernet ports : 1
SFP+ ports : 1
Number of USB ports : 1
USB Power Reset : Yes
USB slot type : USB 3.0 type A
Max USB current (A) : 1.5
