| TP-LINK ER703WP-4G-Outdoor Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway
TP-LINK ER703WP-4G-Outdoor Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway
เพิ่มเมื่อ: 2025-04-09 15:45:42.0
แก้ไขล่าสุด: 2025-04-09 15:53:22.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.com4G Router TP-LINK ER703WP-4G-Outdoor Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway
TP-LINK ER703WP-4G-Outdoor
4G Router TP-LINK ER703WP-4G-Outdoor Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway
- 4G+ Cat6 up to 300 Mbps*
- AX3000 Wi-Fi 6 with 2402 Mbps on 5GHz and 574 Mbps on 2.4GHz†#

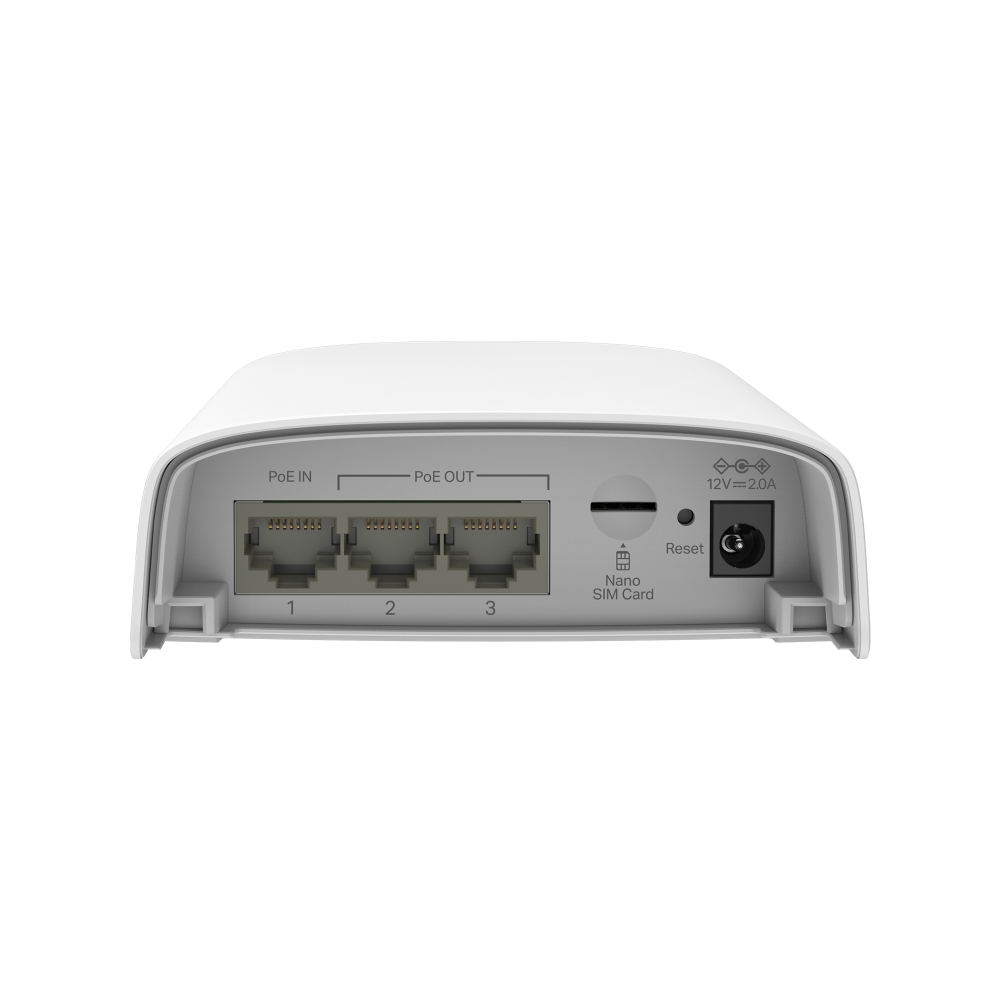

- 3 × Gigabit WAN/LAN Ports (2 × PoE Out, 1 × PoE In)
- 1 × Nano SIM Card Slot
- 802.3at/bt PoE or 12V/2A DC Power Supply
- 4G and Ethernet WAN Auto Backup with Load Balancing
- IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN§
- Centralized Management
- IP55 Weatherproofing
Interface : 3 Gigabit WAN/LAN Ports
Network Media :
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
SIM Type : 1× Nano SIM Card
Frequency :
• Downlink: 300 Mbps;
• Uplink: 50 Mbps
Button : Reset Button
Power Supply : 802.3at/bt PoE; 12VDC / 2A Power Adapter
Wi-Fi Frequency & Signal Rate :
• 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160)
Flash : 256 MB NAND
DRAM : 512 MB DDR4
LED : 4G Signal, WLAN, WAN/LAN, SYS
Dimensions ( W x D x H ) : 6.9 × 4.0 × 1.5 in (174.8 × 100.4 × 38.7 mm) (Antenna dimensions are not included)
Antenna :
• Wi-Fi: Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-in antennas
• LTE: Two 4.0dBi omnidirectional detachable antennas
Mounting : Pole/Wall-Mounting
Max. Power Consumption :
POE:62.9W max @ 220V/50Hz 25℃
DC: 16.6W max @ 220V/50Hz 25℃
Advanced Features :
• Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Rate Limit: Based on SSID/Client
• Airtime Fairness
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
• Multiple SSIDs: 16 in total (8 per radio)
Guest Network : Support
System Requirements
• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux
Package Content :
• ER703WP-4G-Outdoor
• Mounting Kits
• Quick Installation Guide
