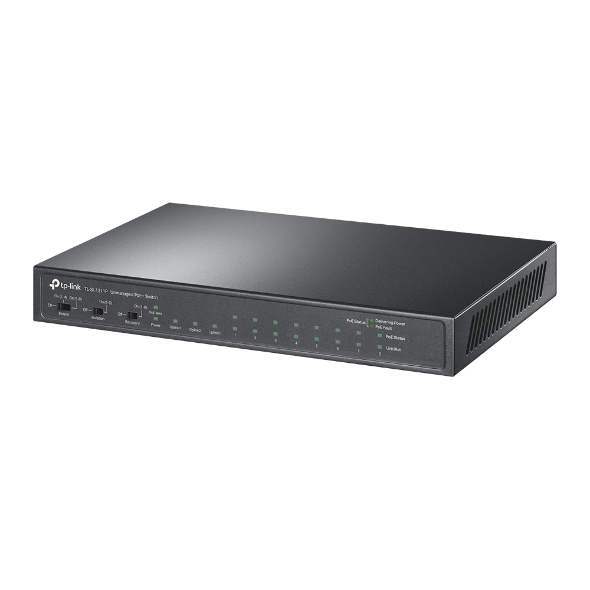

TP-LINK TL-SL1311P 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+
เพิ่มเมื่อ: 2023-09-02 19:13:45.0
แก้ไขล่าสุด: 2023-11-06 16:24:28.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comPoE Switch TL-SL1311P 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+
TP-LINK TL-SL1311P
TL-SL1311P 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+

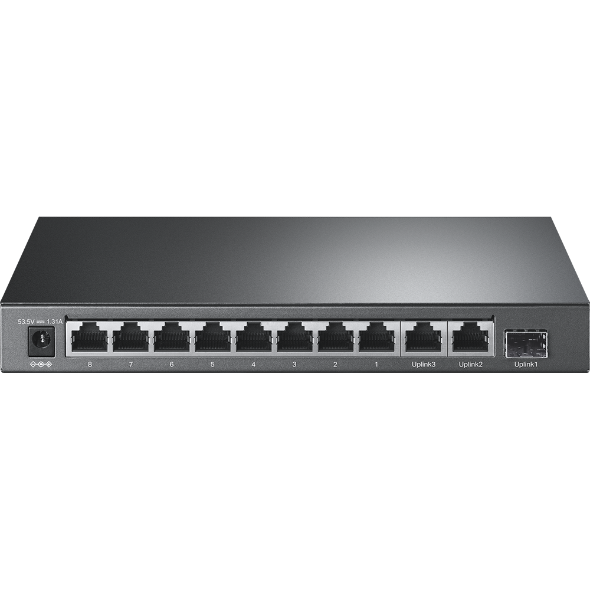

- 8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
- 8× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for 8 PoE ports*
- Up to 250 m data and power transmitting range under Extend Mode**
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
- Plug and play with no configuration required
HARDWARE FEATURES
Interface
• 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity : Fanless
Physical Security Lock : Yes
External Power Supply : External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate : 5.6544 Mpps
PoE Ports (RJ45)
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 65 W
Mac Address Table : 2K
Jumbo Frame : 16 KB
Switching Capacity : 7.6 Gbps
Dimensions ( W x D x H ) : 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max Power Consumption
• 5.61 W (220 V/50 Hz. no PD connected)
• 77.32 W (110 V/50 Hz. with 65 W PD connected)
Max Heat Dissipation
• 19.13 BTU/h (no PD connected)
• 263.7 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Transmission Method : Store-And-Forward
Advanced Functions
• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
• Isolation Mode Button (Ports 1–8)
• PoE Auto Recovery Button (Ports 1–8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
OTHERS
Certification : FCC, CE, RoHS
Package Contents
• TL-SL1311P
• Power Adapter
• Installation Guide
Environment
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
