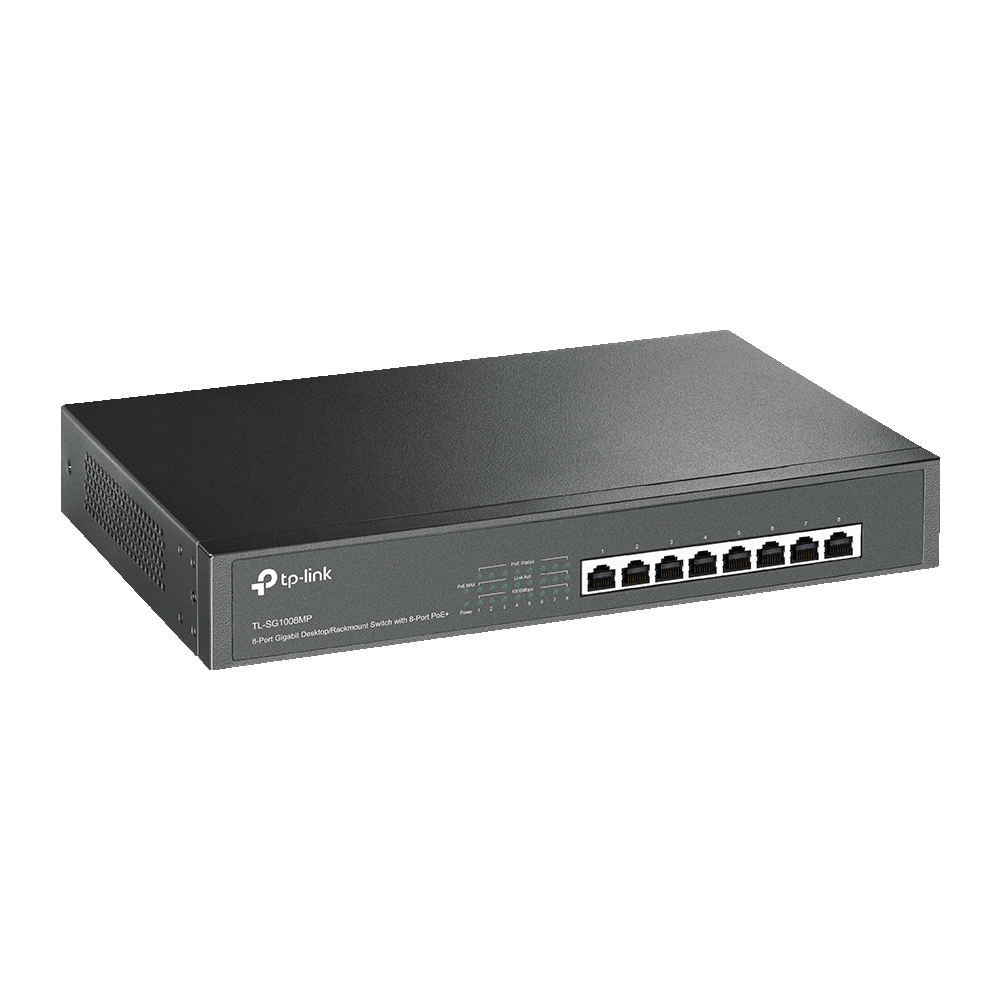

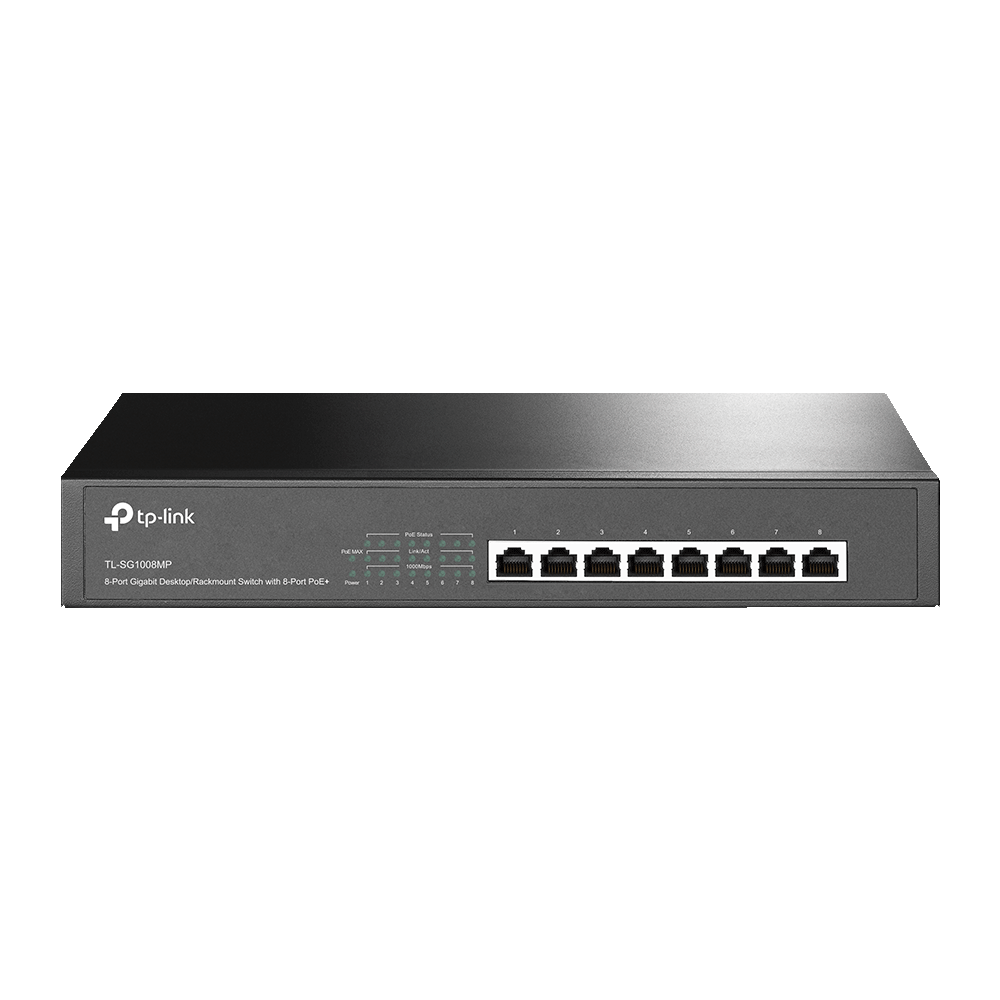

TP-LINK TL-SG1008MP 8-port Gigabit PoE+ Switch, 124W PoE power supply for all 8 PoE+ ports

 เพิ่มเมื่อ: 2019-09-13 18:15:14.0
 แก้ไขล่าสุด: 2022-05-30 15:14:49.0
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
TL-SG1008MP 8-port Gigabit PoE+ Switch, 124W PoE power supply for all 8 PoE+ ports, 1U 13-inch rack-mountable steel case(สินค้ารับประกันตลอดอายุการใช้งาน)
3500.00 บาท

ส่งอีเมลล์ให้เพื่อน

 TP-LINK TL-SG1008MP

TL-SG1008MP 8-port Gigabit PoE+ Switch, 124W PoE power supply for all 8 PoE+ ports, 1U 13-inch rack-mountable steel case

- 8 10/100/1000Mbps RJ45 ports

- Equipped with 8 PoE+ supported ports to transfer data and power over a single cable

- Works with IEEE 802.3af/at compliant devices, expanding home and office networks

- Innovative energy-efficient technology reduces power consumption by up to 75%*

- Supports PoE+ standard with total power budget of 126W and up to 30W per port

- Plug and play design, no configuration required



HARDWARE FEATURES

Interface

- 8 10/100/1000Mbps RJ45 Ports

- AUTO Negotiation/AUTO MDI/MDIX

Network Media

- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

- EIA/TIA-568 100Ω STP (maximum 100m)

- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

- EIA/TIA-568 100Ω STP (maximum 100m)

- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

- EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

- 1

Physical Security Lock

- No

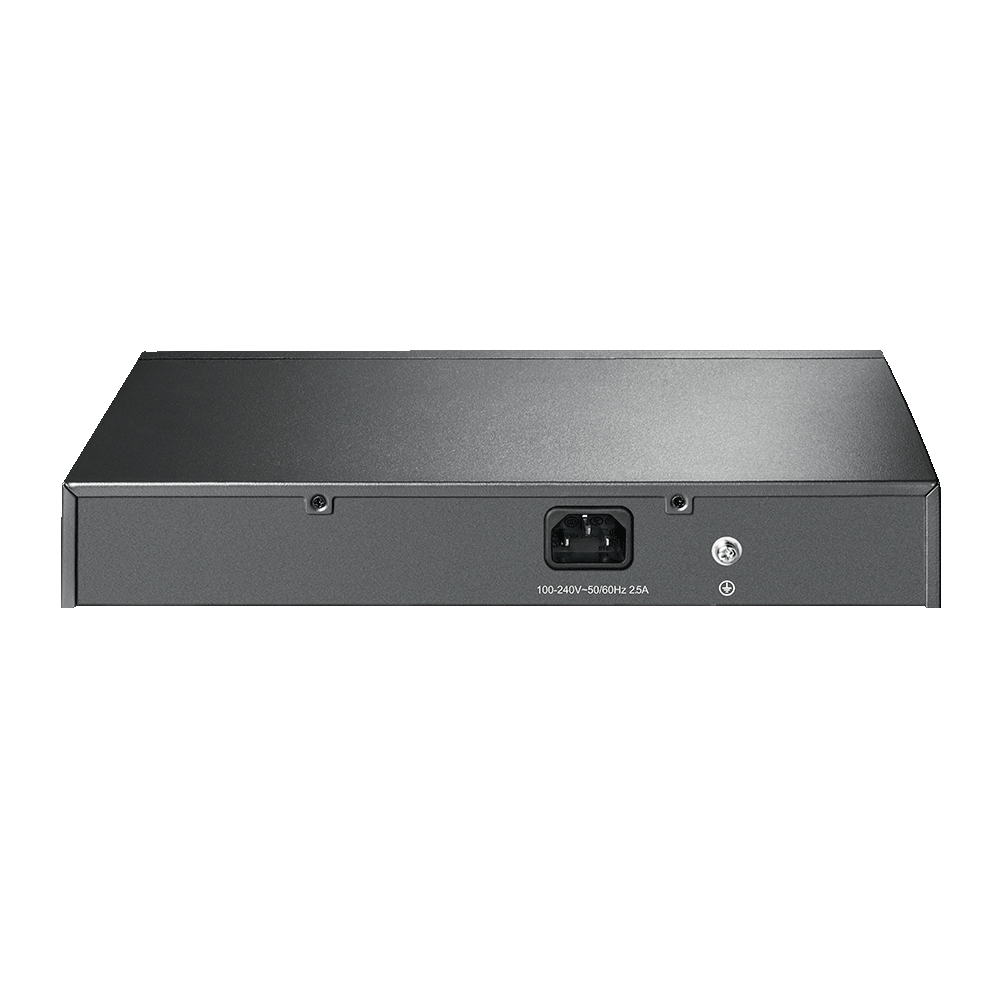

Power Supply

- 100-240VAC, 50/60Hz

PoE+ Ports(RJ45)

- Standard: 802.3at/af compliant

- PoE+ Ports: 8 Ports

- Power Supply: 126W

Backbound Bandwidth

- 16Gbps

Mac Address Table

- 4K

Buffer Size

- 1.5Mbits

Dimensions ( W x D x H )

- 11.6*7.1*1.7 in. (294*180*44 mm)

Mounting

- Rack Mountable

Max Power Consumption

- 9.89W(220V/50Hz. no PD connected)

- 140.67W(110V/60Hz. with 126W PD connected)

Max Heat Dissipation

- 33.74BTU/h(no PD connected)

- 492.56BTU/h(with 126W PD connected)

SOFTWARE FEATURES

Advanced Features

- Compatible With IEEE 802.3af/at Compliant PDs

- Priority Function

- Mac Address Auto-Learning And Auto-Aging

- IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

Transfer Method

- Store-And-Forward

OTHERS

Certification

- FCC, CE, RoHS

Package Contents

- TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet

Environment

- Operating Temperature: 0℃~40℃ (32℉~104℉)

- Storage Temperature: -40℃~70℃ (-40℉~158℉)

- Operating Humidity: 10%~90% non-condensing

- Storage Humidity: 5%~90% non-condensing
