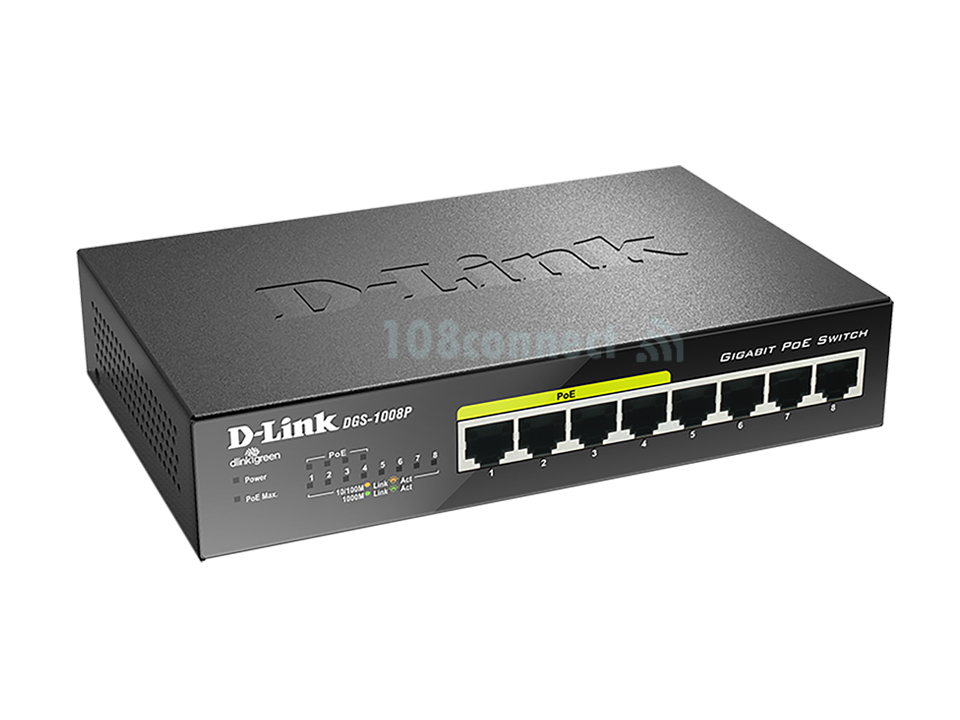

D-LINK DGS-1008P 8‑Port Gigabit PoE Unmanaged Desktop Switch
เพิ่มเมื่อ: 2019-07-22 18:07:57.0
แก้ไขล่าสุด: 2019-11-23 14:27:06.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comDGS-1008P 8-port UTP 802.3af PoE & 802.3at PoE+ 10/100/1000Mbps Unmanaged Switch (Port 1-4 * Up to 30W, Power Budget : 68W, C1, D-Link Green Ethernet & Energy Efficient Ethernet (สินค้ารับประกันตลอดอายุการใช้งาน)
D-LINK DGS-1008P
DGS-1008P 8-port UTP 802.3af PoE & 802.3at PoE+ 10/100/1000Mbps Unmanaged Switch (Port 1-4 * Up to 30W, Power Budget : 68W, C1, D-Link Green Ethernet & Energy Efficient Ethernet
- 8x Gigabit Ethernet ports (4x PoE+ ports)
- 68W power budget
- 16 Gbps switching fabric capacity
- Plug & play simplicity for easy installation
Key Features
- 8 10/100/1000 Mbps Gigabit Ports
- Auto MDI/MDIX Crossover for all ports
- Store-and-forward Switching Scheme
Full/half-duplex for Ethernet/Fast Ethernet Speeds
- IEEE 802.3x Flow Control
- Plug-and-play Installation
- Built-in D-link Green Technology
- RoHS Compliant
- IEEE 802.1p QoS (4 Queues, Strict Mode)
- Supports Cable Diagnostics
- Supports 9720 KBytes Jumbo Frames
Switching Capacity
- 16 Gbps
Standards
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- ANSI/IEEE 802.3 NWay Auto-negotiation
- IEEE 802.3x Flow Control
- IEEE 802.1p QoS
POE Features
- Supports IEEE 802.3af
- Supplies power to PD: up to 15.4 Watts
- Total PoE budget: 52 Watts
- PoE port count/Average PoE watts per port: 4 (Port 1 - 4) / 13 Watts
Data Transfer Rates
- Ethernet: 10 Mbps (half duplex) ,20 Mbps (full duplex)
Topology
- Star
Media Interface Exchange
- Auto MDI/MDIX adjustment for all ports
Network Cables
- 10BASE-T: UTP CAT 3/4/5/5e (100 m max.) ,EIA/TIA-586 100-ohm STP (100 m max.)
- 100BASE-TX, 1000BASE-T: UTP CAT 5/5e (100 m max.)
- EIA/TIA-568 100-ohm STP (100 m max.)
LED Indicators
- Per port: Link/Activity/Speed/PoE
- Status Per device: Power/PoE Max
Transmission Method
- Store-and-forward
Mac Address Table
- 4K Entries per device
Mac Address Learning
- Automatic update
Packet Filtering/Forwarding Rates
- Ethernet: 14,880 pps per port
- Fast Ethernet: 148,800 pps per port
- Gigabit Ethernet: 1,488,000 pps per port
Ram Buffer
- 192 KBytes per device
