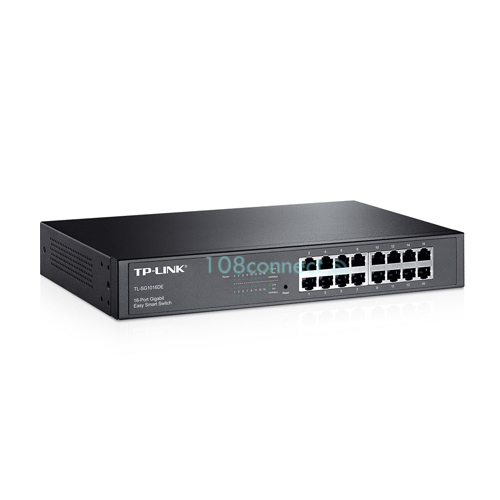

TP-LINK TL-SG1016DE JetStream 16-Port Smart Gigabit Switch

 เพิ่มเมื่อ: 09/03/2017
 แก้ไขล่าสุด: 06/05/2019
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
TL-SG1016DE JetStream 16-Port Smart Gigabit Switch(สินค้ารับประกัน ตลอดอายุการใช้งาน)
3,590.00 บาท

TP-LINK TL-SG1016DE

TL-SG1016DE JetStream 16-Port Smart Gigabit Switch

 - Sixteen (16) 10/100/1000Mbps ports provide instant large file transfers.

- Innovative energy-efficient technology reduces power consumption by up to 40%.

- IEEE 802.3x flow control provides reliable data transfers.

- 10K Jumbo frame improves performance of large data transfers.

- Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics.

- Port and tag-based QoS enable smooth latency-sensitive traffic.

- Abundant VLAN features improve network security via traffic segmentation.

- IGMP Snooping optimizes multicast applications.



Hardware Features

- Standards and Protocols

         - IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

- Interface

         - 16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX

         - Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

           EIA/TIA-568 100Ù STP(maximum 100m)

         - 100BASE-TX: UTP category 5, 5e cable (maximum 100m EIA/TIA-568 100Ù STP

          (maximum 100m)

         - 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

           EIA/TIA-568 100Ù STP(maximum 100m)

- Dimensions (W X D X H)

         - 11.6*7.1*1.7 in. (294*180*44 mm)

- Fan Quantity

         - Fanless

- Power Supply

         - 100-240VAC, 50/60Hz



Performance

- Switching Capacity

         - 32Gbps

- MAC Address Table

         - 8K

- Packet Buffer Memory

         - 512KB

- Packet Forwarding Rate

         - 23.8Mpps

- Jumbo Frame

         - 10240Bytes



Software Features

- Quality of Service Support Port Based/802.1p Based priority

- Support 4 priority queues

- Rate Limit

- Storm Control

- L2 Features IGMP Snooping

- Link Aggregation

- Port Mirroring

- Cable Diagnostics

- Loop Prevention

- VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

- MTU/Port/Tag VLAN

- Transmission Method Store-And-Forward



Certification

- FCC, CE, RoHS



Package Contents

- TP-LINK TL-SG1016DE Jetstream Switch

- Power Cord

- Installation Guide

- Resource CD

- Rackmount Kit

- Rubber Feet



System Requirements

- Microsoft Windows 98SE, NT, 2000, XP, Vista Windows 7 or Windows 8, MAC OS, NetWare

  UNIX or Linux.



Environment

- Operating Temperature: 0C~40C (32F~104F)

- Storage Temperature: -40C~70C (-40F~158F)

- Operating Humidity: 10%~90% non-condensing

- Storage Humidity: 5%~90% non-condensing
