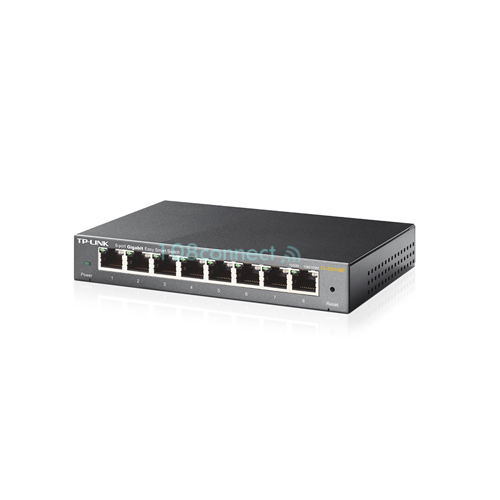

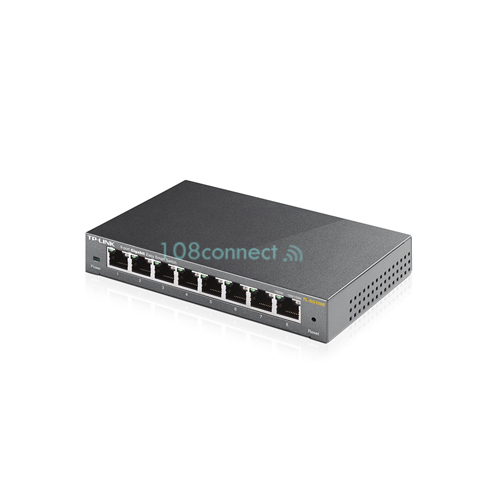

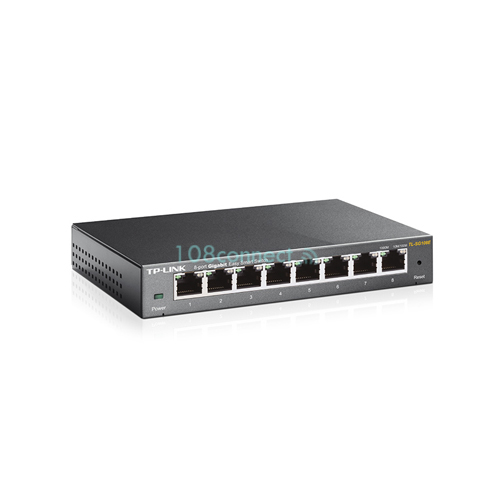

TP-LINK TL-SG108E 8-Port Smart Desktop Gigabit Switch

 เพิ่มเมื่อ: 09/03/2017
 แก้ไขล่าสุด: 06/05/2019
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
TL-SG108E 8-Port Gigabit Desktop Easy Smart Switch, 8 10/100/1000Mbps RJ45 ports, MTU/Port/Tag-based VLAN, QoS, IGMP Snooping(สินค้ารับประกัน ตลอดอายุการใช้งาน)
1,490.00 บาท

TP-LINK TL-SG108E

TL-SG108E 8-Port Gigabit Desktop Easy Smart Switch, 8 10/100/1000Mbps RJ45 ports, MTU/Port/Tag-based VLAN, QoS, IGMP Snooping

- Eight (8) 10/100/1000 Gigabit Ethernet RJ45 ports.

- Provides network monitoring, traffic prioritisation and VLAN features.

- Innovative energy-efficient technology reduces power output by up to 80%.

- Simple network set-up on top of plug-and-play connectivity.

- Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility.



Standards and Protocols

- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p



Interface

- 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX



Network Media

- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

- EIA/TIA-568 100O STP (maximum 100m)

- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

- EIA/TIA-568 100O STP (maximum 100m)

- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

- EIA/TIA-568 100O STP (maximum 100m)



Fan Quantity

- Fanless



Dimensions

- (W X D X H) 6.2*4.0*1.0 in. (158*101*25 mm)



Power Supply

- 100-240VAC, 50/60Hz



Performance

- MAC Address Table 8K

- Packet Buffer Memory 2Mb

- Packet Forwarding Rate 11.9Mpps

- Jumbo Frame 16KB



Software Features

- Quality of Service Support Port Based/802.1p Based priority

- Support 4 priority queues

- Rate Limit

- Storm Control

- L2 Features IGMP Snooping

- Link Aggregation

- Port Mirroring

- Cable Diagnostics

- Loop Prevention

- LAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

- MTU/Port/Tag VLAN

- Transmission Method Store-And-Forward



Certification

- FCC, CE, RoHS



Package Contents

- TP-LINK TL-SG108E Switch

- Power Cord

- Installation Guide

- Resource CD

- Rubber Feet



System Requirements

- Microsoft Windows XP, Vista Windows 7 or Windows 8, MAC OS, etWare, UNIX or Linux.



Environment



- Operating Temperature: 0C~40C (32F~104F)

- Storage Temperature: -40C~70C (-40~158F)

- Operating Humidity: 10%~90% non-condensing

- Storage Humidity: 5%~90% non-condensing
