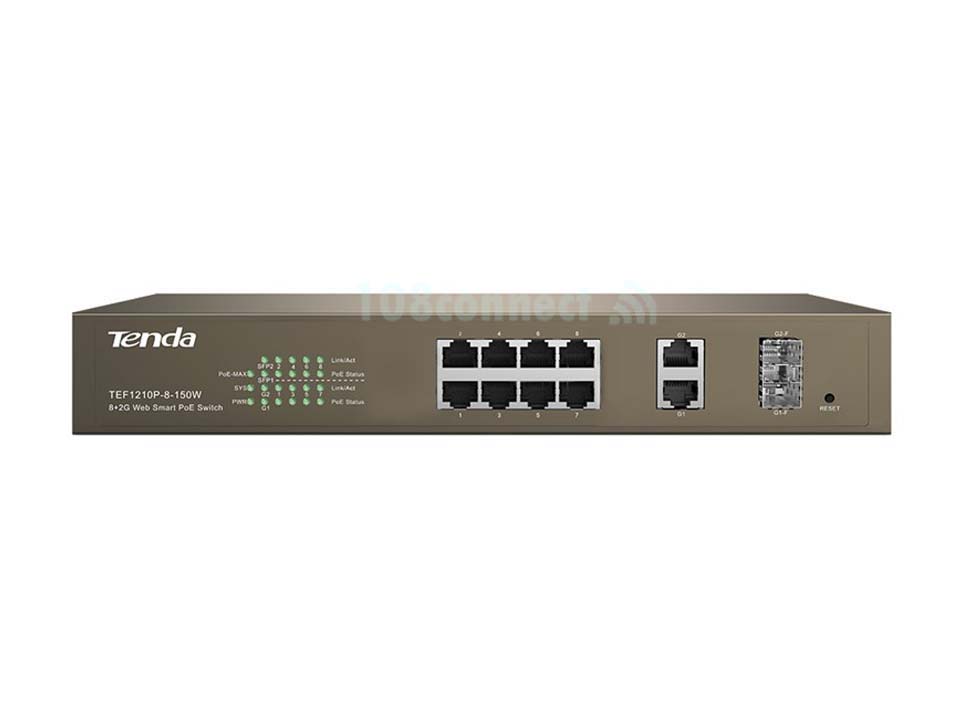

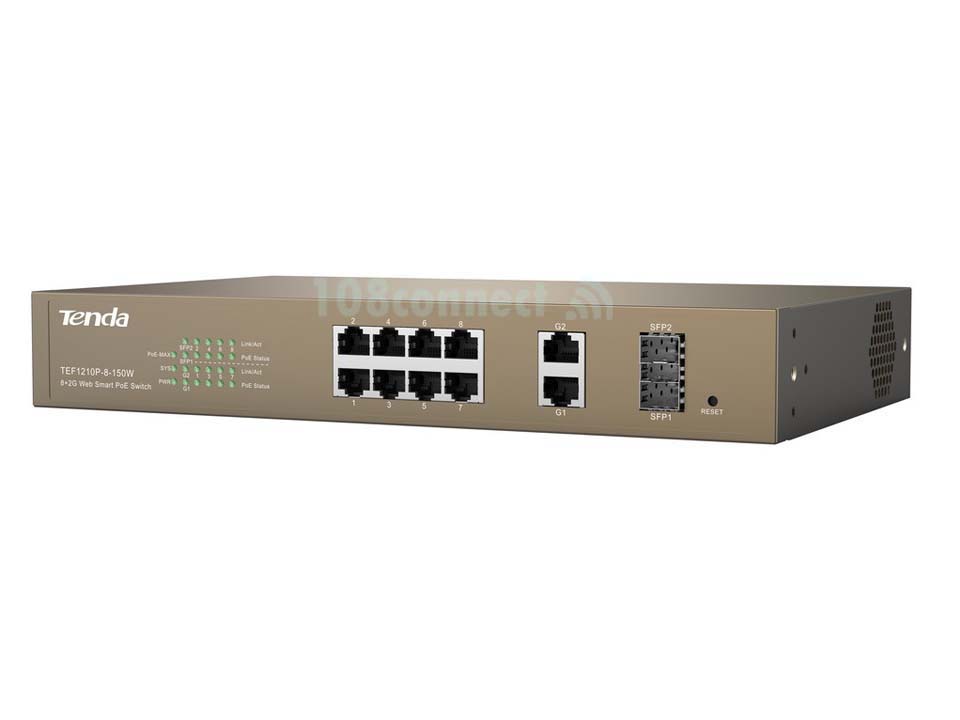

TENDA TEF1210P-8-150W 8-Port 10/100M + 2-Port Gigabit TP/SFP Combo PoE Web Smart Switch

 เพิ่มเมื่อ: 2019-08-15 15:20:35.0
 แก้ไขล่าสุด: 2019-09-16 14:18:13.0
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
TEF1210P-8-150W 8-Port 10/100M + 2-Port Gigabit TP/SFP Combo PoE Web Smart Switch,Complies with IEEE 802.3 af/ at ,Supports PoE power up to 40W for PoE port,Maximum PoE Output (สินค้ารับประกัน 5 ปี)
5500.00 บาท

 TENDA TEF1210P-8-150W

TEF1210P-8-150W 8-Port 10/100M  + 2-Port Gigabit TP/SFP Combo  PoE Web Smart  Switch,Complies with IEEE 802.3 af/ at ,Supports PoE power up to 40W for PoE port,Maximum PoE  Output

Standard&Protocol

- IEEE 802.3、 IEEE 802.3u、IEEE 802.3z、IEEE 802.3ab、IEEE 802.3x、IEEE 802.1D、IEEE 802.1W

  IEEE 802.1Q、IEEE 802.3af、IEEE 802.3at

MTBF

- 100,000hours

Indicator

- Link/Act, PoE Status,System, Power,PoE Max

Interface

- Fixed Ports:8 10/100Base-TX ports

- 2 10/100/1000Base-T ports

- 2 1000Base-X SFP ports Combo)

- lightning protection:≥6KV

Performance

- Store and forward:Yes

- Exchange capacity:5.6 Gbit/s

- MAC address entries:4K MAC

Power

- Power supply module:Providing 8 ports under IEEE 802.3af(15.4W) or 4 ports under IEEE 802.3at(30W)

- PoE through pin:1 2 4 5 +,3 6 7 8 -

- Voltage input range:AC:100-240V~ 50/60Hz

Dimension

- 294mm*178.8mm*44mm(L×W×H)

Weight

- ≤5kg

Power Consumption

- <150W

- PoE consumption up to 130W

Temperature

- Perating temperature:0 ℃~40 ℃

- Storage temperature:-40 ℃~70 ℃

Humidity

- Operational:10%~95%(noncondensing)

- Storage:10%~95%(noncondensing)

PoE supply management

- Support setup of PoE

- Support power adjustable by priority

- Support over temperature protection for PoE module

VLAN

- Support VLAN(4K) based on ports

- Support 802.1QVLAN

Mirroring

- Support local mirror image

Link Aggregation

- Support LACP, manual link aggregation

- Support up to 6 link aggregation groups and up to 8 GE ports per group

QoS

- Support message transmission for ports and limitation of speed

- Support SP & WRR

Layer 2 ring network protocol

- Support STP/RSTP and looped Network for devices

Certification

- FCC/CE/RoHS
