TENDA TEG3224P 24 gigabit RJ45 ports including 4 combo RJ45/SFP ports, 1U 19-inch rack-mountable

 เพิ่มเมื่อ: 2018-09-13 12:28:00.0
 แก้ไขล่าสุด: 2019-07-30 12:33:26.0
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
TEG3224P 24 gigabit RJ45 ports including 4 combo RJ45/SFP ports, 1U 19-inch rack-mountable(สินค้ารับประกัน 5 ปี)
18900.00 บาท

 TENDA TEG3224P

TEG3224P 24 gigabit RJ45 ports including 4 combo RJ45/SFP ports, 1U 19-inch rack-mountable

- Support the whole network management, prevent ARP virus, IP/MAC deceit and Dos attacks

  802.1 X and MAC authentication

- 24 Gigabit+ 4 SFP can offer flexible port combination. PoE dynamic power supply

  port output power automatically matches PD equipment, it is energy saving and secured

- Support VCT cable diagnosis, it can locate fault point of illness faster

  more efficient to save time.



Specifications

Standard&Protocol
- IEEE 802.3,IEEE 802.3u,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1D,IEEE 802.3af,IEEE 802.3at



Layer 2 switch

- All ports support linear forward
- Packet forwarding speed: 35.7Mpps



MTBF
- ≥100 thousand hours



Store & Forward

- Yes



Switch Fabric
- 56Gbit/s



MAC Address Table
- 8K MAC
- Support set port MAC address learning maximum number



Fixed Port
- 24 10/100/1000Base-T ports (Data/PoE)
- 4 10/100/1000 Base-X SFP ports ( Combo)



Optional Module

SFP optical fiber module with single port



Power supply module
- Supply 24 RJ-45 802.3af(15.4W)/12 RJ-45 802.3at(30W)
- Power Pin Assignment: 1/2(+),3/6(-)



Input Voltage
- AC:176V~264V
- 50/60Hz



Dimension
- 440*284*44 (W x D x H mm)



Weight
- <5kg



Consumption
- Power consumption:<450W
- PoE Power Budget:370 Watts

Operation Temperature
- 0~45 Degree C



Operating Humidity
- 10%~95%(Non-condensing)



Port Trunking
- Support LACP
- Support manual polymerization
- 12 groups of port trunk support,up to 16 GE port per trunk group


PoE supply management
- PoE port setting and power priority supply setting
- PoE over temperature protection
- Smart graphical management and detection of PD equipment, (priority, port state, power allocation

PD equipment state) intelligent management power of PD equipment



Layer 2 ring network protocol
- Conform to STP/RSTP/MSTP
- Support equipment to prevent the loop



VLAN
- Support port-based VLAN(4K)、protocol-based VLAN Compliant with Voice VLAN
- VLAN Mapping、VLAN VPN(QinQ),flexible QinQ



DHCP
- DHCP Snooping、DHCP Relay/Client/Server

- DHCP Snooping Option82/DHCP Relay Option82



Multicast
- Support IGMP Snooping、multicast VLAN、IGMP V1/V2、PIM-SM/ PIM-DM/MSDP



Mirroring
- N:1 port mirror、flow mirror、RSPAN(Remote port mirror)



ACL

- Support L2 ~ L4 (Layer 4) packet filter function, supply source of based on MAC address

the destination MAC address, the source IP address, destination IP address, TCP/UDP port

number and protocol type VLAN and illegal frame filtering Support based on



QoS
- Support for the rate at which port to receive a message and send a message to limit the speed
- Support message to redirect, the function of the CAR
- Support 8 port output queue
- Support port queue scheduling (SP,WRR)
- Support port queue scheduling (SP,WRR)

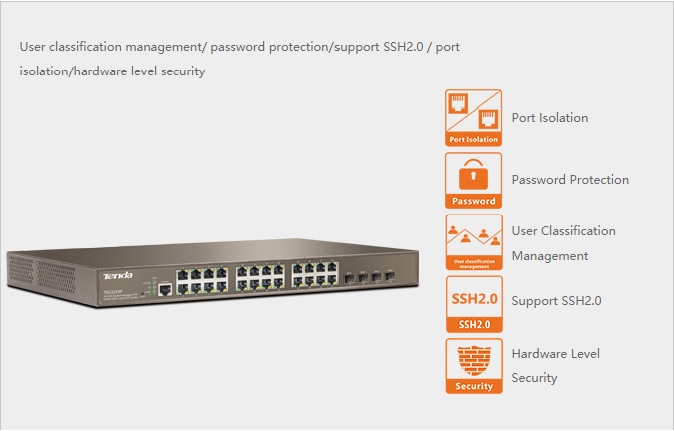

Security
- User classification management,and password protection
- IEEE 802.1 X authentication
- Centralized MAC address authentication

- Protection of the ARP,IP source address intrusion detection
- Support SSH2.0, port isolation



Management
 - XModem/FTP/TFTP load to upgrade
 - Support command line interface (CLI), Telnet, the configurations of the Console port
 - Support the SNMP v1 / v2, v3 and WEB network management
 - Support RMON (Remote Monitoring) 1,2,3,9 group MIB
 - Support system logs, hierarchic
