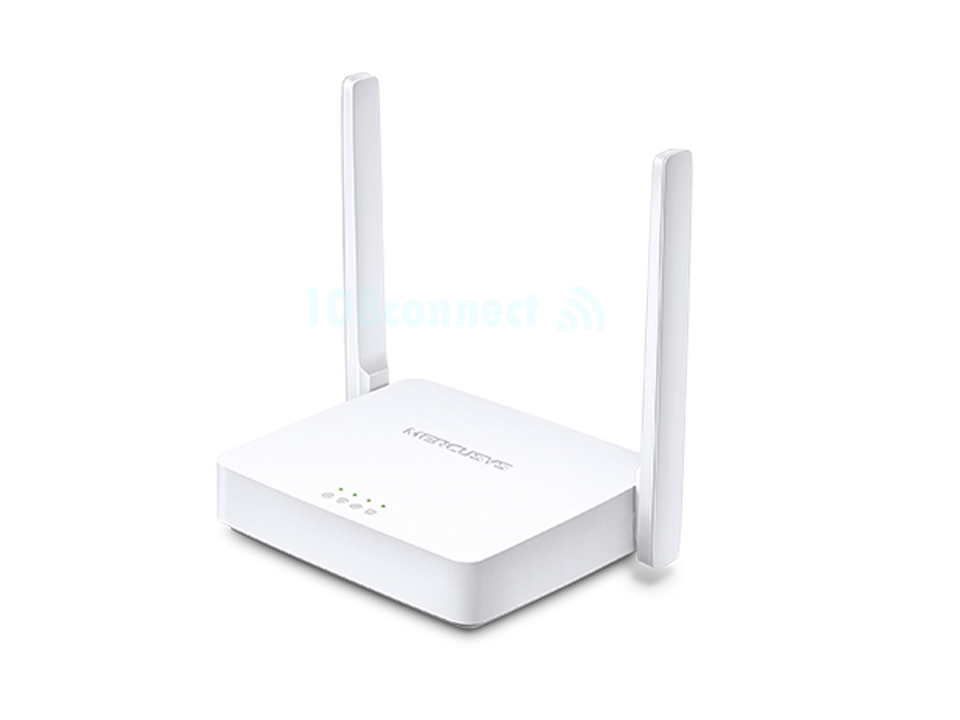

MERCUSYS MW301R 300Mbps Wireless N Router
เพิ่มเมื่อ: 2019-06-23 13:11:15.0
แก้ไขล่าสุด: 2020-10-14 11:52:34.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comMW301R 300Mbps Wireless N Router 2 x 5dBi fixed omni directional antennas (สินค้ารับประกัน 1 ปี)
MERCUSYS MW301R
MW301R 300Mbps Wireless N Router 2 x 5dBi fixed omni directional antennas
- รองรับคลื่นความถี่ 2.4GHz Wireless N 300 Mbps
- เสาสัญญาณขนาด 5dBi จำนวน 2 เสา
- 1 ช่องแวน (WAN) 10/100 Mbps และ 2 ช่องแลน (LAN) 10/100 Mbps
Features
- 300Mbps wireless transmission rate is ideal for basic work
- Two 5dBi antennas provides broad wireless coverage
- Intuitive webpage guides you through the setup process in minutes
Protocols
- IPv4, IPv6
Dimensions (W X D X H)
- 135.77x93.31x25.85mm
External Power Supply
- 5VDC/0.6A
Antenna Type
- 2 x 5dBi fixed omni directional antennas
Signal Rate
- 11n: Up to 300Mbps (Dynamic)
- 11g: Up to 54Mbps (Dynamic)
- 11b: Up to 11Mbps (Dynamic)
Button
- RESET
Wireless Standards
- IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
- 2.4 - 2.4835GHz
Reception Sensitivity
- 270M: -70dBm@10% PER
- 130M: -74dBm@10% PER
- 108M: -77dBm@10% PER
- 54M: -76dBm@10% PER
- 11M: -90dBm@8% PER
- 6M: -92dBm@10% PER
- 1M: -97dBm@8% PER

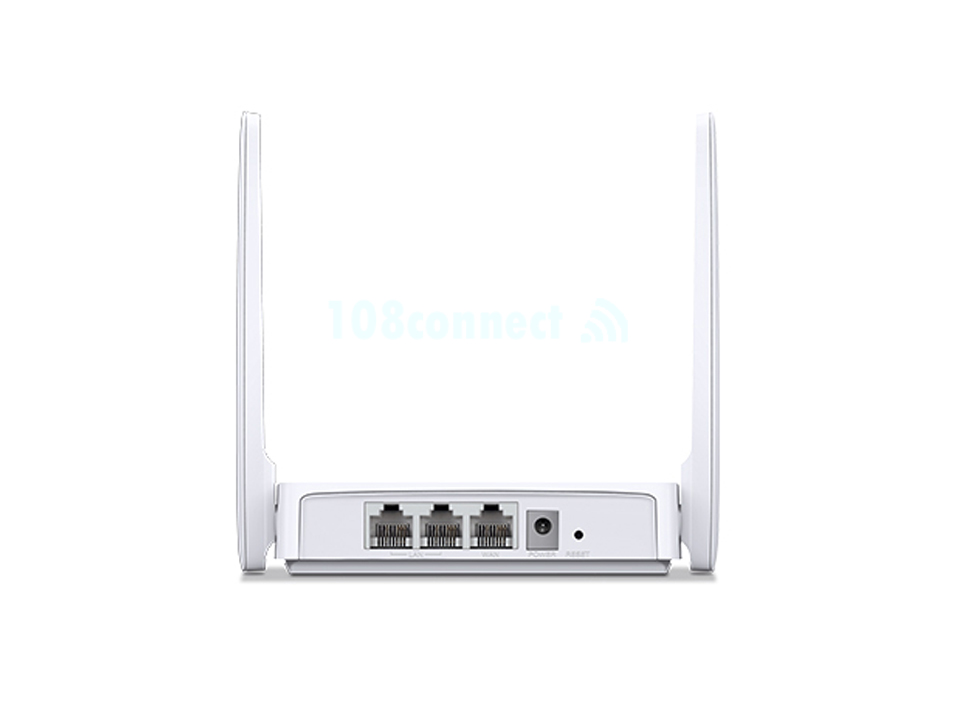

Interfaces
- 2 10/100Mbps LAN ports
- 1 10/100Mbps WAN port
Certifications
- CE, ROHS

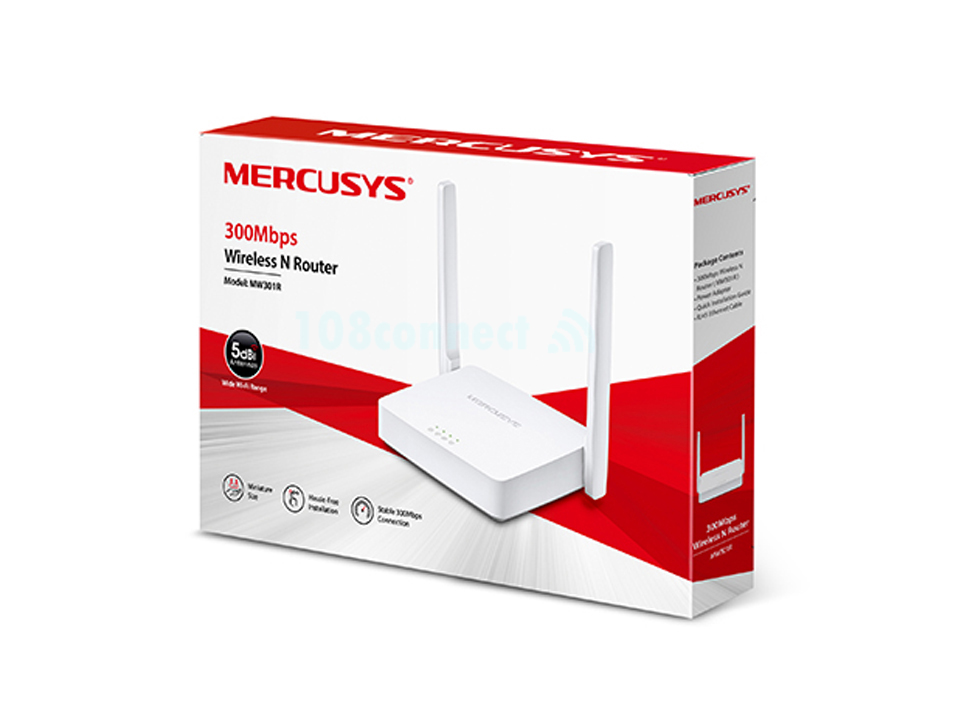

Package Contents
- 300Mbps Wireless N Router
- MW301R
- Power adapter
- Quick Installation Guide
- Ethernet cable
Environment
- Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)
- Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)
- Operating humidity: 10% ~ 90%, non-condensing
- Storage humidity: 5% ~ 90%, non-condensing
Transmission Power
- <20dBm
Wireless Security
- 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Wireless Functions
- WDS bridge
WAN Type
- Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
- Parental Control
- Access control
- Local management
- Remote management
DHCP
- Server
Port Forwarding
- Virtual server, UPnP, DMZ
Dynamic DNS
- DynDNS、NO-IP
Firewall Security
- IP and MAC address binding
Guest Network
- 2.4GHz guest network
